Article no.: F032130109

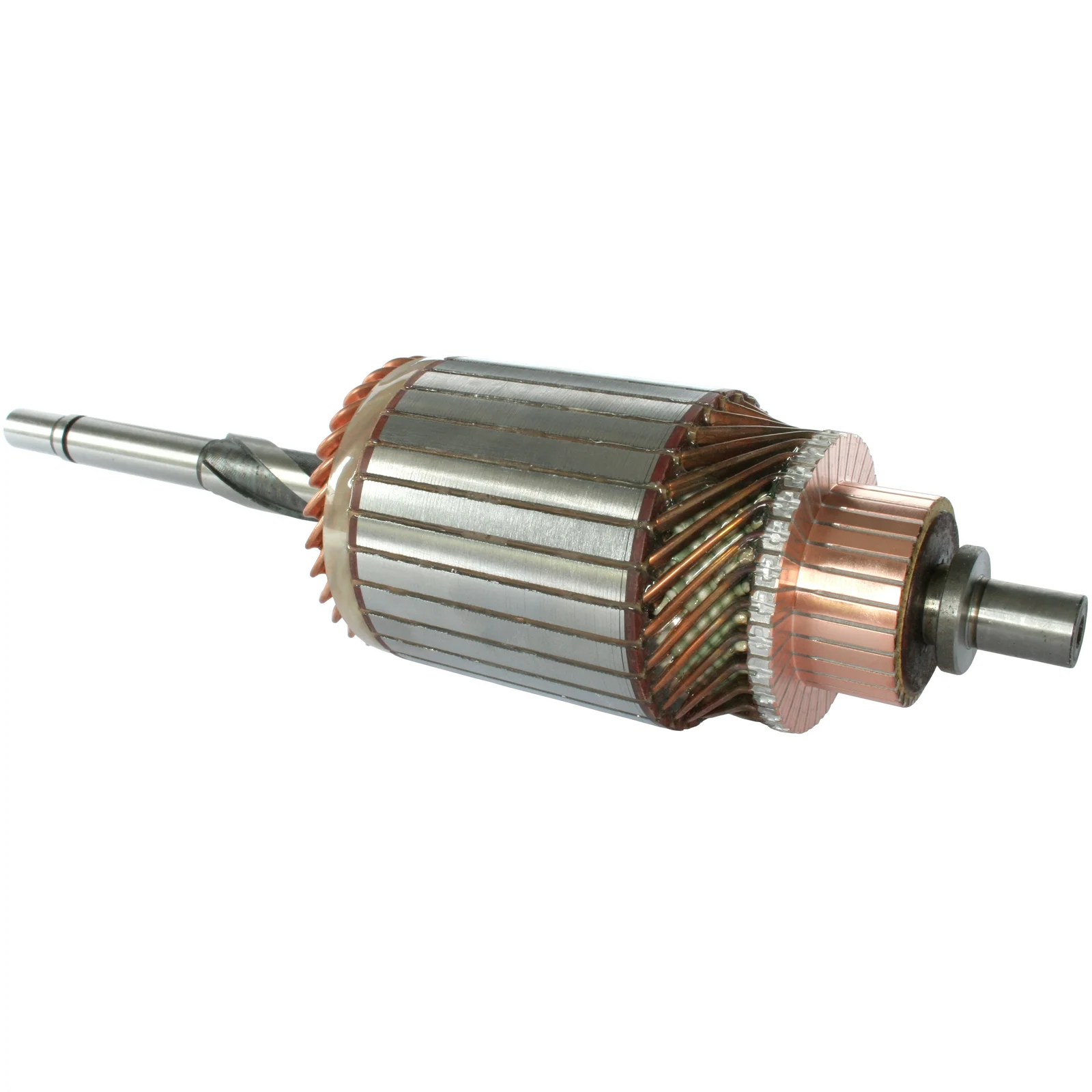

Armature / Rotor

Technical info:

Voltage: 12, kW: 1.4, Rotation: N/A, Core diameter: 73.00

Description

Voltage: 12
kW: 1.4
Core diameter: 73.00
Shaft diameter / Center end: 14.00
Shaft diameter / Drive end inside: 14.15
Shaft diameter / Drive end outside: 12.50
Shaft diameter: 18.85
Shaft length: 300.00
Number / splines: 3
Rotation: N/A
Distributor / Armature: 27.40
Commutator diameter / Bar lane: 42.00
Height / Bar lane: 21.70
Number / bars: 29
Remarks: 9 V: HC-CARGO 133084.

Files

  • OEM
    F032130109, 2004004012, 2004004020, 2004004041, 2004004042, 2004004043, 2004004044

  • Normalised article numbler
    f032130109, wsa1856, wsa582, 619115, 2004004012, 2004004020, 2004004041, 2004004042, 2004004043, 2004004044
  • Description
    Voltage: 12
    kW: 1.4
    Core diameter: 73.00
    Shaft diameter / Center end: 14.00
    Shaft diameter / Drive end inside: 14.15
    Shaft diameter / Drive end outside: 12.50
    Shaft diameter: 18.85
    Shaft length: 300.00
    Number / splines: 3
    Rotation: N/A
    Distributor / Armature: 27.40
    Commutator diameter / Bar lane: 42.00
    Height / Bar lane: 21.70
    Number / bars: 29
    Remarks: 9 V: HC-CARGO 133084.

    Files

  • Suitable for these vehicles

    • OEM
      F032130109, 2004004012, 2004004020, 2004004041, 2004004042, 2004004043, 2004004044

    • Normalised article numbler
      f032130109, wsa1856, wsa582, 619115, 2004004012, 2004004020, 2004004041, 2004004042, 2004004043, 2004004044
