Article no.: F032130110

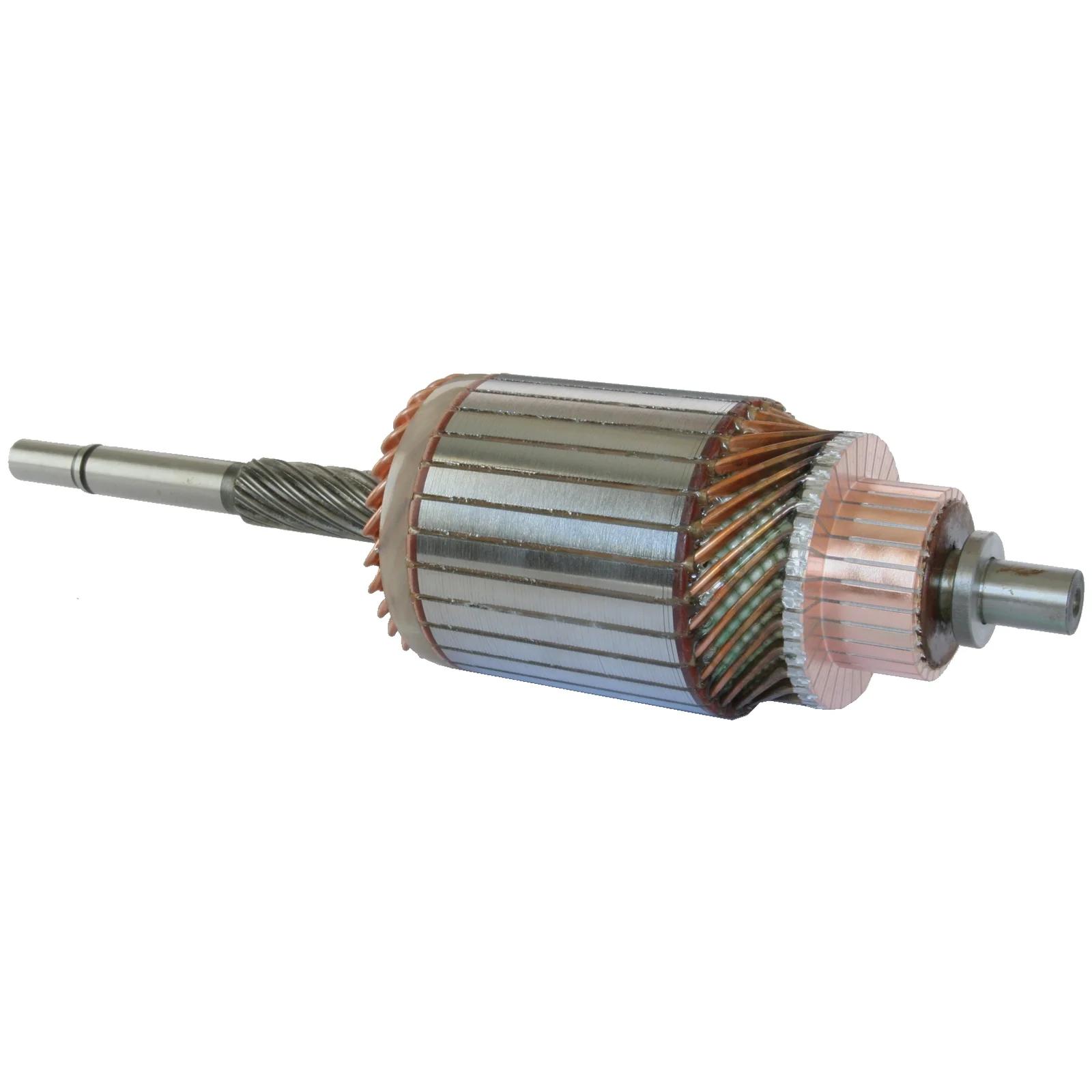

Armature / Rotor

Technical info:

Voltage: 12, kW: 1.8, Rotation: CW, Core diameter: 73.00

Description

Voltage: 12
kW: 1.8
Core diameter: 73.00
Shaft diameter / C.E.: 14.00
Shaft diameter / D.E. inside: 14.15
Shaft diameter / D.E. outside: 12.50
Shaft diameter: 18.85
Shaft length: 300.00
Number / splines: 10
Rotation: CW
Distance / armature: 26.90
Commutator diameter / bar lane: 42.20
Height / bar lane: 19.60
Number / bars: 29
Remarks: 9 V: HC-CARGO 133085.

Files

  • Description
    Voltage: 12
    kW: 1.8
    Core diameter: 73.00
    Shaft diameter / C.E.: 14.00
    Shaft diameter / D.E. inside: 14.15
    Shaft diameter / D.E. outside: 12.50
    Shaft diameter: 18.85
    Shaft length: 300.00
    Number / splines: 10
    Rotation: CW
    Distance / armature: 26.90
    Commutator diameter / bar lane: 42.20
    Height / bar lane: 19.60
    Number / bars: 29
    Remarks: 9 V: HC-CARGO 133085.

    Files

  • Suitable for these vehicles
