Article no.: F032130113

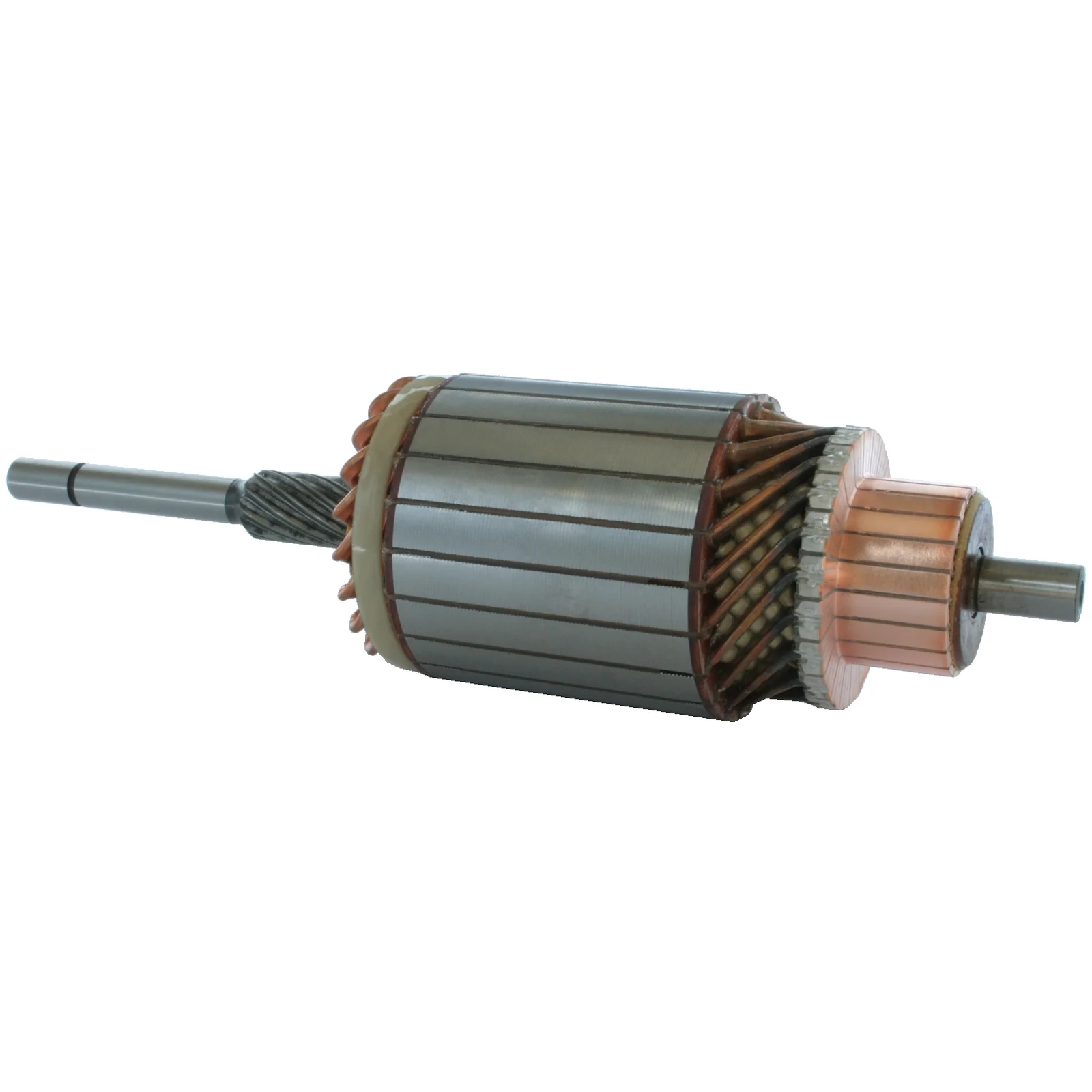

Armature / Rotor

Technical info:

Voltage: 12, kW: 2.4, Rotation: CW, Core diameter: 75.00

Description

Voltage: 12
kW: 2.4
Core dia.: 75.00
Shaft dia./C.E.: 12.50
Shaft dia./D.E. inside: 12.00
Shaft dia./D.E. outside: 12.00
Shaft dia.: 18.90
Shaft length: 282.00
No./splines: 10
Rotation: CW
Dist./commutator: 22.40
Commutator dia./bar lane: 43.00
Bar dist.: 3.45
Bar cross dist.: 42.50
Height/bar lane: 23.00
No./bars: 21
Remarks: 9 V: HC-CARGO 131933.

Files

  • Description
    Voltage: 12
    kW: 2.4
    Core dia.: 75.00
    Shaft dia./C.E.: 12.50
    Shaft dia./D.E. inside: 12.00
    Shaft dia./D.E. outside: 12.00
    Shaft dia.: 18.90
    Shaft length: 282.00
    No./splines: 10
    Rotation: CW
    Dist./commutator: 22.40
    Commutator dia./bar lane: 43.00
    Bar dist.: 3.45
    Bar cross dist.: 42.50
    Height/bar lane: 23.00
    No./bars: 21
    Remarks: 9 V: HC-CARGO 131933.

    Files

  • Suitable for these vehicles
