Article no.: F032130114

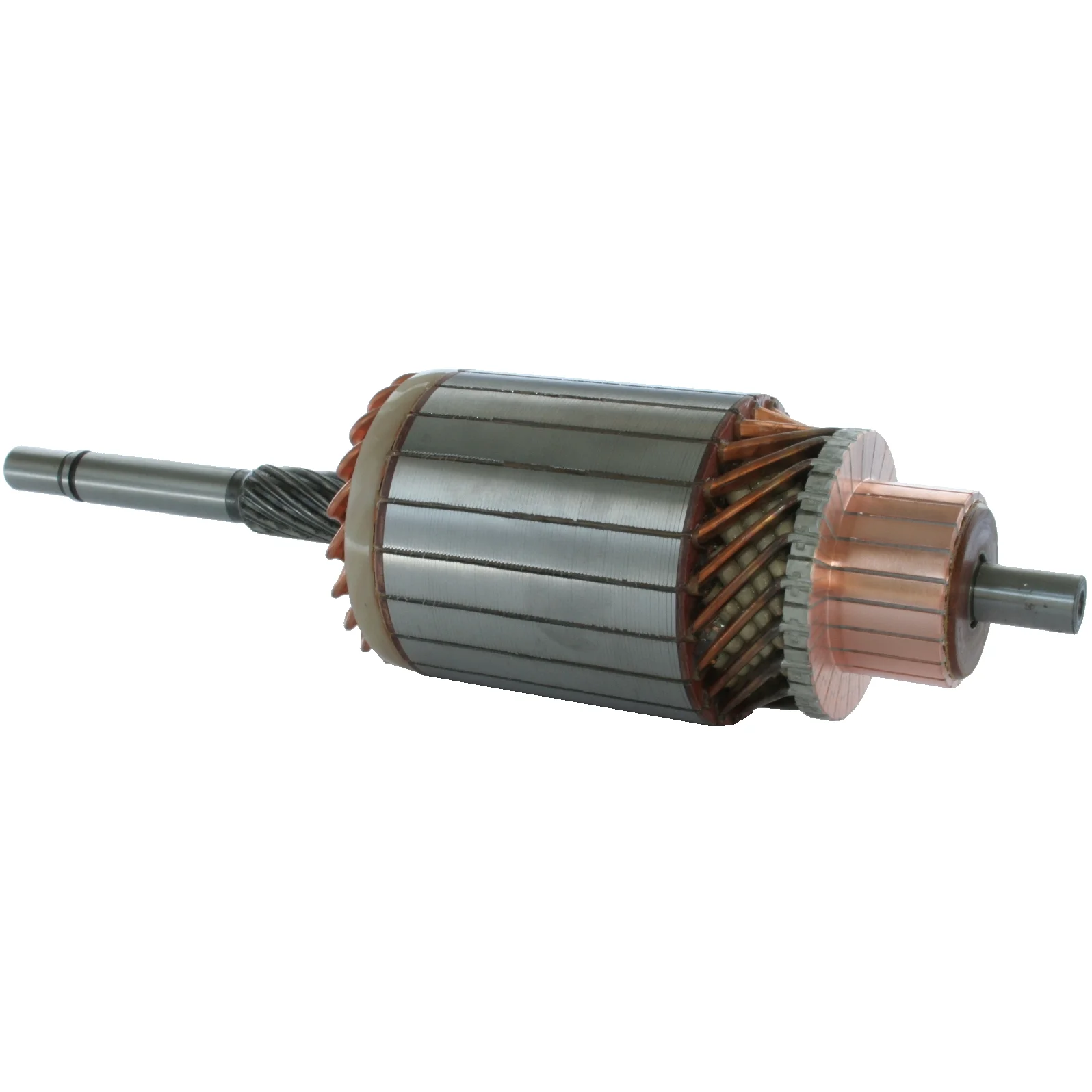

Armature / Rotor

Technical info:

Voltage: 12, kW: 2.4, Rotation: CW, Core diameter: 75.00

Description

Voltage: 12
kW: 2.4
Core diameter: 75.00
Shaft diameter / C.E.: 12.50
Shaft diameter / D.E. inside: 14.10
Shaft diameter / D.E. outside: 12.40
Shaft diameter: 18.85
Shaft length: 288.00
Number / splines: 10
Rotation: CW
Distance / commutator: 21.40
Commutator diameter / bar lane: 43.00
Bar distance: 3.45
Bar cross distance: 42.50
Height / bar lane: 23.00
Number / bars: 21
Remarks: 9 V: HC-CARGO 133086.
