Article no.: F032130116

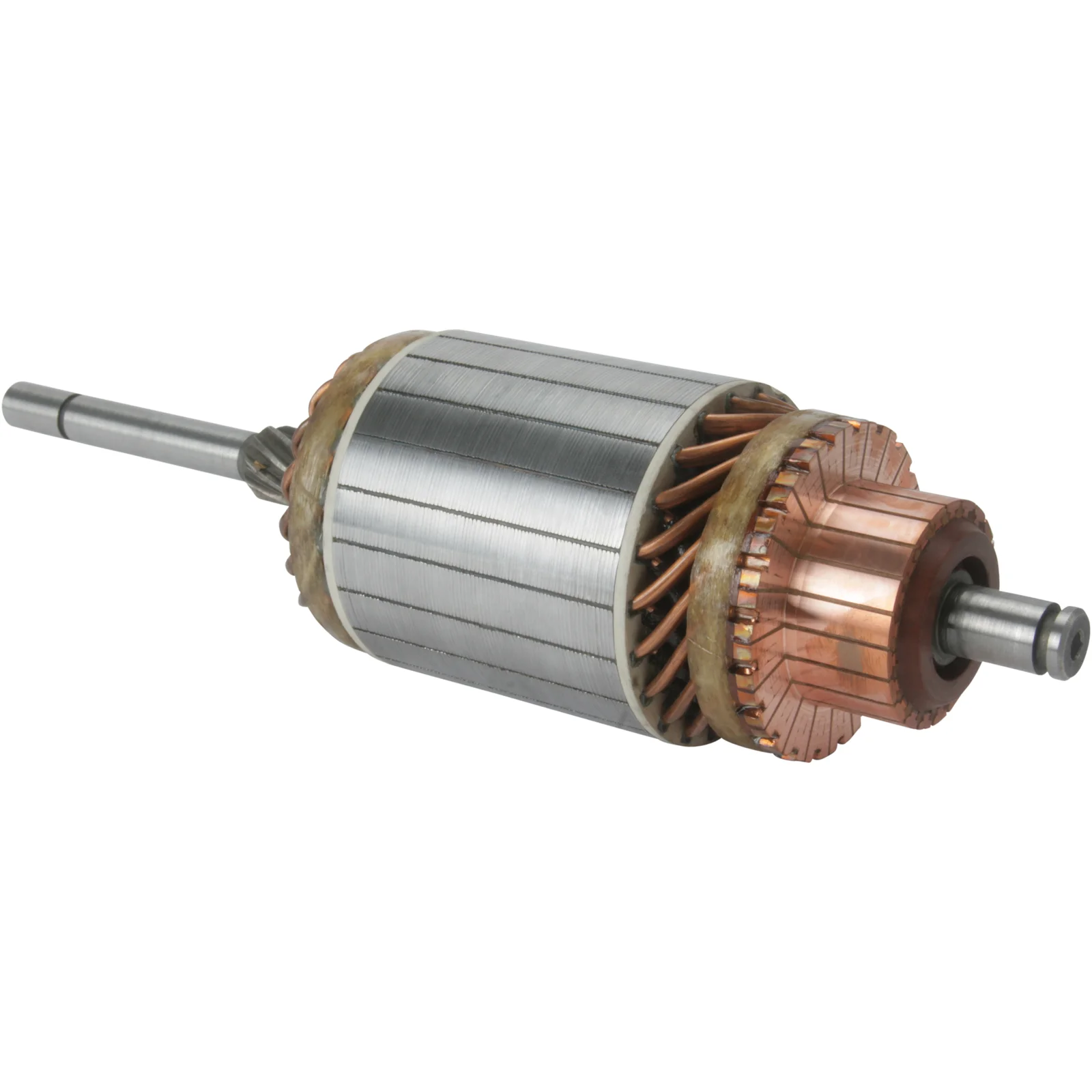

Armature / Rotor

Technical info:

Voltage: 12, kW: 2.0, Rotation: CW, Core dia.: 75.00

Description

Voltage: 12
kW: 2.0
Core diameter: 75.00
Shaft diameter / Center End (C.E.): 14.00
Shaft diameter / Drive End (D.E.) inside: 12.00
Shaft diameter / Drive End (D.E.) outside: 12.00
Shaft diameter: 18.85
Shaft length: 285.00
Number / splines: 10
Rotation: clockwise
Distance / commutator: 23.30
Commutator diameter / bar lane: 42.80
Bar distance: 3.60
Bar cross distance: 42.30
Height / bar lane: 22.50
Number / bars: 21
Remarks: 9 V: HC-CARGO 131934.
