Article no.: F032130117

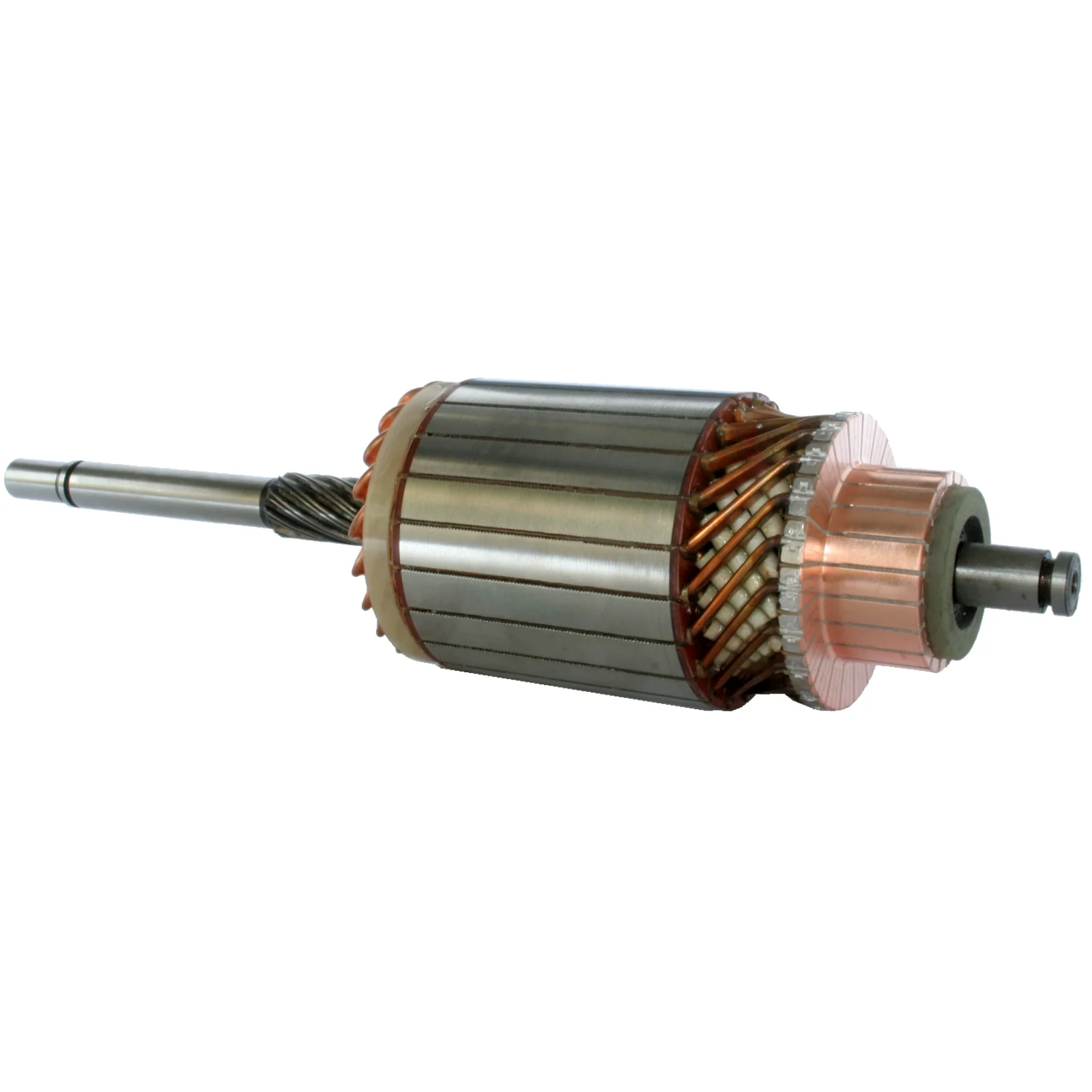

Armature / Rotor

Technical info:

Voltage: 12, kW: 2.4/2.7, Rotation: CW, Core dia.: 75.00

Description

Voltage: 12
kW: 2.4/2.7
Core diameter: 75.00
Shaft diameter / C.E.: 14.00
Shaft diameter / D.E. inside: 14.15
Shaft diameter / D.E. outside: 12.50
Shaft diameter: 18.85
Shaft length: 312.00
Number / splines: 10
Rotation: CW
Dist./armature: 23.30
Commutator diameter / bar lane: 42.80
Bar distance: 3.60
Bar cross distance: 42.30
Height / bar lane: 22.50
Number / bars: 21
Remarks: 9 V: HC-CARGO 133088.

Files

  • OEM
    F032130117, 2004004076, 2004004091, 2004004094, 2004004096, 2004014053, 2004014953

  • Normalised article numbler
    f032130117, sa0072, wsa5881, 619121, 619123, 2004004076, 2004004091, 2004004094, 2004004096, 2004014053, 2004014953
  • Description
    Voltage: 12
    kW: 2.4/2.7
    Core diameter: 75.00
    Shaft diameter / C.E.: 14.00
    Shaft diameter / D.E. inside: 14.15
    Shaft diameter / D.E. outside: 12.50
    Shaft diameter: 18.85
    Shaft length: 312.00
    Number / splines: 10
    Rotation: CW
    Dist./armature: 23.30
    Commutator diameter / bar lane: 42.80
    Bar distance: 3.60
    Bar cross distance: 42.30
    Height / bar lane: 22.50
    Number / bars: 21
    Remarks: 9 V: HC-CARGO 133088.

    Files

  • Suitable for these vehicles

    • OEM
      F032130117, 2004004076, 2004004091, 2004004094, 2004004096, 2004014053, 2004014953

    • Normalised article numbler
      f032130117, sa0072, wsa5881, 619121, 619123, 2004004076, 2004004091, 2004004094, 2004004096, 2004014053, 2004014953
