Article no.: F032130118

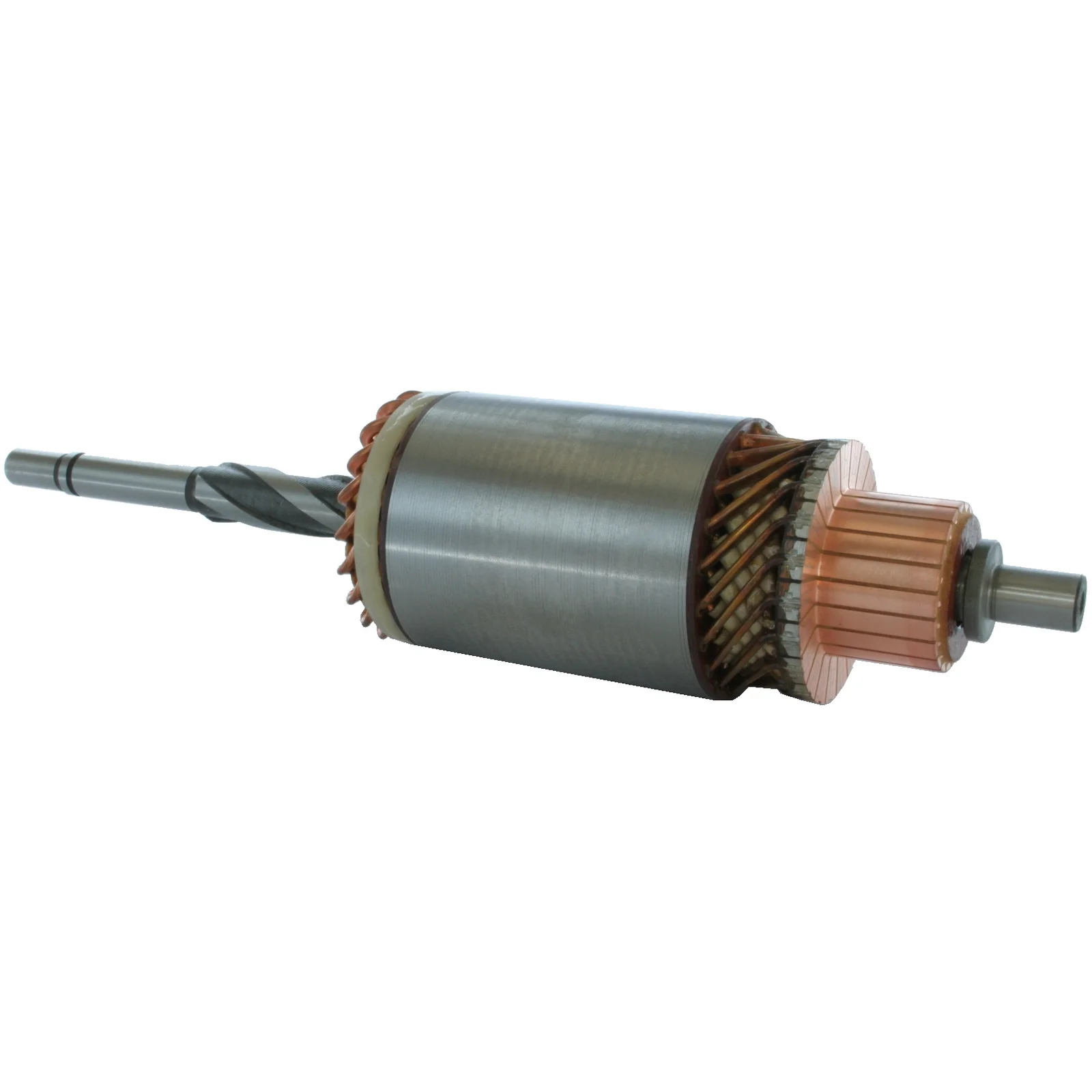

Armature / Rotor

Technical info:

Voltage: 12, kW: 2.3, Rotation: CW, Core diameter: 73.00

Description

Voltage: 12
kW: 2.3
Core diameter: 73.00
Shaft diameter / C.E.: 14.00
Shaft diameter / D.E. inside: 14.15
Shaft diameter / D.E. outside: 12.50
Shaft diameter: 18.85
Shaft length: 335.00
Number / splines: 3
Rotation: CW
Distance / commutator: 28.00
Commutator diameter / bar lane: 43.20
Bar distance: 2.55
Bar cross distance: 48.00
Height / bar lane: 27.20
Number / bars: 21
Remarks: 9 V: HC-CARGO 133089.
