Article no.: F032130119

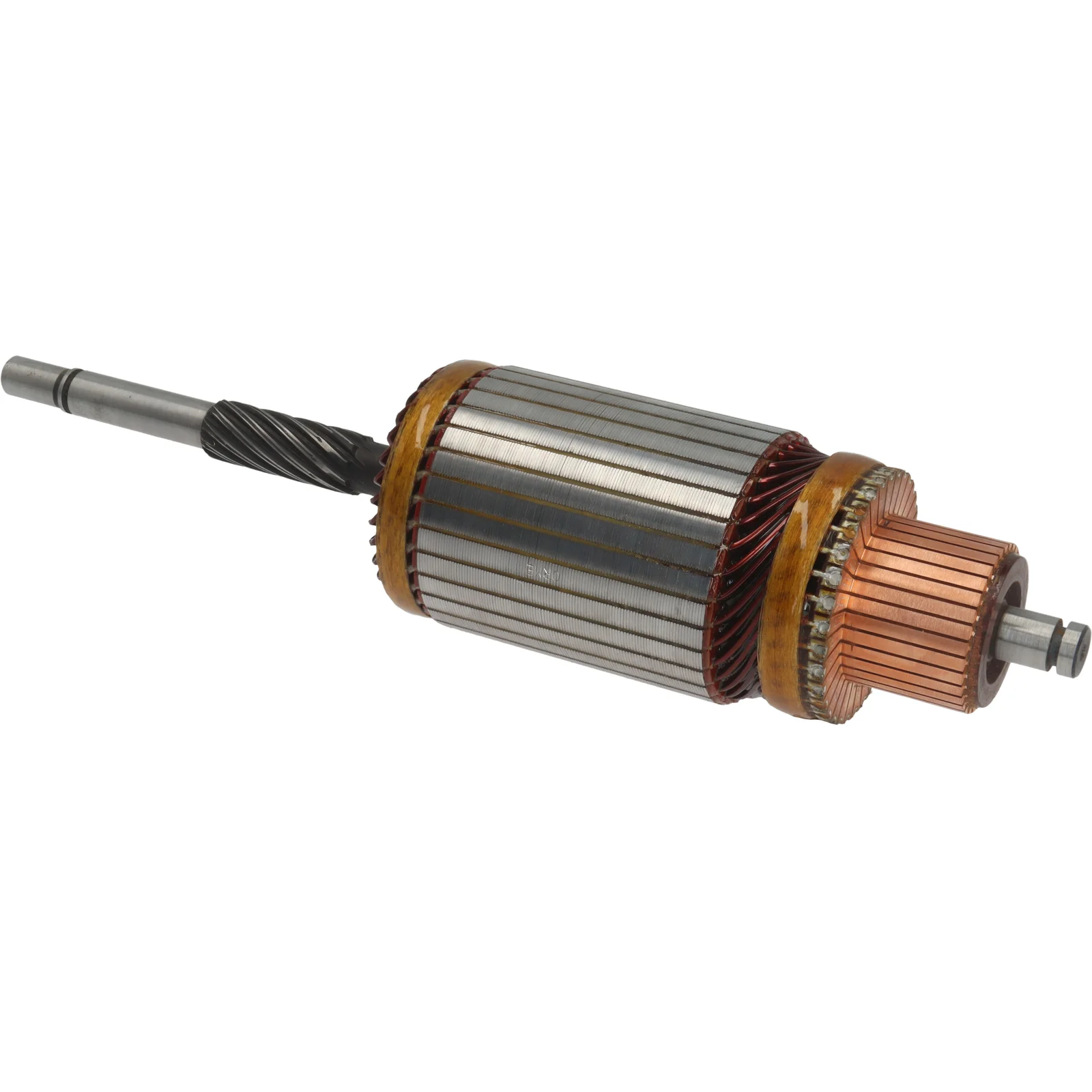

Armature / Rotor

Technical info:

Voltage: 24, kW: 4.0, Rotation: CW, Core diameter: 75.00

Description

Voltage: 24
kW: 4.0
Core dia.: 75.00
Shaft dia./C.E.: 14.00
Shaft dia./D.E. inside: 14.15
Shaft dia./D.E. outside: 12.50
Shaft dia.: 18.75
Shaft length: 333.00
No./splines: 10
Rotation: CW
Dist./commutator: 23.30
Commutator dia./bar lane: 46.10
Bar dist.: 2.30
Bar cross dist.: 46.20
Height/bar lane: 30.30
No./bars: 33
Remarks: 18 V: HC-CARGO 137286.
