Article no.: F032130122

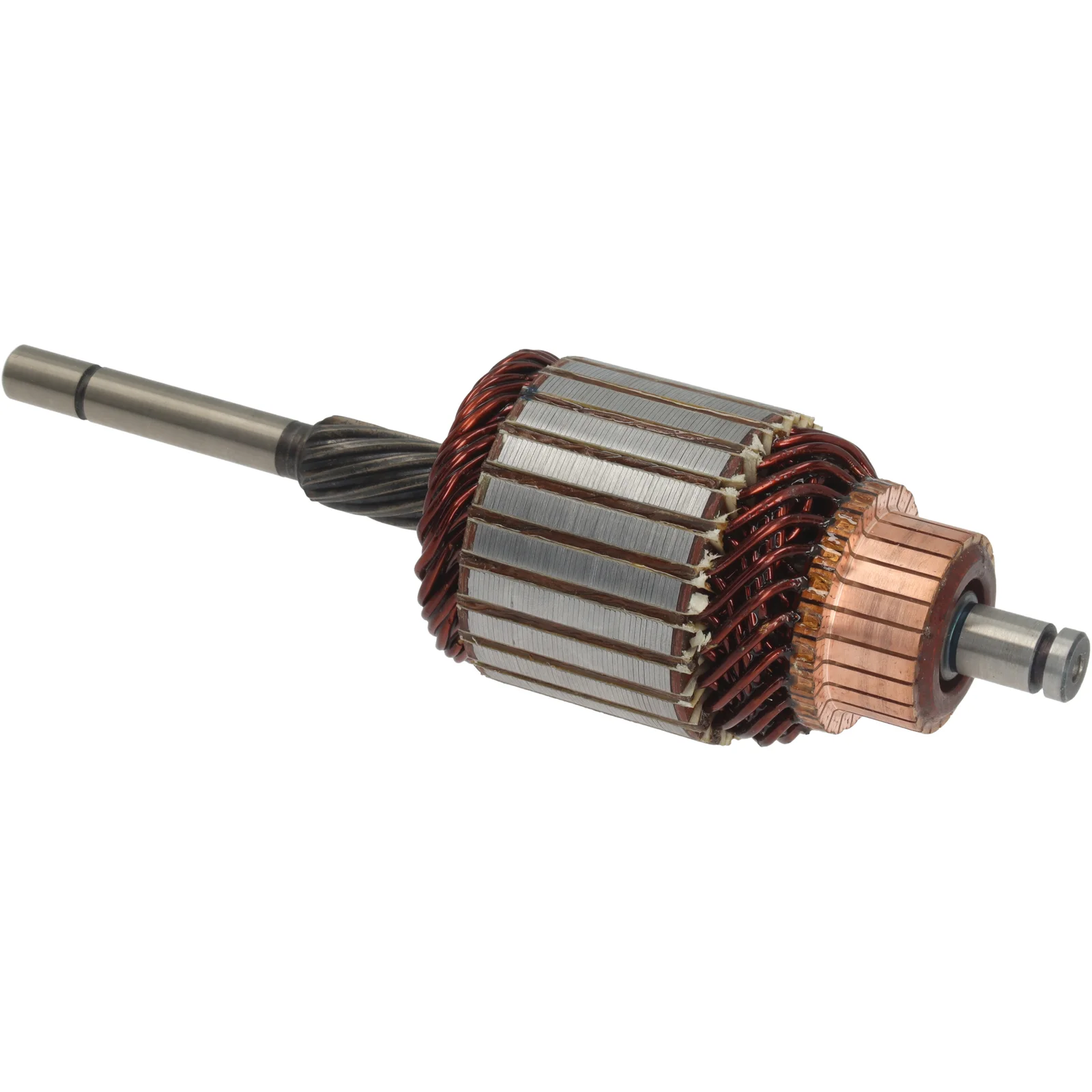

Armature / Rotor

Technical info:

Voltage: 12, kW: 0.8, Rotation: CCW, Core dia.: 60.00

Description

Voltage: 12
kW: 0.8
Core diameter: 60.00
Shaft diameter / C.E.: 12.40
Shaft diameter / D.E. inside: 11.00
Shaft diameter / D.E. outside: 11.00
Shaft diameter: 18.00
Shaft length: 215.50
Number / splines: 10
Rotation: CCW
Dist. / commutator: 22.30
Commutator diameter / bar lane: 36.00
Bar distance: 2.60
Bar cross distance: 36.80
Height / bar lane: 16.60
Number / bars: 23

Files

  • OEM
    F032130122, 1004012011, 1004012413, 1004012428, 1004012449, 1004012913, 1004012914, 1004012915, 2004012011

  • Normalised article numbler
    f032130122, sa0100, wsa1917, 1004012011, 1004012413, 1004012428, 1004012449, 1004012913, 1004012914, 1004012915, 2004012011
  • Description
    Voltage: 12
    kW: 0.8
    Core diameter: 60.00
    Shaft diameter / C.E.: 12.40
    Shaft diameter / D.E. inside: 11.00
    Shaft diameter / D.E. outside: 11.00
    Shaft diameter: 18.00
    Shaft length: 215.50
    Number / splines: 10
    Rotation: CCW
    Dist. / commutator: 22.30
    Commutator diameter / bar lane: 36.00
    Bar distance: 2.60
    Bar cross distance: 36.80
    Height / bar lane: 16.60
    Number / bars: 23

    Files

  • Suitable for these vehicles

    • OEM
      F032130122, 1004012011, 1004012413, 1004012428, 1004012449, 1004012913, 1004012914, 1004012915, 2004012011

    • Normalised article numbler
      f032130122, sa0100, wsa1917, 1004012011, 1004012413, 1004012428, 1004012449, 1004012913, 1004012914, 1004012915, 2004012011
