Article no.: F032130195

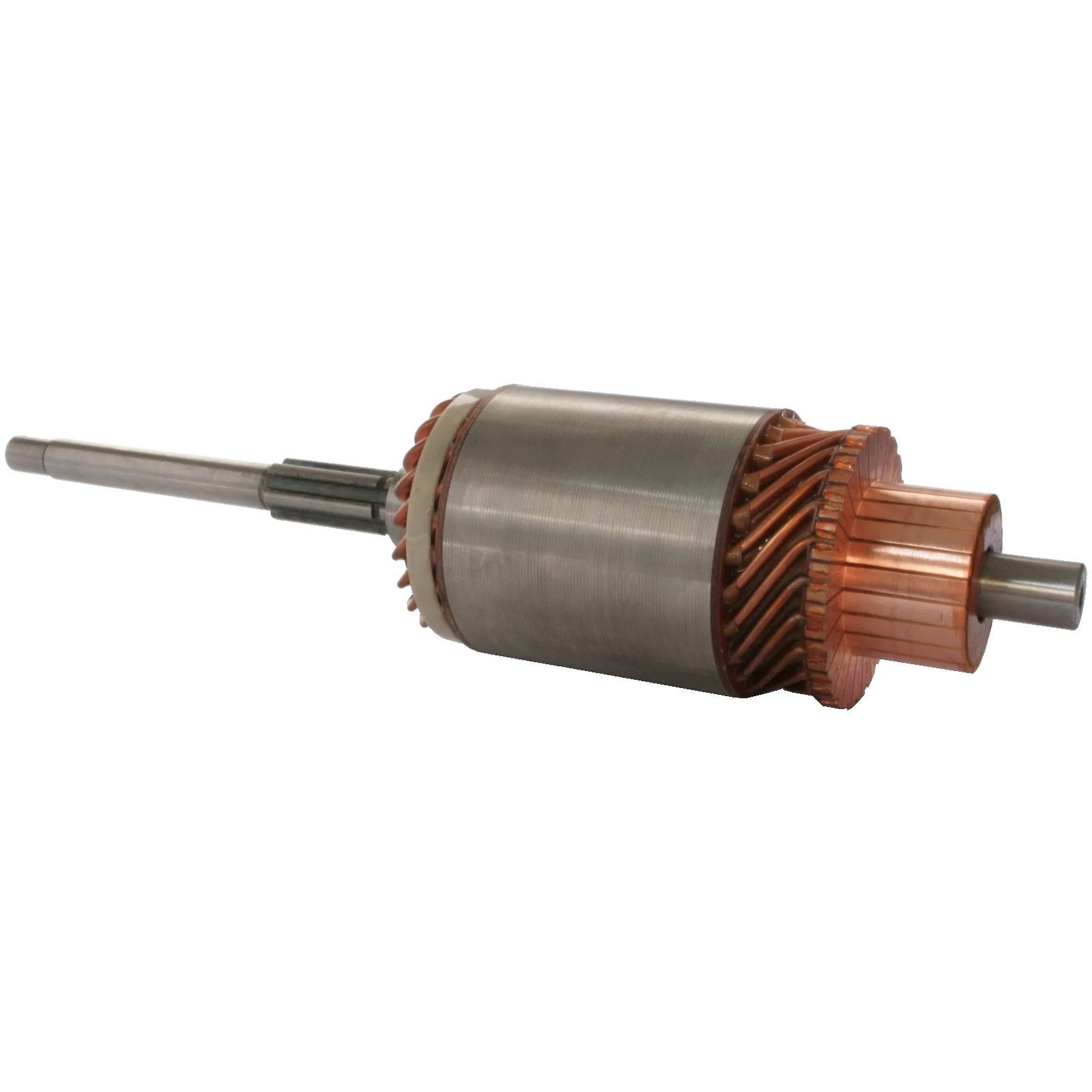

Armature / Rotor

Technical info:

Voltage: 12, kW: 2.1, Rotation: CW, Core diameter: 74.50

Description

Voltage: 12
kW: 2.1
Core diameter: 74.50
Shaft diameter / C.E.: 15.90
Shaft diameter / D.E. inside: 14.20
Shaft diameter / D.E. outside: 12.60
Shaft length: 338.00
Rotation: CW
Dist./armature: 22.20
Armature diameter / bar lane: 42.00
Bar dist.: 3.00
Bar cross dist.: 49.60
Height / bar lane: 26.30
Number / bars: 23
Servicing: M45G

Files

  • Description
    Voltage: 12
    kW: 2.1
    Core diameter: 74.50
    Shaft diameter / C.E.: 15.90
    Shaft diameter / D.E. inside: 14.20
    Shaft diameter / D.E. outside: 12.60
    Shaft length: 338.00
    Rotation: CW
    Dist./armature: 22.20
    Armature diameter / bar lane: 42.00
    Bar dist.: 3.00
    Bar cross dist.: 49.60
    Height / bar lane: 26.30
    Number / bars: 23
    Servicing: M45G

    Files

  • Suitable for these vehicles
