Article no.: F032130200

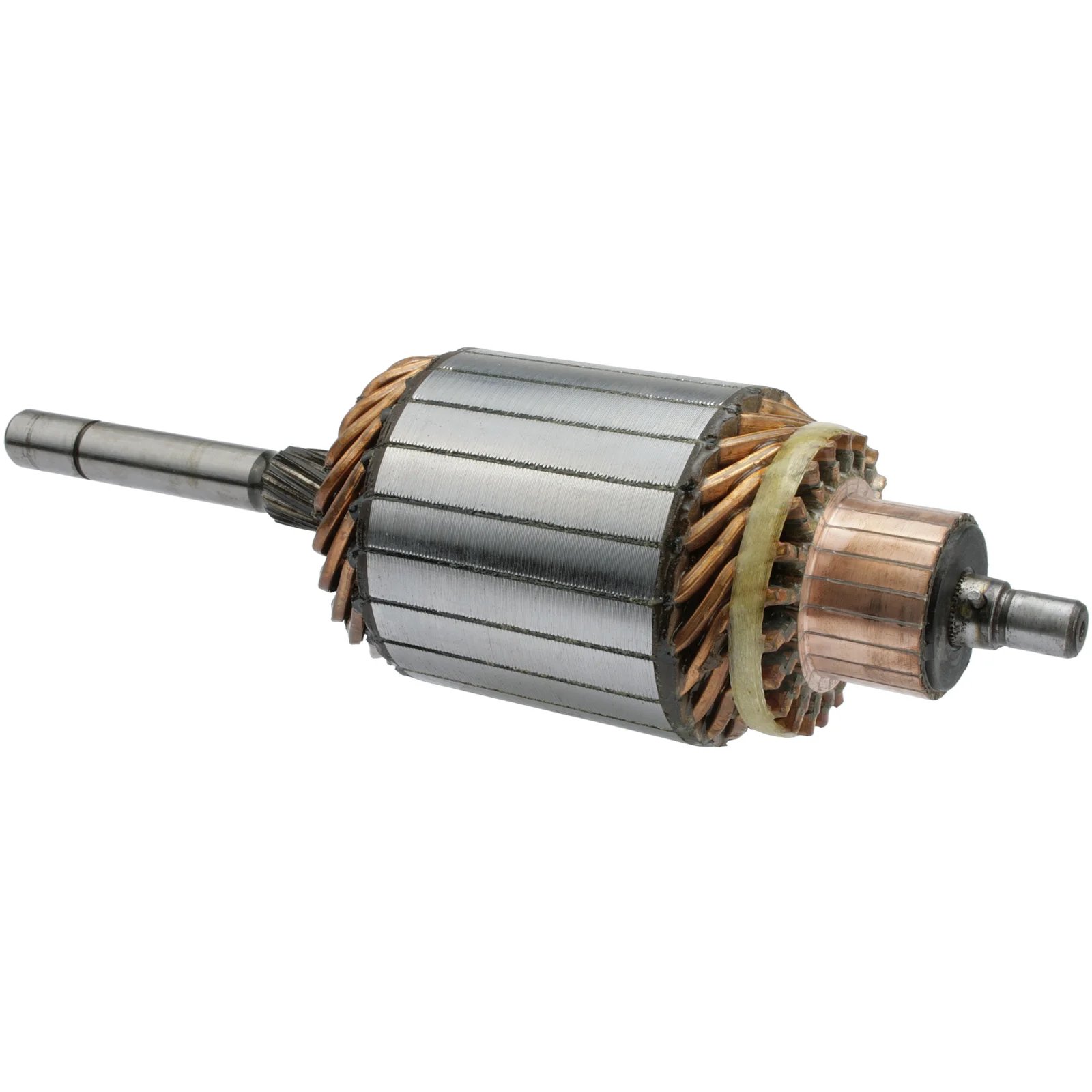

Armature / Rotor

Technical info:

Voltage: 12, kW: 2.8, Rotation: CW, Core diameter: 84.00

Description

Voltage: 12
kW: 2.8
Core diameter: 84.00
Shaft diameter/Center End: 12.70
Shaft diameter/Drive End inside: 17.00
Shaft diameter/Drive End outside: 17.00
Shaft length: 303.40
Number of splines: 12
Rotation: clockwise
Distance/commutator: 25.30
Commutator diameter/bar lane: 42.80
Bar distance: 3.65
Bar cross distance: 54.20
Height/bar lane: 25.00
Number of bars: 21
Servicing: M50G
Remarks: Drive: HC-CARGO 130453.
