Article no.: F032130202

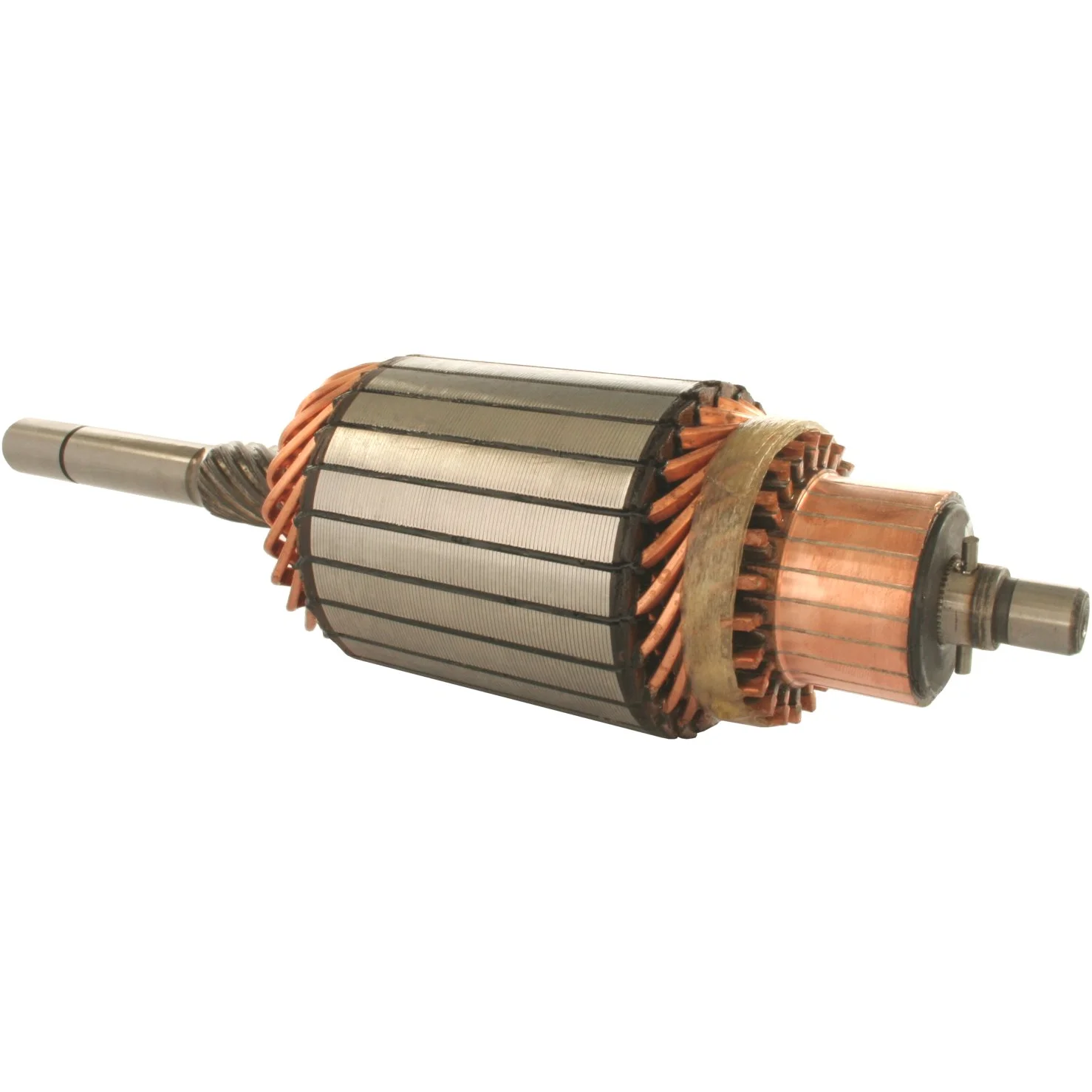

Armature / Rotor

Technical info:

Voltage: 12, kW: 2.1, Rotation: CW, Core diameter: 74.50

Description

Voltage: 12
kW: 2.1
Core dia.: 74.50
Shaft dia./C.E.: 12.70
Shaft dia./D.E. inside: 17.00
Shaft dia./D.E. outside: 17.00
Shaft length: 303.60
No./splines: 12
Rotation: CW
Dist./commutator: 24.80
Commutator dia./bar lane: 42.00
Bar dist.: 3.00
Bar cross dist.: 49.60
Height/bar lane: 26.30
No./bars: 23
Servicing: M45G

Files

  • Description
    Voltage: 12
    kW: 2.1
    Core dia.: 74.50
    Shaft dia./C.E.: 12.70
    Shaft dia./D.E. inside: 17.00
    Shaft dia./D.E. outside: 17.00
    Shaft length: 303.60
    No./splines: 12
    Rotation: CW
    Dist./commutator: 24.80
    Commutator dia./bar lane: 42.00
    Bar dist.: 3.00
    Bar cross dist.: 49.60
    Height/bar lane: 26.30
    No./bars: 23
    Servicing: M45G

    Files
