Article no.: F032130203

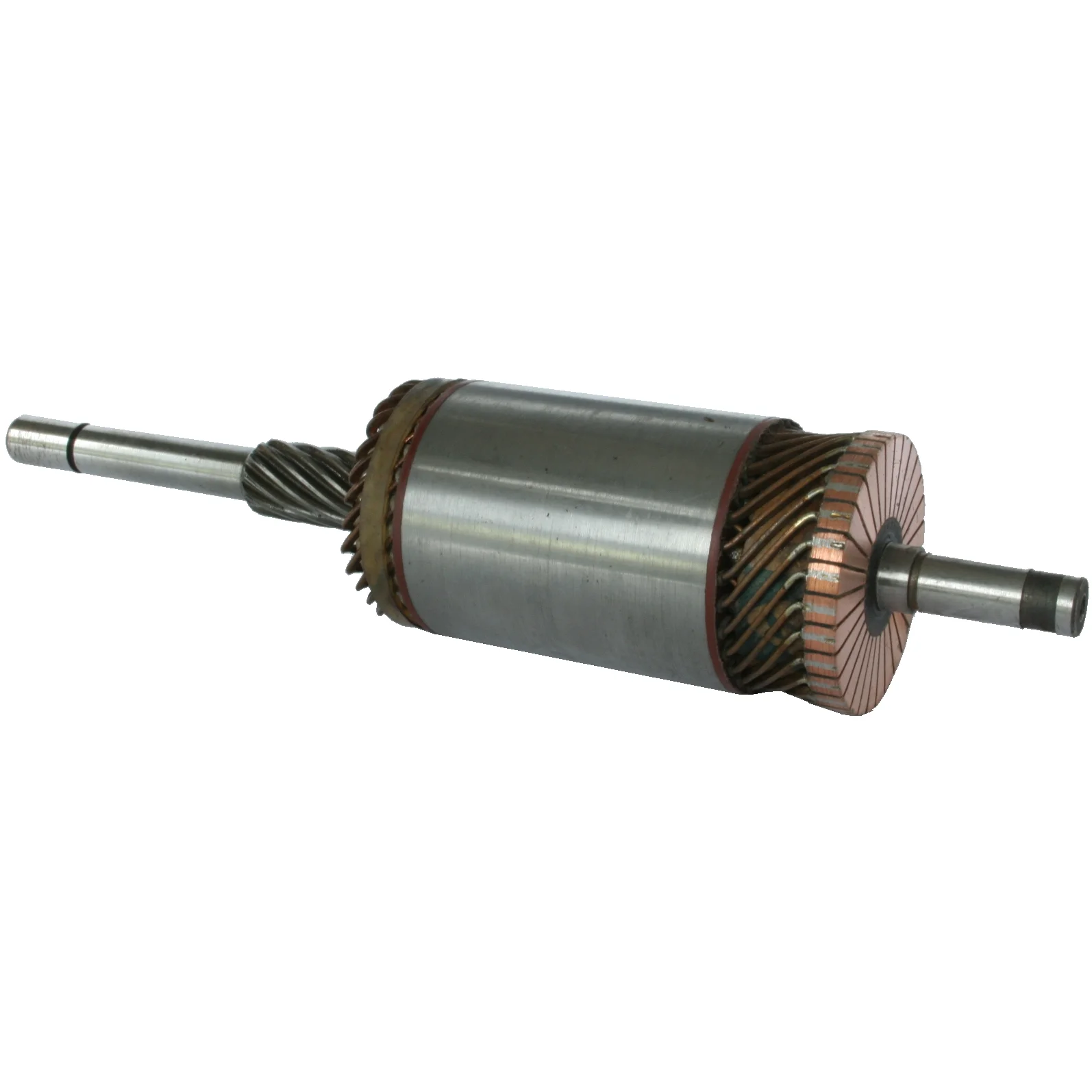

Armature / Rotor

Technical info:

Voltage: 12, kW: 0.8, Rotation: CW, Core dia.: 54.00

Description

Voltage: 12
kW: 0.8
Core diameter: 54.00
Shaft diameter/C.E.: 11.05
Shaft diameter/D.E. inside: 12.00
Shaft diameter/D.E. outside: 12.00
Shaft length: 249.60
Number of splines: 12
Rotation: CW
Dist./commutator: 36.70
Bar distance: 1.50
Bar cross distance: 41.50
Number of bars: 29
Servicing: M35J

Files

  • OEM
    F032130203, tgb100, 54241719, 54246418, 54246544, 54247025, 54247556, 54247935

  • Normalised article numbler
    f032130203, tgb100, wsa557, wsa564lb, 54241719, 54246418, 54246544, 54247025, 54247556, 54247935
  • Description
    Voltage: 12
    kW: 0.8
    Core diameter: 54.00
    Shaft diameter/C.E.: 11.05
    Shaft diameter/D.E. inside: 12.00
    Shaft diameter/D.E. outside: 12.00
    Shaft length: 249.60
    Number of splines: 12
    Rotation: CW
    Dist./commutator: 36.70
    Bar distance: 1.50
    Bar cross distance: 41.50
    Number of bars: 29
    Servicing: M35J

    Files

  • Suitable for these vehicles

    • OEM
      F032130203, tgb100, 54241719, 54246418, 54246544, 54247025, 54247556, 54247935

    • Normalised article numbler
      f032130203, tgb100, wsa557, wsa564lb, 54241719, 54246418, 54246544, 54247025, 54247556, 54247935
