Article no.: F032130205

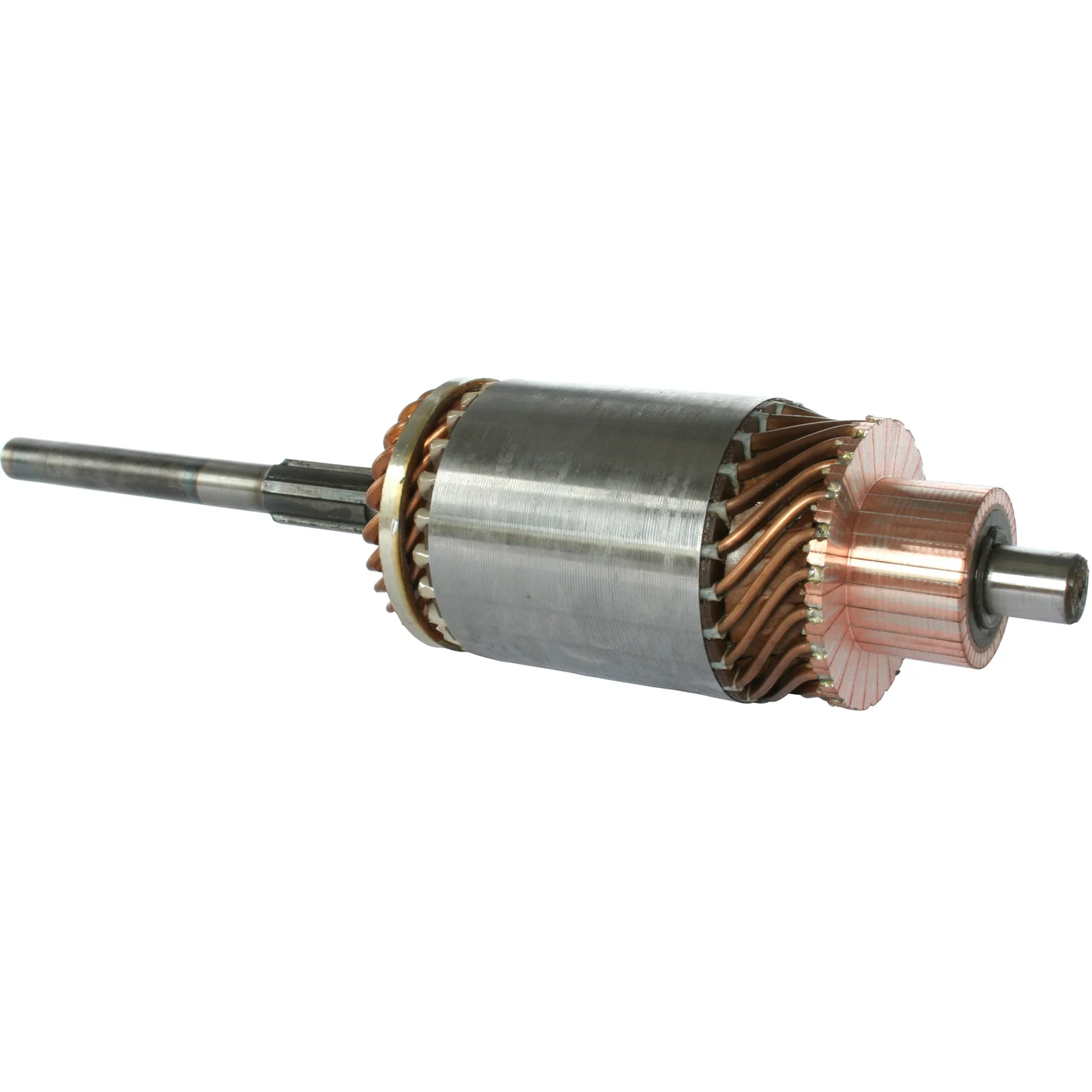

Armature / Rotor

Technical info:

Voltage: 12, kW: 2.1, Rotation: CW, Core diameter: 74.50

Description

Voltage: 12
kW: 2.1
Core diameter: 74.50
Shaft diameter/C.E.: 16.00
Shaft diameter/D.E. inside: 14.20
Shaft diameter/D.E. outside: 14.00
Shaft length: 340.00
Rotation: CW
Dist./armature: 19.60
Armature diameter/bar lane: 42.00
Bar distance: 3.00
Bar cross distance: 49.60
Height/bar lane: 26.30
No./bars: 23
Servicing: M45G

Files

  • Description
    Voltage: 12
    kW: 2.1
    Core diameter: 74.50
    Shaft diameter/C.E.: 16.00
    Shaft diameter/D.E. inside: 14.20
    Shaft diameter/D.E. outside: 14.00
    Shaft length: 340.00
    Rotation: CW
    Dist./armature: 19.60
    Armature diameter/bar lane: 42.00
    Bar distance: 3.00
    Bar cross distance: 49.60
    Height/bar lane: 26.30
    No./bars: 23
    Servicing: M45G

    Files

  • Suitable for these vehicles
