Article no.: F032130319

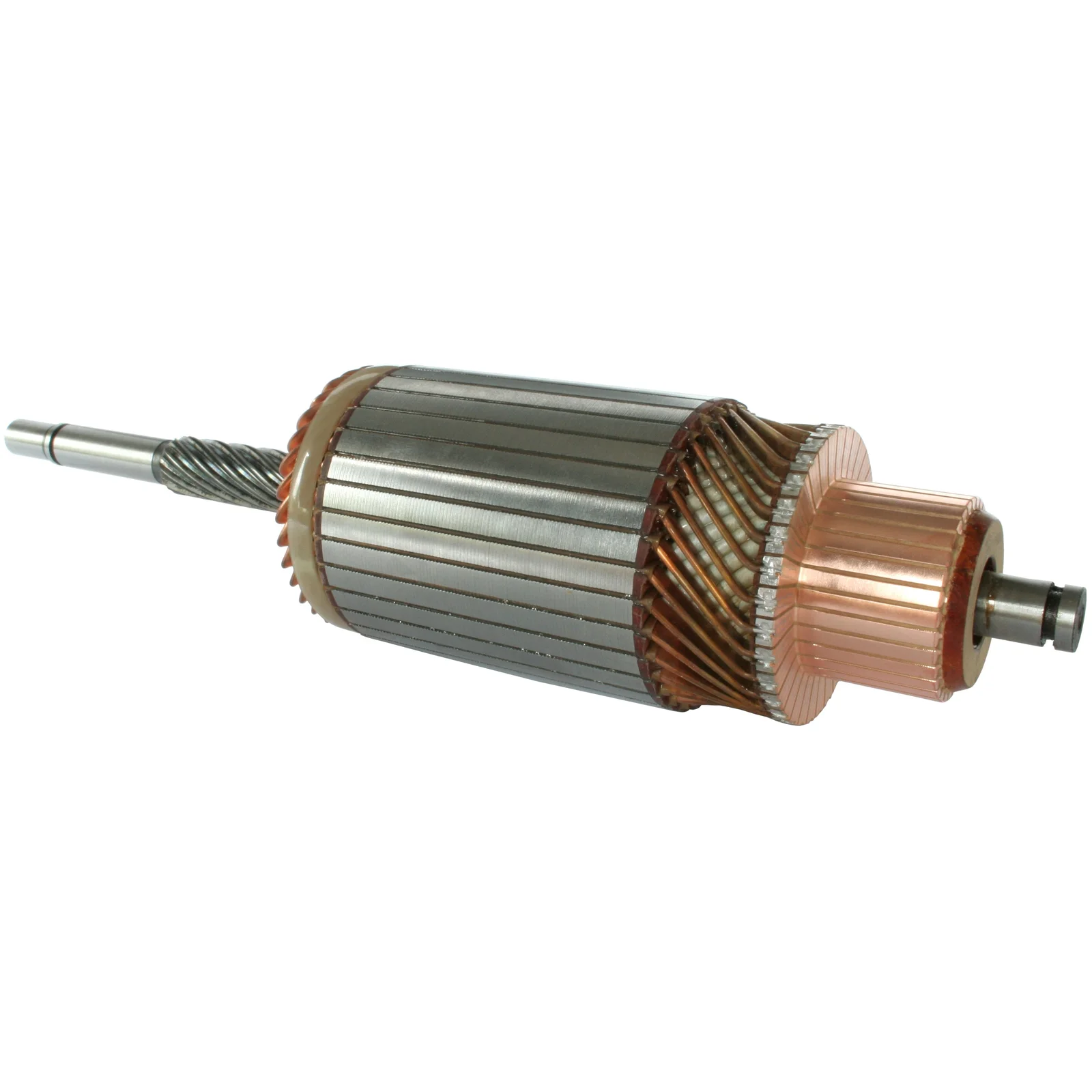

Armature / Rotor

Technical info:

Voltage: 12, kW: 3.0, Rotation: CW, Core diameter: 75.00

Description

Voltage: 12
kW: 3.0
Core diameter.: 75.00
Shaft diameter/C.E.: 14.00
Shaft diameter/D.E. inside: 14.15
Shaft diameter/D.E. outside: 12.40
Shaft diameter.: 18.85
Shaft length: 333.00
Number of/ splines: 10
Rotation: CW
Distance / commutator: 19.70
Commutator diameter / bar lane: 46.10
Bar distance: 2.30
Bar cross distance: 46.20
Height / bar lane: 30.30
Number of / bars: 33
Remarks: 9 V: HC-CARGO 133515.

Files

  • OEM
    AL169535, AL25274, F032130319, 16.360.326, 2004004061, 2004004112, 9001140275

  • Normalised article numbler
    al169535, al25274, f032130319, sa0012, wsa1894, 619110, 16360326, 2004004061, 2004004112, 9001140275
  • Description
    Voltage: 12
    kW: 3.0
    Core diameter.: 75.00
    Shaft diameter/C.E.: 14.00
    Shaft diameter/D.E. inside: 14.15
    Shaft diameter/D.E. outside: 12.40
    Shaft diameter.: 18.85
    Shaft length: 333.00
    Number of/ splines: 10
    Rotation: CW
    Distance / commutator: 19.70
    Commutator diameter / bar lane: 46.10
    Bar distance: 2.30
    Bar cross distance: 46.20
    Height / bar lane: 30.30
    Number of / bars: 33
    Remarks: 9 V: HC-CARGO 133515.

    Files

  • Suitable for these vehicles

    • OEM
      AL169535, AL25274, F032130319, 16.360.326, 2004004061, 2004004112, 9001140275

    • Normalised article numbler
      al169535, al25274, f032130319, sa0012, wsa1894, 619110, 16360326, 2004004061, 2004004112, 9001140275
