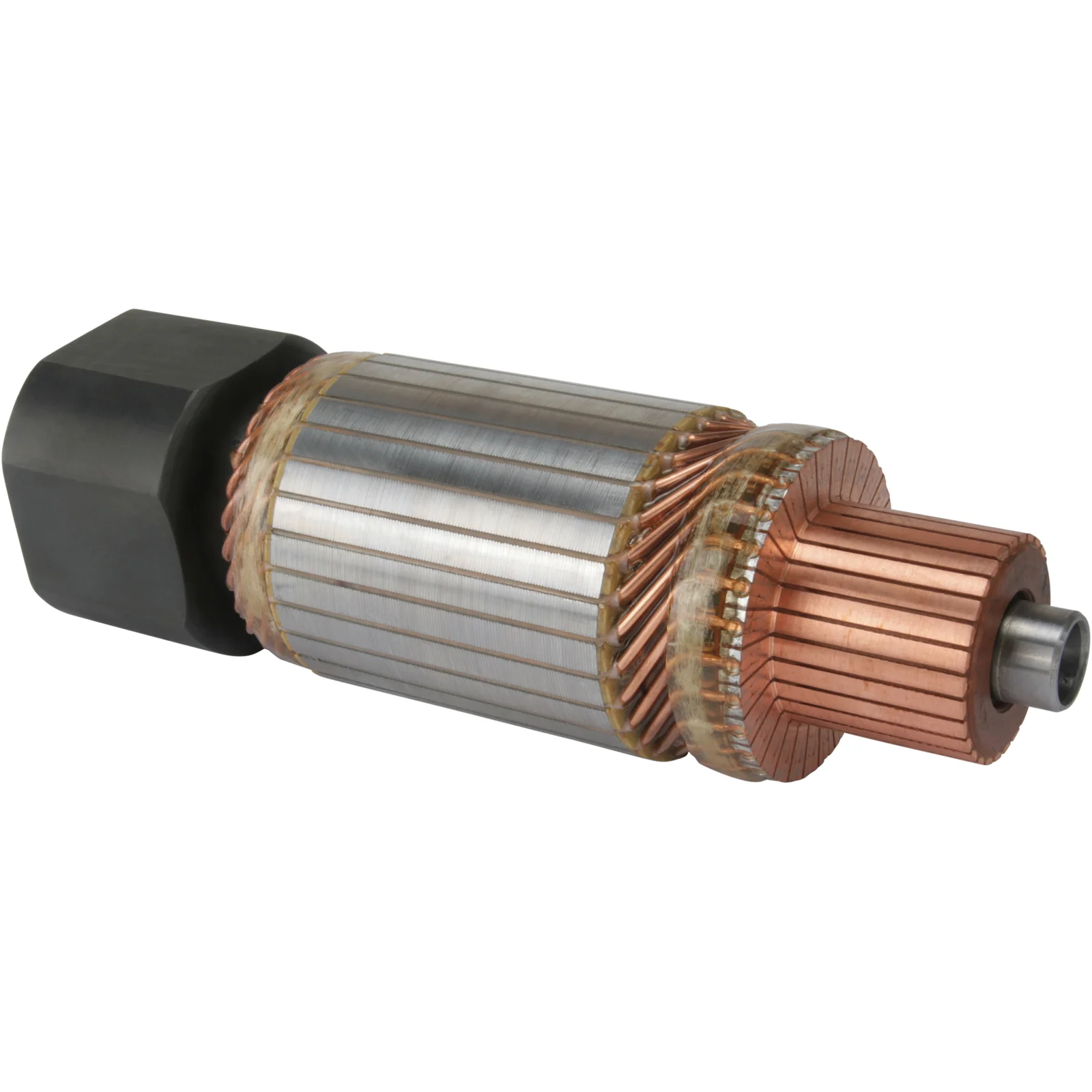

Article no.: F032130320

Armature / Rotor

Technical info:

Voltage: 24, kW: 5.5, Rotation: CW, Core dia.: 83.00

Description

Voltage: 24
kW: 5.5
Core diameter: 83.00
Shaft diameter/C.E.: 22.00
Shaft length: 270.00
Rotation: CW
Dist./commutator: 11.90
Commutator diameter/bar lane: 51.00
Bar distance: 3.00
Bar cross distance: 53.20
Height/bar lane: 42.20
No./bars: 25
Remarks: Clutch housing: HC-CARGO 231369.

Files

  • OEM
    F032130320, 16.360.068, 2004005025, 2004005071, 2004005151

  • Normalised article numbler
    f032130320, sa0010, wsa5903, 619112, 16360068, 2004005025, 2004005071, 2004005151
  • Description
    Voltage: 24
    kW: 5.5
    Core diameter: 83.00
    Shaft diameter/C.E.: 22.00
    Shaft length: 270.00
    Rotation: CW
    Dist./commutator: 11.90
    Commutator diameter/bar lane: 51.00
    Bar distance: 3.00
    Bar cross distance: 53.20
    Height/bar lane: 42.20
    No./bars: 25
    Remarks: Clutch housing: HC-CARGO 231369.

    Files

  • Suitable for these vehicles

    • OEM
      F032130320, 16.360.068, 2004005025, 2004005071, 2004005151

    • Normalised article numbler
      f032130320, sa0010, wsa5903, 619112, 16360068, 2004005025, 2004005071, 2004005151
