Article no.: F032130554

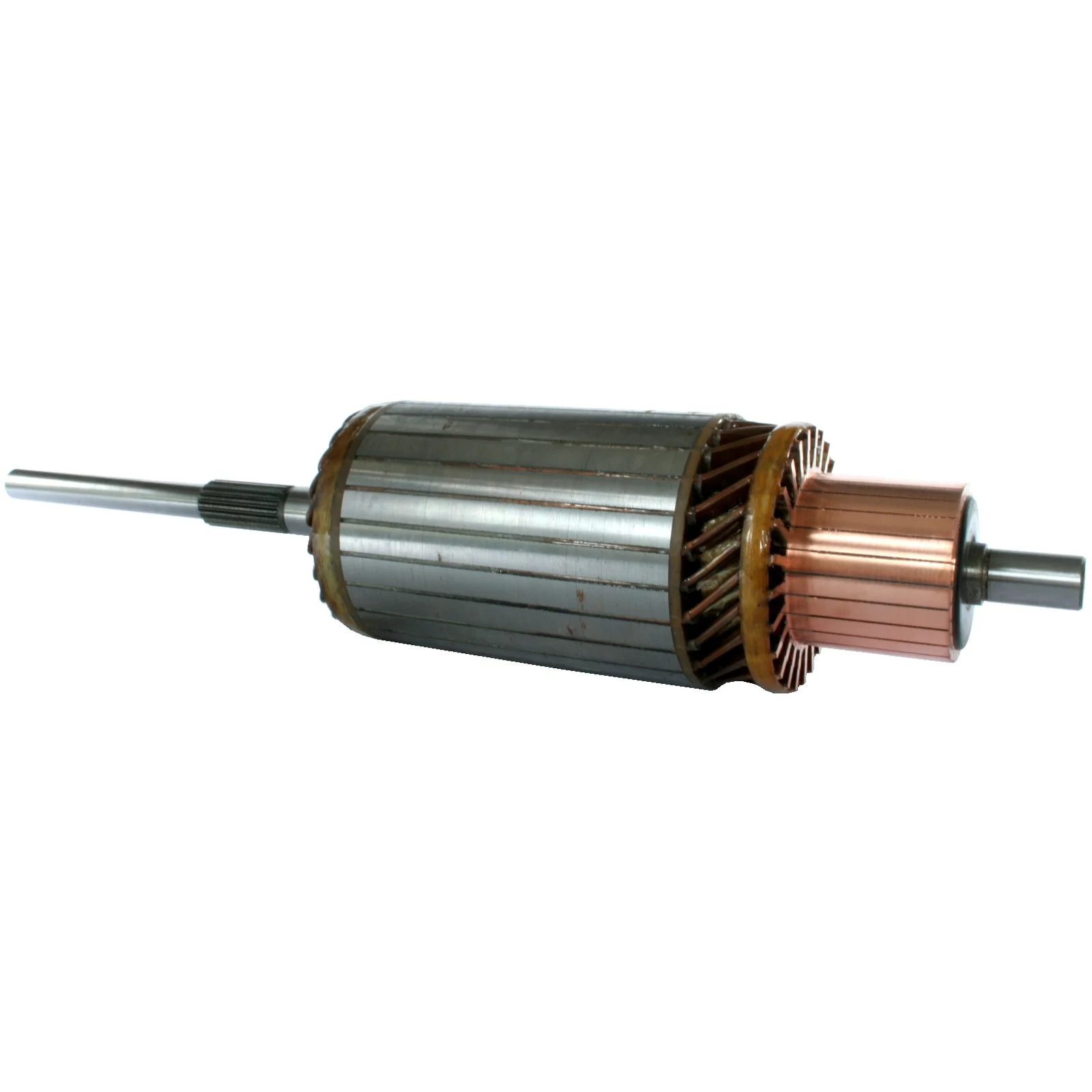

Armature / Rotor

Technical info:

Voltage: 24, Rotation: CW, Core diameter: 96.00, Shaft diameter / C.E.: 17.40

Description

Voltage: 24
Core diameter: 96.00
Shaft diameter / C.E.: 17.40
Shaft diameter / D.E. inside: 15.90
Shaft diameter / D.E. outside: 15.80
Shaft diameter: 20.90
Shaft length: 482.60
No. / splines: 19
Rotation: CW
Dist. / commutator: 36.00
Commutator diameter / bar lane: 58.70
Bar distance: 3.40
Bar cross distance: 64.30
Height / bar lane: 50.00
No. / bars: 25
Servicing: 50MT
Remarks: Short shaft.

Files

  • OEM
    AR89421, F032130554, 7M8651, 1945840, 1953233

  • Normalised article numbler
    am4250, ar89421, f032130554, sa1003, wsa1586, 7m8651, 2097, 61124, 1945840, 1953233, 6112425
  • Description
    Voltage: 24
    Core diameter: 96.00
    Shaft diameter / C.E.: 17.40
    Shaft diameter / D.E. inside: 15.90
    Shaft diameter / D.E. outside: 15.80
    Shaft diameter: 20.90
    Shaft length: 482.60
    No. / splines: 19
    Rotation: CW
    Dist. / commutator: 36.00
    Commutator diameter / bar lane: 58.70
    Bar distance: 3.40
    Bar cross distance: 64.30
    Height / bar lane: 50.00
    No. / bars: 25
    Servicing: 50MT
    Remarks: Short shaft.

    Files

  • Suitable for these vehicles

    • OEM
      AR89421, F032130554, 7M8651, 1945840, 1953233

    • Normalised article numbler
      am4250, ar89421, f032130554, sa1003, wsa1586, 7m8651, 2097, 61124, 1945840, 1953233, 6112425
