Article no.: F032131116

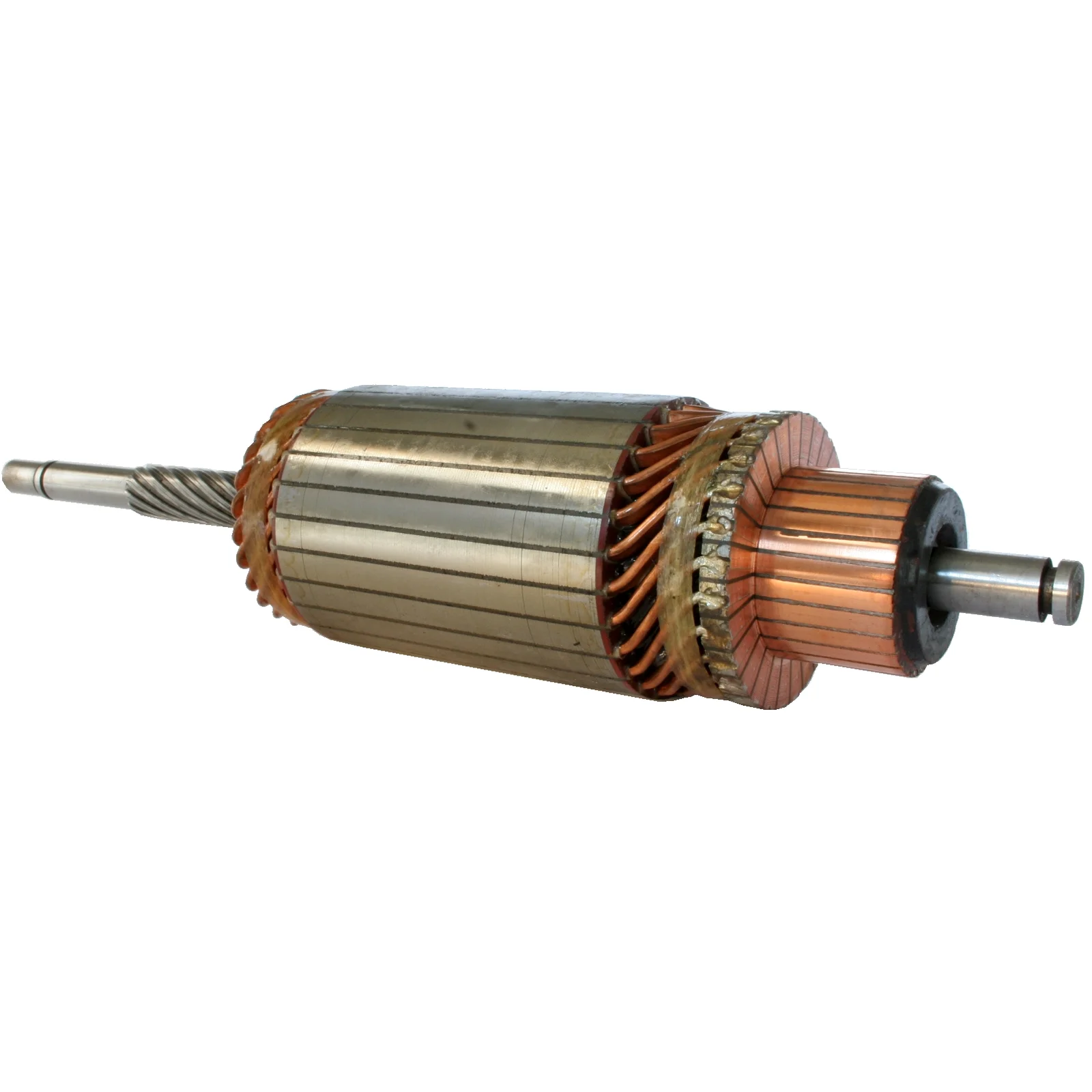

Armature / Rotor

Technical info:

Voltage: 24, kW: 4.8, Rotation: CW, Core diameter: 75.00

Description

Voltage: 24
kW: 4.8
Core diameter: 75.00
Shaft diameter/C.E.: 14.00
Shaft diameter/D.E. inside: 14.15
Shaft diameter/D.E. outside: 12.50
Shaft diameter: 18.80
Shaft length: 366.00
Number of splines: 10
Rotation: CW
Distance/commutator: 28.20
Commutator diameter/bar lane: 45.60
Bar distance: 2.60
Bar cross distance: 44.80
Height/bar lane: 31.00
Number of bars: 27

Files

  • OEM
    F032131116, 16.360.576, 2004004115, 2004004128, 2004004928, 2004004968, 2004014928

  • Normalised article numbler
    f032131116, wsa1904, 619119, 16360576, 2004004115, 2004004128, 2004004928, 2004004968, 2004014928
  • Description
    Voltage: 24
    kW: 4.8
    Core diameter: 75.00
    Shaft diameter/C.E.: 14.00
    Shaft diameter/D.E. inside: 14.15
    Shaft diameter/D.E. outside: 12.50
    Shaft diameter: 18.80
    Shaft length: 366.00
    Number of splines: 10
    Rotation: CW
    Distance/commutator: 28.20
    Commutator diameter/bar lane: 45.60
    Bar distance: 2.60
    Bar cross distance: 44.80
    Height/bar lane: 31.00
    Number of bars: 27

    Files

  • Suitable for these vehicles

    • OEM
      F032131116, 16.360.576, 2004004115, 2004004128, 2004004928, 2004004968, 2004014928

    • Normalised article numbler
      f032131116, wsa1904, 619119, 16360576, 2004004115, 2004004128, 2004004928, 2004004968, 2004014928
