Article no.: F032131130

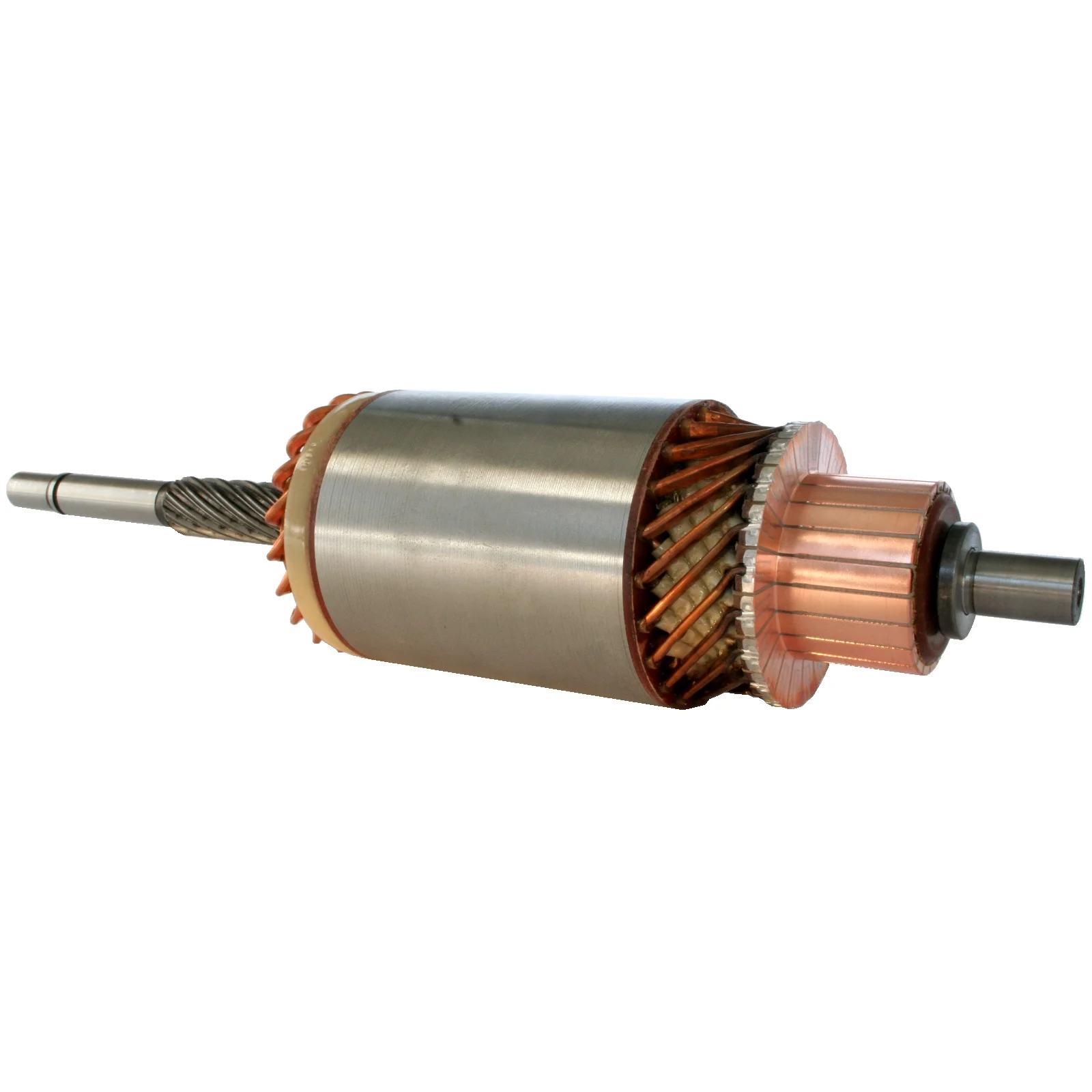

Armature / Rotor

Technical info:

Voltage: 12, kW: 3.2, Rotation: CW, Core diameter: 73.00

Description

Voltage: 12
kW: 3.2
Core dia.: 73.00
Shaft dia./C.E.: 14.00
Shaft dia./D.E. inside: 14.15
Shaft dia./D.E. outside: 12.50
Shaft dia.: 18.90
Shaft length: 333.00
No./splines: 10
Rotation: CW
Dist./commutator: 27.20
Commutator dia./bar lane: 43.20
Bar dist.: 2.55
Bar cross dist.: 48.00
Height/bar lane: 27.20
No./bars: 21
Remarks: 9 V: HC-CARGO 133090.
