Article no.: F032131309

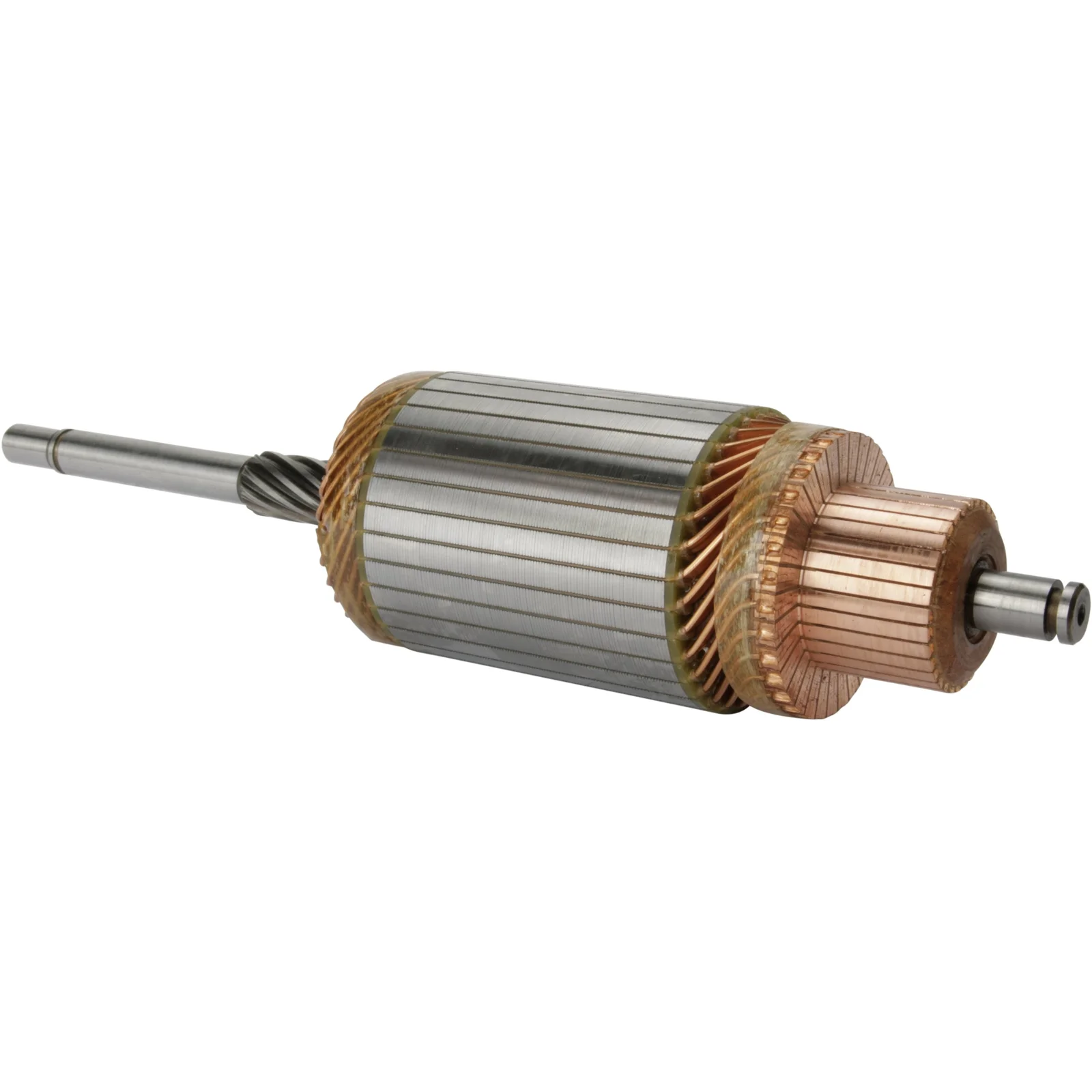

Armature / Rotor

Technical info:

Voltage: 24, kW: 4.0, Rotation: CW, Core diameter: 75.00

Description

Voltage: 24
kW: 4.0
Core dia.: 75.00
Shaft dia./C.E.: 14.00
Shaft dia./D.E. inside: 14.10
Shaft dia./D.E. outside: 12.50
Shaft dia.: 19.00
Shaft length: 337.00
No./splines: 10
Rotation: CW
Dist./commutator: 23.50
Commutator dia./bar lane: 46.10
Bar dist.: 2.30
Bar cross dist.: 46.20
Height/bar lane: 30.30
No./bars: 33
Remarks: 18 V: HC-CARGO 137287.

Files

  • OEM
    F032131309, 16.360.324, 2004004032, 2004004033, 2004004035, 2004004036, 2004004038, 2004014075, 2004014975

  • Normalised article numbler
    f032131309, sa0016, sa0075, wsa1919, 619101, 16360324, 2004004032, 2004004033, 2004004035, 2004004036, 2004004038, 2004014075, 2004014975
  • Description
    Voltage: 24
    kW: 4.0
    Core dia.: 75.00
    Shaft dia./C.E.: 14.00
    Shaft dia./D.E. inside: 14.10
    Shaft dia./D.E. outside: 12.50
    Shaft dia.: 19.00
    Shaft length: 337.00
    No./splines: 10
    Rotation: CW
    Dist./commutator: 23.50
    Commutator dia./bar lane: 46.10
    Bar dist.: 2.30
    Bar cross dist.: 46.20
    Height/bar lane: 30.30
    No./bars: 33
    Remarks: 18 V: HC-CARGO 137287.

    Files

  • Suitable for these vehicles

    • OEM
      F032131309, 16.360.324, 2004004032, 2004004033, 2004004035, 2004004036, 2004004038, 2004014075, 2004014975

    • Normalised article numbler
      f032131309, sa0016, sa0075, wsa1919, 619101, 16360324, 2004004032, 2004004033, 2004004035, 2004004036, 2004004038, 2004014075, 2004014975
