Article no.: F032131350

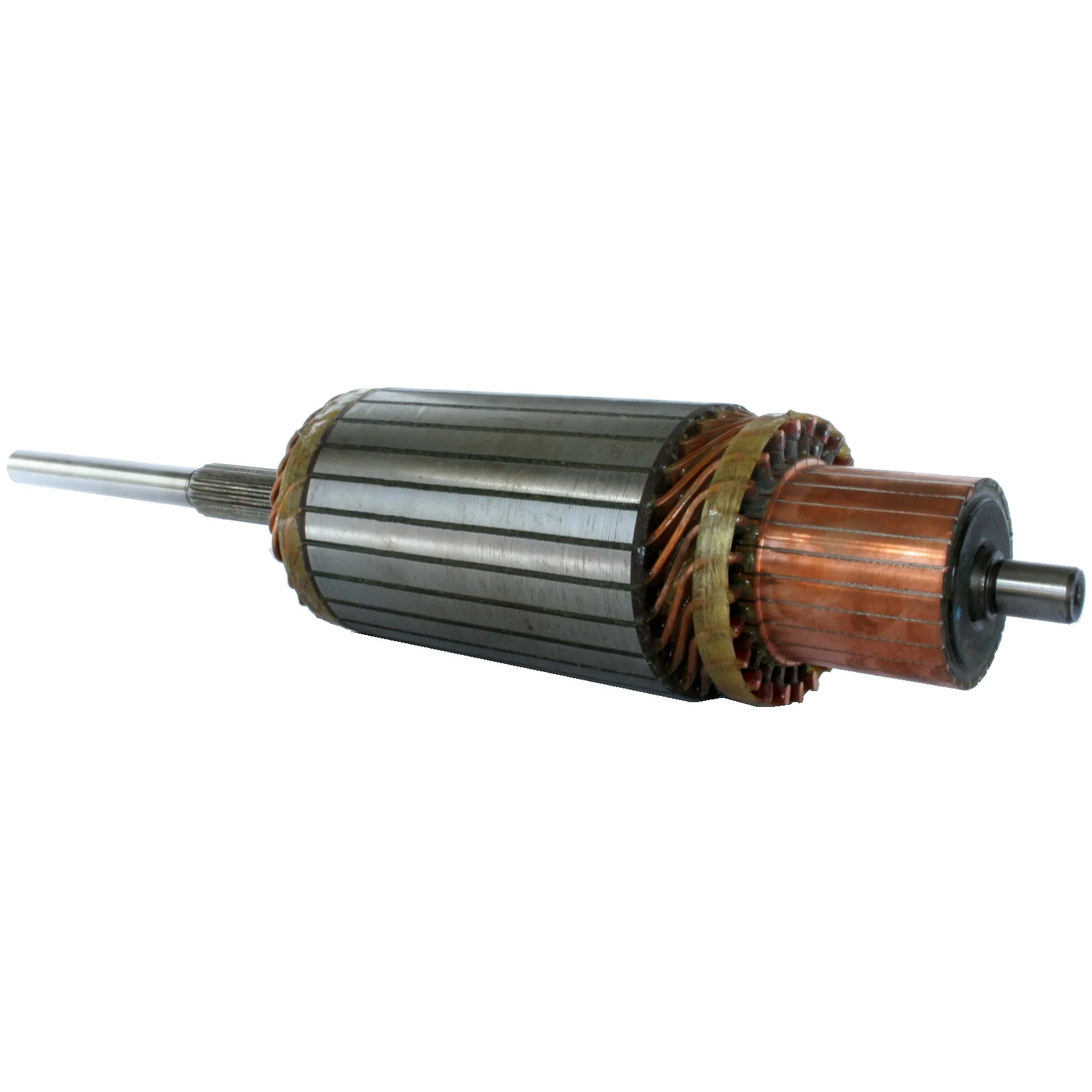

Armature / Rotor

Technical info:

Voltage: 24, kW: N/A, Rotation: CW, Core dia.: 84.00

Description

Voltage: 24
kW: N/A
Core dia.: 84.00
Shaft dia./C.E.: 14.15
Shaft dia./D.E. inside: 15.80
Shaft dia./D.E. outside: 15.80
Shaft dia.: 20.90
Shaft length: 451.00
No./splines: 19
Rotation: CW
Dist./commutator: 23.00
Commutator dia./bar lane: 54.00
Bar dist.: 2.50
Bar cross dist.: 60.00
No./bars: 25
Servicing: 42MT
