Article no.: F032131400

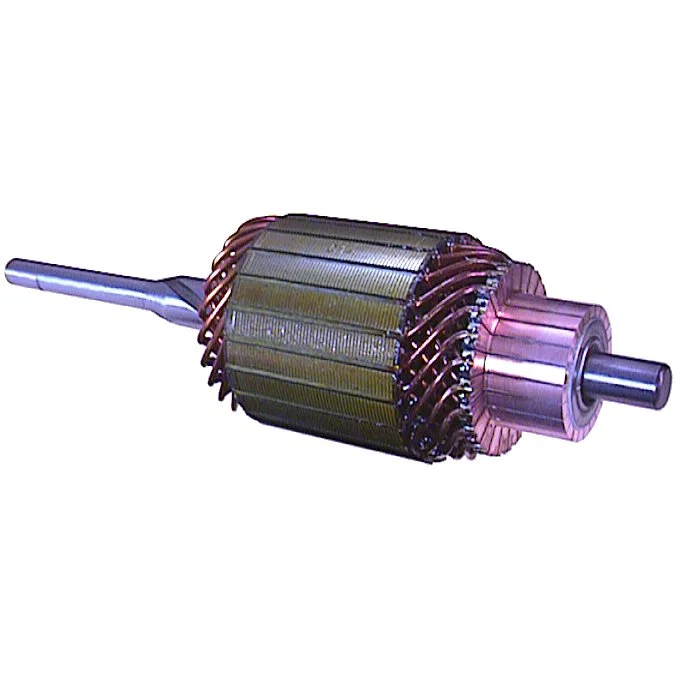

Armature / Rotor

Technical info:

Voltage: 12, Rotation: CW, Core diameter: 74.50, Shaft diameter / C.E.: 14.20

Description

Voltage: 12
Core diameter: 74.50
Shaft diameter / C.E.: 14.20
Shaft diameter / D.E. inside: 12.00
Shaft diameter / D.E. outside: 12.00
Shaft diameter: 19.00
Shaft length: 281.50
Number / splines: 3
Rotation: CW
Dist. / commutator: 23.10
Commutator diameter / bar lane: 43.00
Bar distance: 2.60
Bar cross distance: 43.20
Height / bar lane: 25.50
Number / bars: 23
Servicing: 10MT
Remarks: High torque.

Files

  • OEM
    d4111, d4121, d4124, d4143, d4159, F032131400, 1877361, 1940548, 1940624, 1965724, 1970538, 1970548, 1978517, 1979792, 10470773, 10496043, 10498863

  • Normalised article numbler
    d4111, d4121, d4124, d4143, d4159, f032131400, wsa1581, 1759, 2280, 61107, 611071, 1877361, 1940548, 1940624, 1965724, 1970538, 1970548, 1978517, 1979792, 6110725, 10470773, 10496043, 10498863
  • Description
    Voltage: 12
    Core diameter: 74.50
    Shaft diameter / C.E.: 14.20
    Shaft diameter / D.E. inside: 12.00
    Shaft diameter / D.E. outside: 12.00
    Shaft diameter: 19.00
    Shaft length: 281.50
    Number / splines: 3
    Rotation: CW
    Dist. / commutator: 23.10
    Commutator diameter / bar lane: 43.00
    Bar distance: 2.60
    Bar cross distance: 43.20
    Height / bar lane: 25.50
    Number / bars: 23
    Servicing: 10MT
    Remarks: High torque.

    Files

  • Suitable for these vehicles

    • OEM
      d4111, d4121, d4124, d4143, d4159, F032131400, 1877361, 1940548, 1940624, 1965724, 1970538, 1970548, 1978517, 1979792, 10470773, 10496043, 10498863

    • Normalised article numbler
      d4111, d4121, d4124, d4143, d4159, f032131400, wsa1581, 1759, 2280, 61107, 611071, 1877361, 1940548, 1940624, 1965724, 1970538, 1970548, 1978517, 1979792, 6110725, 10470773, 10496043, 10498863
