Article no.: F032131401

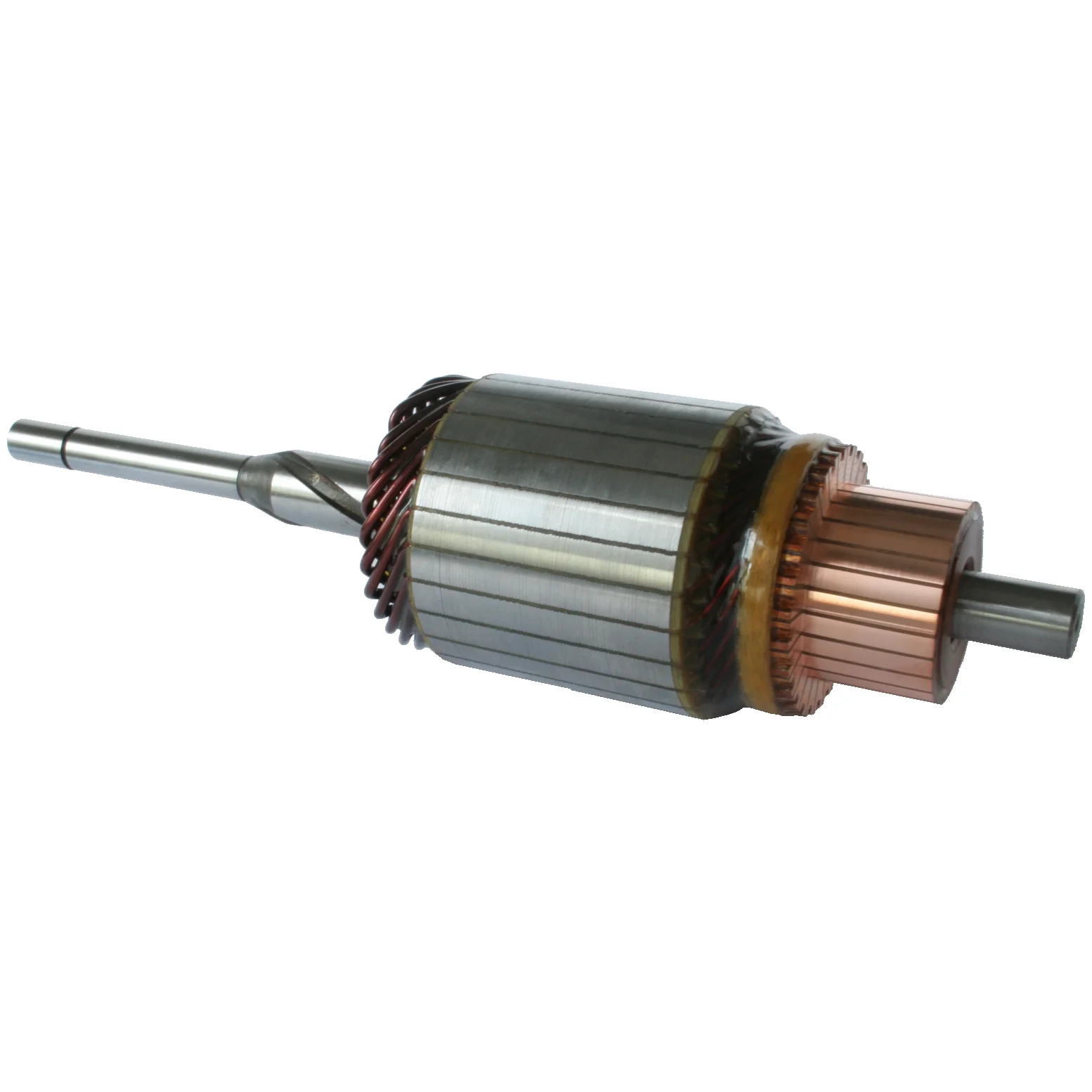

Armature / Rotor

Technical info:

Voltage: 12, Rotation: CW, Core dia.: 69.00, Shaft dia./C.E.: 14.20

Description

Voltage: 12
Core diameter: 69.00
Shaft diameter / C.E.: 14.20
Shaft diameter / D.E. inside: 12.00
Shaft diameter / D.E. outside: 12.00
Shaft diameter: 19.00
Shaft length: 282.00
Number / splines: 3
Rotation: CW
Distributor / Armature: 23.30
Armature dia. / bar lane: 42.70
Number / bars: 27
Servicing: 8MT

Files

  • OEM
    d4119, d4122, d4125, F032131401, 830540, 830842, 1954273, 1954473, 1955937, 1966224, 1966228, 1966288, 1971563, 1971568, 1978449, 1992258, 10496042

  • Normalised article numbler
    d4119, d4122, d4125, f032131401, wsa1582, 2282, 830540, 830842, 1954273, 1954473, 1955937, 1966224, 1966228, 1966288, 1971563, 1971568, 1978449, 1992258, 10496042
  • Description
    Voltage: 12
    Core diameter: 69.00
    Shaft diameter / C.E.: 14.20
    Shaft diameter / D.E. inside: 12.00
    Shaft diameter / D.E. outside: 12.00
    Shaft diameter: 19.00
    Shaft length: 282.00
    Number / splines: 3
    Rotation: CW
    Distributor / Armature: 23.30
    Armature dia. / bar lane: 42.70
    Number / bars: 27
    Servicing: 8MT

    Files

  • Suitable for these vehicles

    • OEM
      d4119, d4122, d4125, F032131401, 830540, 830842, 1954273, 1954473, 1955937, 1966224, 1966228, 1966288, 1971563, 1971568, 1978449, 1992258, 10496042

    • Normalised article numbler
      d4119, d4122, d4125, f032131401, wsa1582, 2282, 830540, 830842, 1954273, 1954473, 1955937, 1966224, 1966228, 1966288, 1971563, 1971568, 1978449, 1992258, 10496042
