Article no.: F032131470

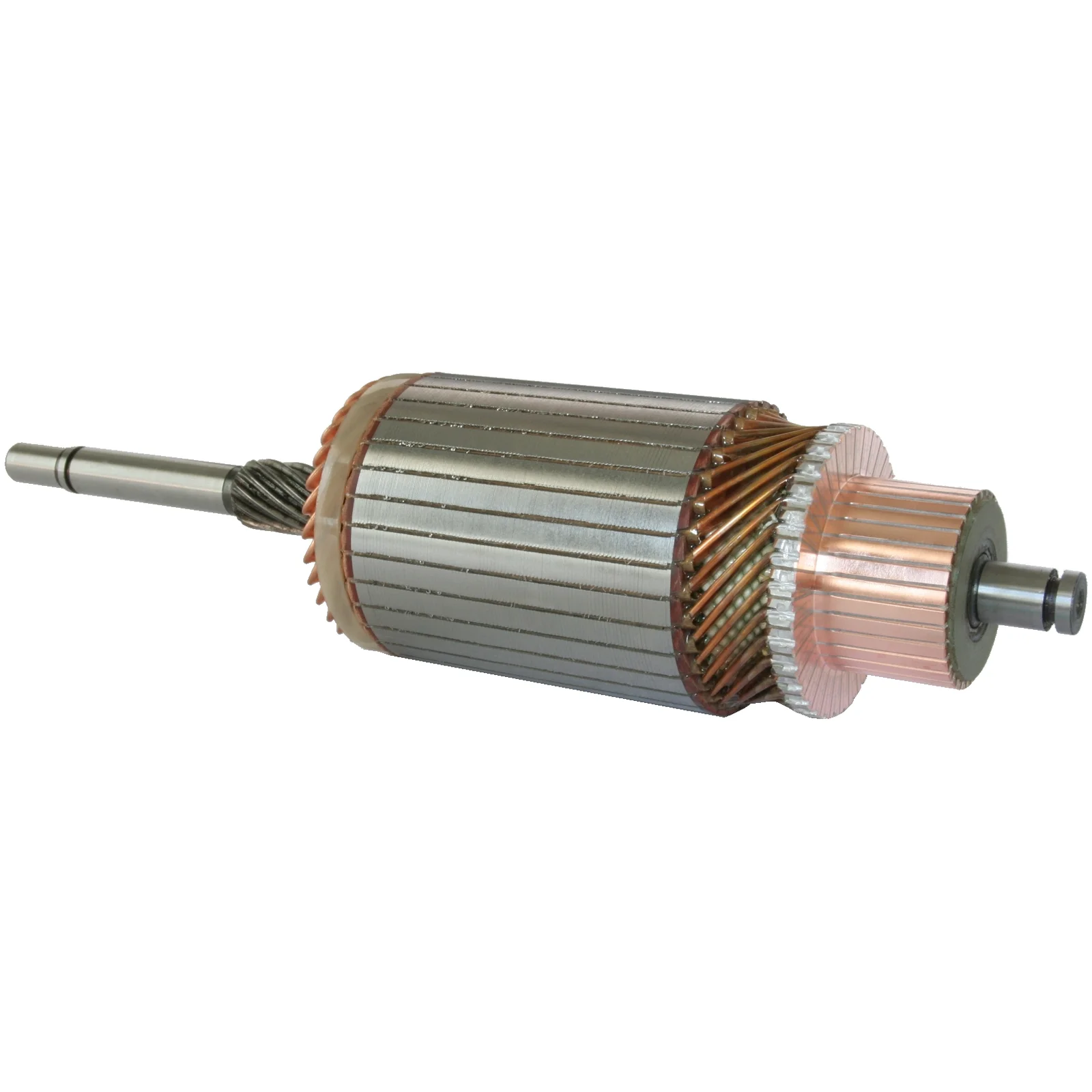

Armature / Rotor

Technical info:

Voltage: 24, kW: 4.0, Rotation: CW, Core diameter: 75.00

Description

Voltage: 24
kW: 4.0
Core dia.: 75.00
Shaft dia./C.E.: 14.00
Shaft dia./D.E. inside: 14.15
Shaft dia./D.E. outside: 12.50
Shaft dia.: 20.00
Shaft length: 317.50
No./splines: 12
Rotation: CW
Dist./commutator: 22.00
Commutator dia./bar lane: 46.10
Bar dist.: 2.00
Bar cross dist.: 46.80
Height/bar lane: 29.80
No./bars: 33
