Article no.: F032131654

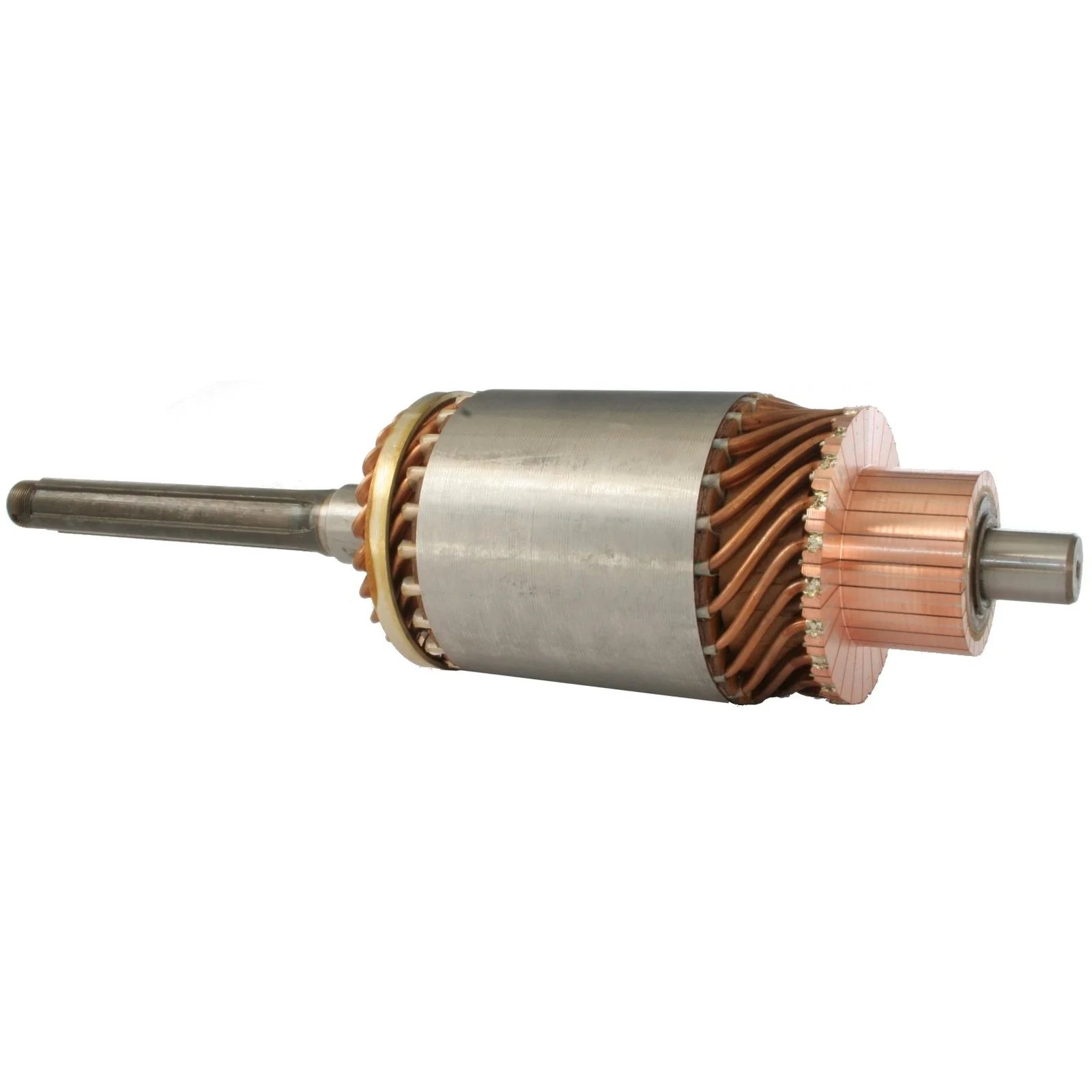

Armature / Rotor

Technical info:

Voltage: 12, kW: 2.1, Rotation: CW, Core diameter: 74.50

Description

Voltage: 12
kW: 2.1
Core diameter: 74.50
Shaft diameter/C.E.: 15.90
Shaft diameter/D.E. inside: 19.00
Shaft diameter: 22.20
Shaft length: 319.30
Number of splines: 4
Rotation: CW
Dist./Armature: 20.30
Armature dia./End cover lane: 42.00
End cover lane distance: 3.00
End cover lane cross distance: 49.60
Height/end cover lane: 26.30
Number of bars: 23
Servicing: M45G

Files

  • Description
    Voltage: 12
    kW: 2.1
    Core diameter: 74.50
    Shaft diameter/C.E.: 15.90
    Shaft diameter/D.E. inside: 19.00
    Shaft diameter: 22.20
    Shaft length: 319.30
    Number of splines: 4
    Rotation: CW
    Dist./Armature: 20.30
    Armature dia./End cover lane: 42.00
    End cover lane distance: 3.00
    End cover lane cross distance: 49.60
    Height/end cover lane: 26.30
    Number of bars: 23
    Servicing: M45G
