Article no.: F032131663

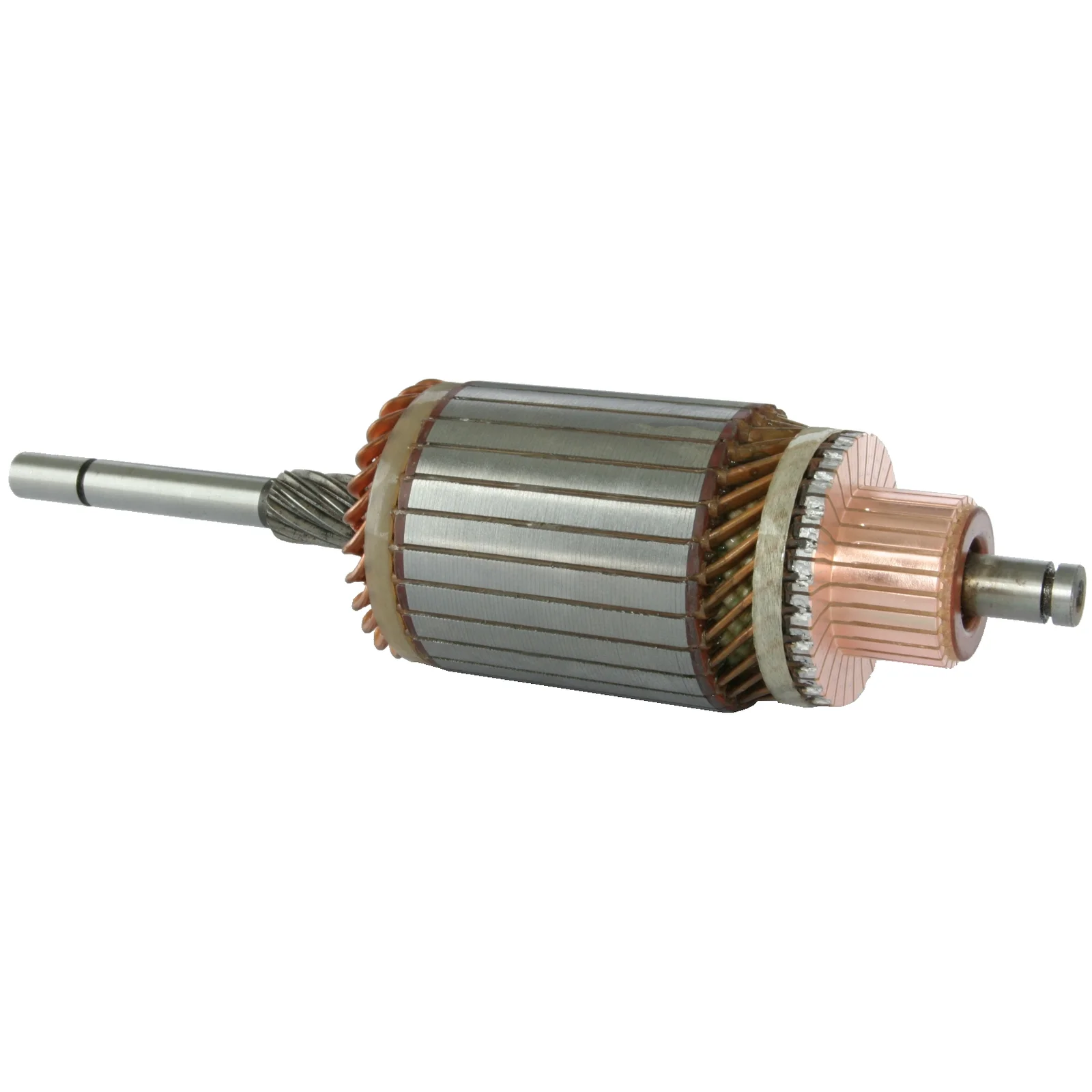

Armature / Rotor

Technical info:

Voltage: 12, kW: 1.5, Rotation: CW, Core diameter: 65.00

Description

Voltage: 12
kW: 1.5
Core dia.: 65.00
Shaft dia./C.E.: 12.50
Shaft dia./D.E. inside: 12.00
Shaft dia./D.E. outside: 12.00
Shaft dia.: 17.30
Shaft length: 263.00
No./splines: 10
Rotation: CW
Dist./commutator: 21.00
Commutator dia./bar lane: 35.50
Bar dist.: 2.60
Bar cross dist.: 36.20
Height/bar lane: 21.00
No./bars: 27

Files

  • OEM
    F032131663, 1004003130, 1004003133, 1004003138, 1004003142, 1004003170, 1004003912, 9001049121

  • Normalised article numbler
    f032131663, sa0040, wsa1877, wsa1910, 619118, 1004003130, 1004003133, 1004003138, 1004003142, 1004003170, 1004003912, 9001049121
  • Description
    Voltage: 12
    kW: 1.5
    Core dia.: 65.00
    Shaft dia./C.E.: 12.50
    Shaft dia./D.E. inside: 12.00
    Shaft dia./D.E. outside: 12.00
    Shaft dia.: 17.30
    Shaft length: 263.00
    No./splines: 10
    Rotation: CW
    Dist./commutator: 21.00
    Commutator dia./bar lane: 35.50
    Bar dist.: 2.60
    Bar cross dist.: 36.20
    Height/bar lane: 21.00
    No./bars: 27

    Files

  • Suitable for these vehicles

    • OEM
      F032131663, 1004003130, 1004003133, 1004003138, 1004003142, 1004003170, 1004003912, 9001049121

    • Normalised article numbler
      f032131663, sa0040, wsa1877, wsa1910, 619118, 1004003130, 1004003133, 1004003138, 1004003142, 1004003170, 1004003912, 9001049121
