Article no.: F032131670

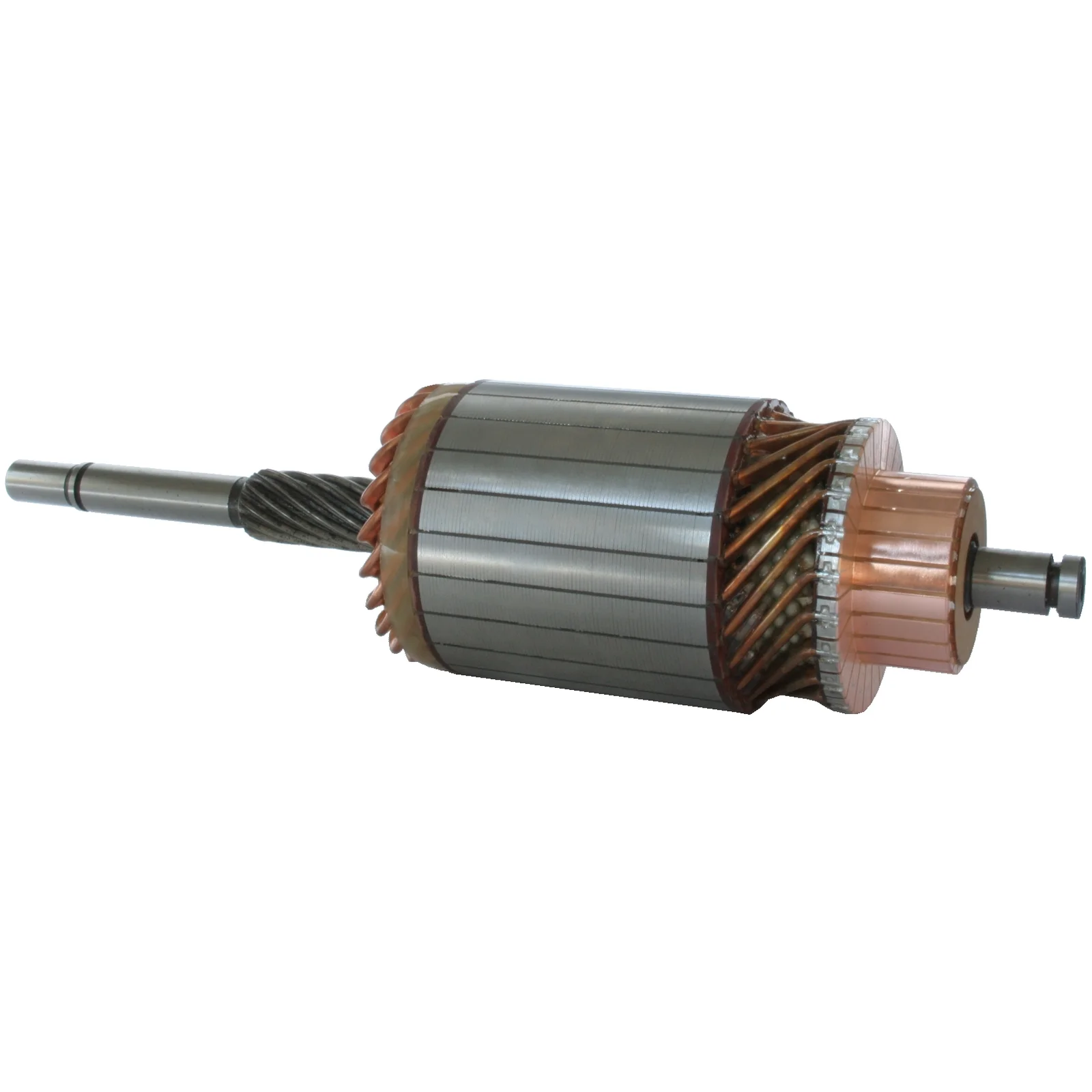

Armature / Rotor

Technical info:

Voltage: 12, kW: 2.5, Rotation: CW, Core diameter: 75.00

Description

Voltage: 12
kW: 2.5
Core diameter: 75.00
Shaft diameter/C.E.: 14.00
Shaft diameter/D.E. inside: 14.15
Shaft diameter/D.E. outside: 12.50
Shaft diameter: 20.00
Shaft length: 296.00
Number of splines: 12
Rotation: clockwise
Dist./commutator: 24.00
Commutator diameter/bar lane: 45.80
Bar distance: 3.00
Bar cross distance: 45.20
Height per bar lane: 20.70
Number of bars: 23

Files

  • Description
    Voltage: 12
    kW: 2.5
    Core diameter: 75.00
    Shaft diameter/C.E.: 14.00
    Shaft diameter/D.E. inside: 14.15
    Shaft diameter/D.E. outside: 12.50
    Shaft diameter: 20.00
    Shaft length: 296.00
    Number of splines: 12
    Rotation: clockwise
    Dist./commutator: 24.00
    Commutator diameter/bar lane: 45.80
    Bar distance: 3.00
    Bar cross distance: 45.20
    Height per bar lane: 20.70
    Number of bars: 23

    Files

  • Suitable for these vehicles
