Article no.: F032131947

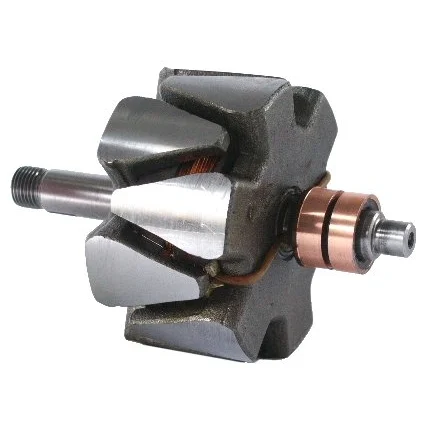

Armature / Rotor

Technical info:

Voltage: 14, Amp: 90, Rotation: CW, OD mm: 100.00

Description

Voltage: 14
Amp: 90
OD mm: 100.00
Height mm: 53.00
Radiator fan: w/o
Rotation: CW
Total length mm: 156.00
Shaft dia.: 17.00
Thread size: M16-1.50
Thread length mm: 14.50
Winding: 415
Core dia.: 51.40
Prod. info: N/A

Files

  • OEM
    F032131947, 1124035029, 1124035030, 1124035031, 1124035044, 1124035049, 1124035050, 1124035060, 1124035061, 1124035062, 1124035082, 1124035098, 1124035106, 1124035110, 1124035145, 1124035152, 1124035154, 1124035155, 1124035157, 1124035159, 1124035160, 1124035161, 1124035162, 1124035163, 1124035179, 1124035230, 1124035233, 1124035254

  • Normalised article numbler
    ar0085s, f032131947, wrt69703, wrt69707, wrt6978, wrt69788, wrt69789, 1124035029, 1124035030, 1124035031, 1124035044, 1124035049, 1124035050, 1124035060, 1124035061, 1124035062, 1124035082, 1124035098, 1124035106, 1124035110, 1124035145, 1124035152, 1124035154, 1124035155, 1124035157, 1124035159, 1124035160, 1124035161, 1124035162, 1124035163, 1124035179, 1124035230, 1124035233, 1124035254
  • Description
    Voltage: 14
    Amp: 90
    OD mm: 100.00
    Height mm: 53.00
    Radiator fan: w/o
    Rotation: CW
    Total length mm: 156.00
    Shaft dia.: 17.00
    Thread size: M16-1.50
    Thread length mm: 14.50
    Winding: 415
    Core dia.: 51.40
    Prod. info: N/A

    Files

  • Suitable for these vehicles

    • OEM
      F032131947, 1124035029, 1124035030, 1124035031, 1124035044, 1124035049, 1124035050, 1124035060, 1124035061, 1124035062, 1124035082, 1124035098, 1124035106, 1124035110, 1124035145, 1124035152, 1124035154, 1124035155, 1124035157, 1124035159, 1124035160, 1124035161, 1124035162, 1124035163, 1124035179, 1124035230, 1124035233, 1124035254

    • Normalised article numbler
      ar0085s, f032131947, wrt69703, wrt69707, wrt6978, wrt69788, wrt69789, 1124035029, 1124035030, 1124035031, 1124035044, 1124035049, 1124035050, 1124035060, 1124035061, 1124035062, 1124035082, 1124035098, 1124035106, 1124035110, 1124035145, 1124035152, 1124035154, 1124035155, 1124035157, 1124035159, 1124035160, 1124035161, 1124035162, 1124035163, 1124035179, 1124035230, 1124035233, 1124035254
