Article no.: F032131957

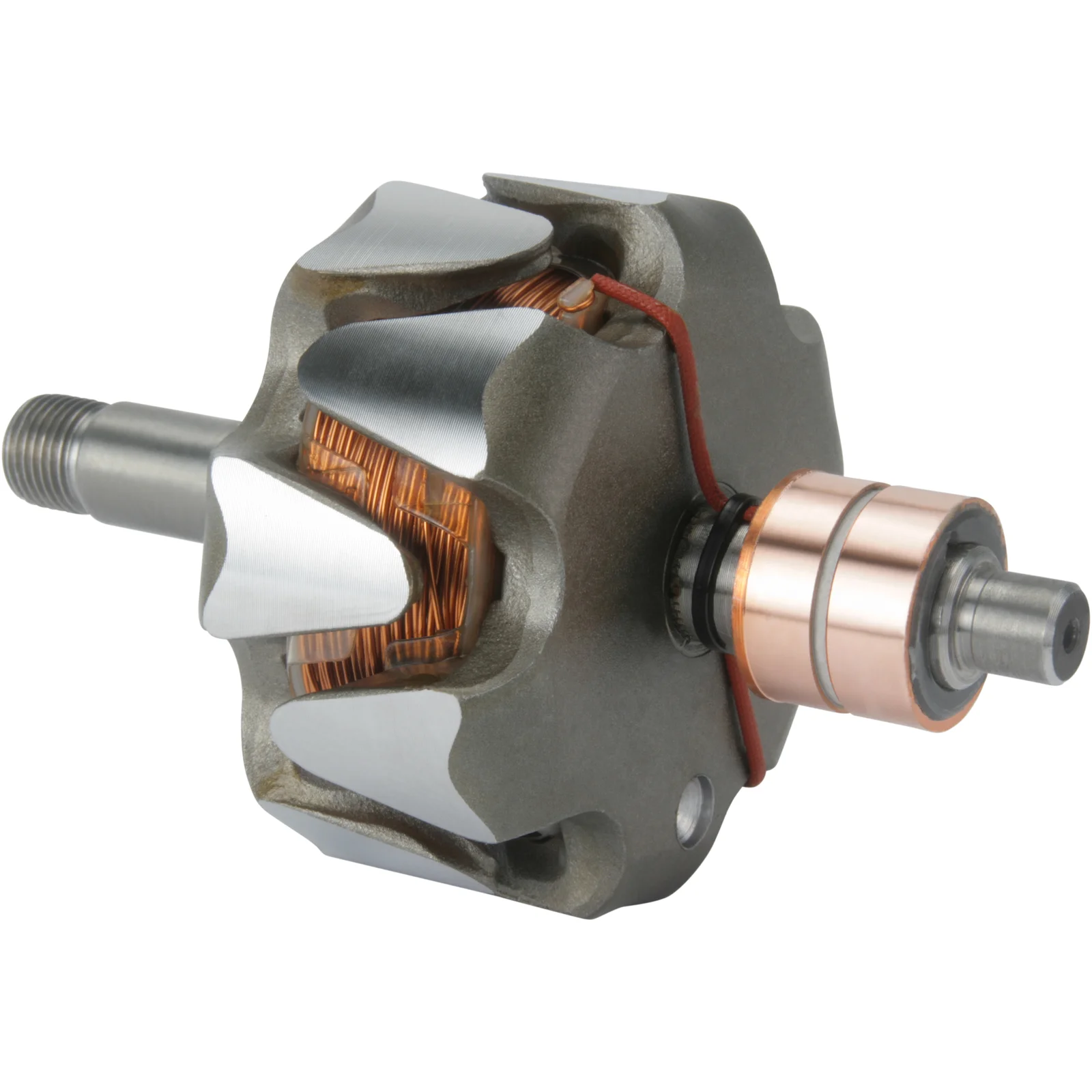

Armature / Rotor

Technical info:

Voltage: 14, Amp: 65, Rotation: CW, OD mm: 89.00

Description

Voltage: 14
Amp: 65
OD mm: 89.00
Height mm: 49.00
Radiator fan: w/o
Rotation: CW
Total length mm: 153.90
Shaft dia.: 17.00
Thread size: M16-1.50
Thread length mm: 13.50
Windings: 412
Core dia.: 47.50
Prod. info: N/A

Files

  • OEM
    F032131957, 6033gd2047, 1124034244, 1124034317, 1124034330, 1124034341, 1124034354, 1124034362, 1124034589, 1124034649, 1124034667, 1124034668

  • Normalised article numbler
    ar0027, f032131957, wrt6985, 6033gd2047, 1124034244, 1124034317, 1124034330, 1124034341, 1124034354, 1124034362, 1124034589, 1124034649, 1124034667, 1124034668
  • Description
    Voltage: 14
    Amp: 65
    OD mm: 89.00
    Height mm: 49.00
    Radiator fan: w/o
    Rotation: CW
    Total length mm: 153.90
    Shaft dia.: 17.00
    Thread size: M16-1.50
    Thread length mm: 13.50
    Windings: 412
    Core dia.: 47.50
    Prod. info: N/A

    Files

  • Suitable for these vehicles

    • OEM
      F032131957, 6033gd2047, 1124034244, 1124034317, 1124034330, 1124034341, 1124034354, 1124034362, 1124034589, 1124034649, 1124034667, 1124034668

    • Normalised article numbler
      ar0027, f032131957, wrt6985, 6033gd2047, 1124034244, 1124034317, 1124034330, 1124034341, 1124034354, 1124034362, 1124034589, 1124034649, 1124034667, 1124034668
