Article no.: F032132153

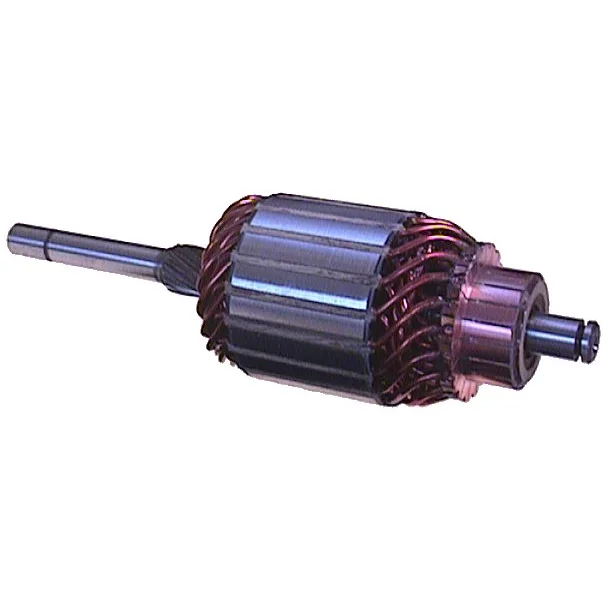

Armature / Rotor

Technical info:

Voltage: 12, kW: 0.8/0.85/0.95, Rotation: CW, Core diameter: 60.00

Description

Voltage: 12
kW: 0.8/0.85/0.95
Core diameter: 60.00
Shaft diameter / C.E.: 12.60
Shaft diameter / D.E. inside: 12.00
Shaft diameter / D.E. outside: 12.00
Shaft diameter: 17.70
Shaft length: 217.00
Number / splines: 10
Rotation: CW
Dist. / commutator: 18.20
Commutator diameter / bar lane: 36.10
Bar distance: 2.80
Bar cross distance: 37.30
Height / bar lane: 14.80
Number / bars: 19

Files

  • OEM
    F032132153, 1004012421, 1004012422, 1004012432, 1004012905, 9001304001, 9001334001

  • Normalised article numbler
    f032132153, sa0023, wsa5863, wsa59009, 1004012421, 1004012422, 1004012432, 1004012905, 9001304001, 9001334001
  • Description
    Voltage: 12
    kW: 0.8/0.85/0.95
    Core diameter: 60.00
    Shaft diameter / C.E.: 12.60
    Shaft diameter / D.E. inside: 12.00
    Shaft diameter / D.E. outside: 12.00
    Shaft diameter: 17.70
    Shaft length: 217.00
    Number / splines: 10
    Rotation: CW
    Dist. / commutator: 18.20
    Commutator diameter / bar lane: 36.10
    Bar distance: 2.80
    Bar cross distance: 37.30
    Height / bar lane: 14.80
    Number / bars: 19

    Files

  • Suitable for these vehicles

    • OEM
      F032132153, 1004012421, 1004012422, 1004012432, 1004012905, 9001304001, 9001334001

    • Normalised article numbler
      f032132153, sa0023, wsa5863, wsa59009, 1004012421, 1004012422, 1004012432, 1004012905, 9001304001, 9001334001
