Article no.: F032132158

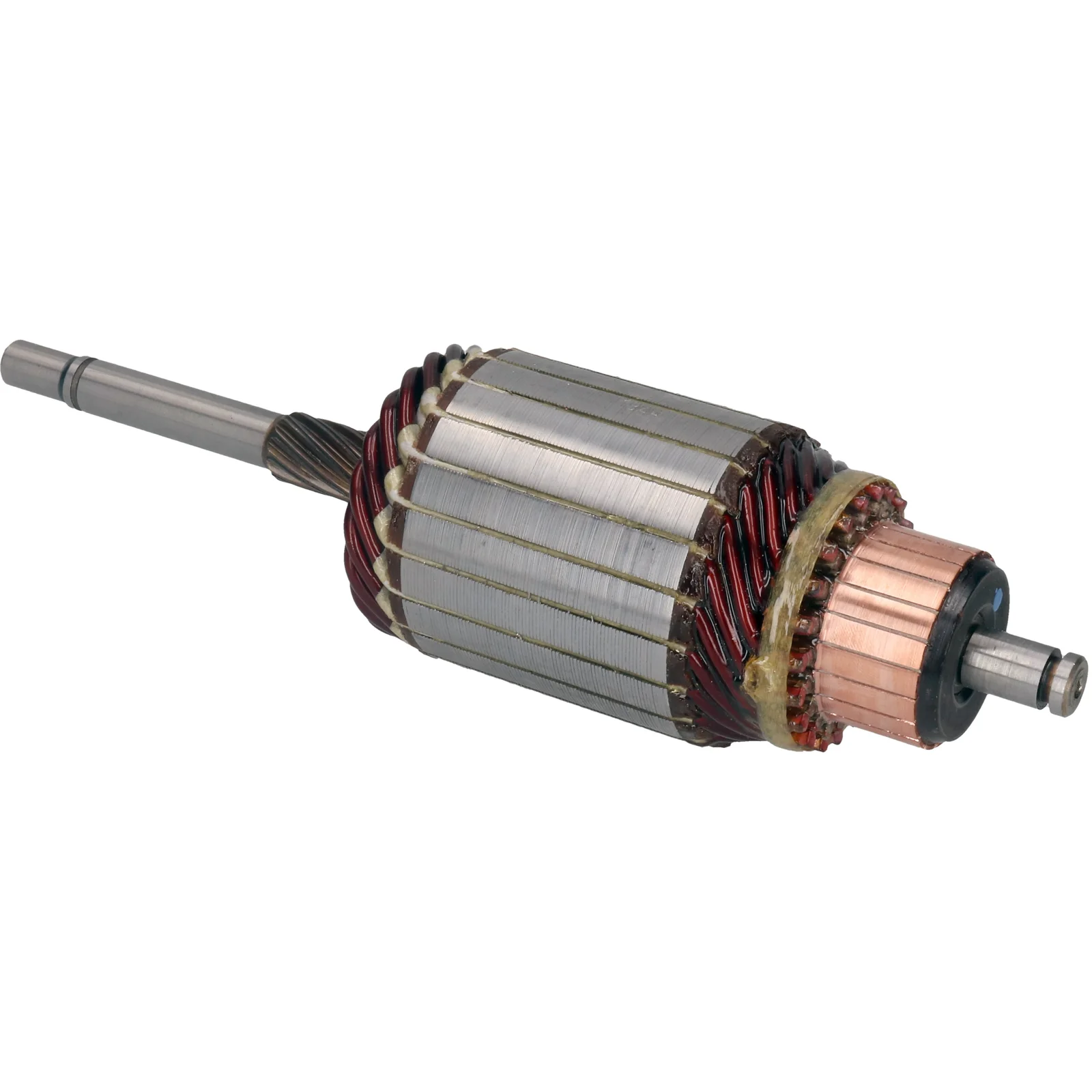

Armature / Rotor

Technical info:

Voltage: 12, kW: 1.9-2.7, Rotation: CW, Core dia.: 75.00

Description

Voltage: 12
kW: 1.9-2.7
Core dia.: 75.00
Shaft dia./C.E.: 14.00
Shaft dia./D.E. inside: 14.15
Shaft dia./D.E. outside: 12.50
Shaft dia.: 18.75
Shaft length: 290.50
No./splines: 10
Rotation: CW
Dist./commutator: 26.00
Commutator dia./bar lane: 45.00
Bar dist.: 2.60
Bar cross dist.: 49.70
Height/bar lane: 21.50
No./bars: 21
Remarks: 9 V: HC-CARGO 133098.

Files

  • Description
    Voltage: 12
    kW: 1.9-2.7
    Core dia.: 75.00
    Shaft dia./C.E.: 14.00
    Shaft dia./D.E. inside: 14.15
    Shaft dia./D.E. outside: 12.50
    Shaft dia.: 18.75
    Shaft length: 290.50
    No./splines: 10
    Rotation: CW
    Dist./commutator: 26.00
    Commutator dia./bar lane: 45.00
    Bar dist.: 2.60
    Bar cross dist.: 49.70
    Height/bar lane: 21.50
    No./bars: 21
    Remarks: 9 V: HC-CARGO 133098.

    Files

  • Suitable for these vehicles
