Article no.: F032132340

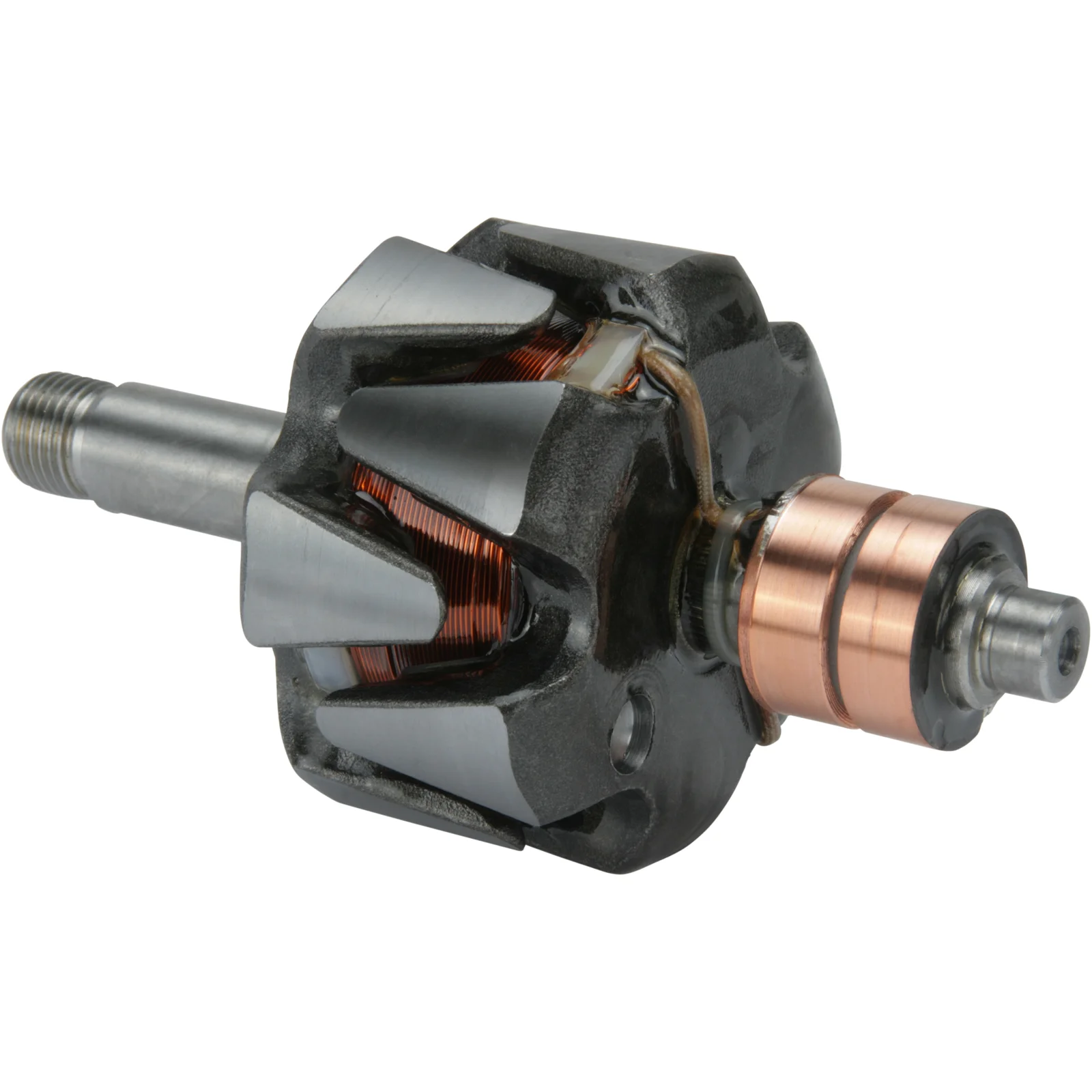

Armature / Rotor

Technical info:

Voltage: 14, Amp: 33, Rotation: CW, OD mm: 73.40

Description

Voltage: 14
Amp: 33
OD mm: 73.40
Height mm: 46.60
Cooling fan: w/o
Rotation: CW
Total length mm: 147.00
Shaft dia.: 17.00
Thread size: M16-1.50
Thread length mm: 13.50
Windings: 440
Core dia.: 38.60

Files

  • OEM
    AL23850, F032132340, 16.905.223, 16.906.273, 1124033005, 1124033007, 1124033011, 1124033015, 1124033019, 1124033024, 1124033035, 1124033036, 1124033047, 1124033050, 9121334086, 9121334089, 9121334092, 9121334098, 9121334099, 9124334089

  • Normalised article numbler
    al23850, ar0090s, f032132340, mgx103, mgx459, mgx459kit, wrt6981, 16905223, 16906273, 1124033005, 1124033007, 1124033011, 1124033015, 1124033019, 1124033024, 1124033035, 1124033036, 1124033047, 1124033050, 9121334086, 9121334089, 9121334092, 9121334098, 9121334099, 9124334089
  • Description
    Voltage: 14
    Amp: 33
    OD mm: 73.40
    Height mm: 46.60
    Cooling fan: w/o
    Rotation: CW
    Total length mm: 147.00
    Shaft dia.: 17.00
    Thread size: M16-1.50
    Thread length mm: 13.50
    Windings: 440
    Core dia.: 38.60

    Files

  • Suitable for these vehicles

    • OEM
      AL23850, F032132340, 16.905.223, 16.906.273, 1124033005, 1124033007, 1124033011, 1124033015, 1124033019, 1124033024, 1124033035, 1124033036, 1124033047, 1124033050, 9121334086, 9121334089, 9121334092, 9121334098, 9121334099, 9124334089

    • Normalised article numbler
      al23850, ar0090s, f032132340, mgx103, mgx459, mgx459kit, wrt6981, 16905223, 16906273, 1124033005, 1124033007, 1124033011, 1124033015, 1124033019, 1124033024, 1124033035, 1124033036, 1124033047, 1124033050, 9121334086, 9121334089, 9121334092, 9121334098, 9121334099, 9124334089
