Article no.: F032132401

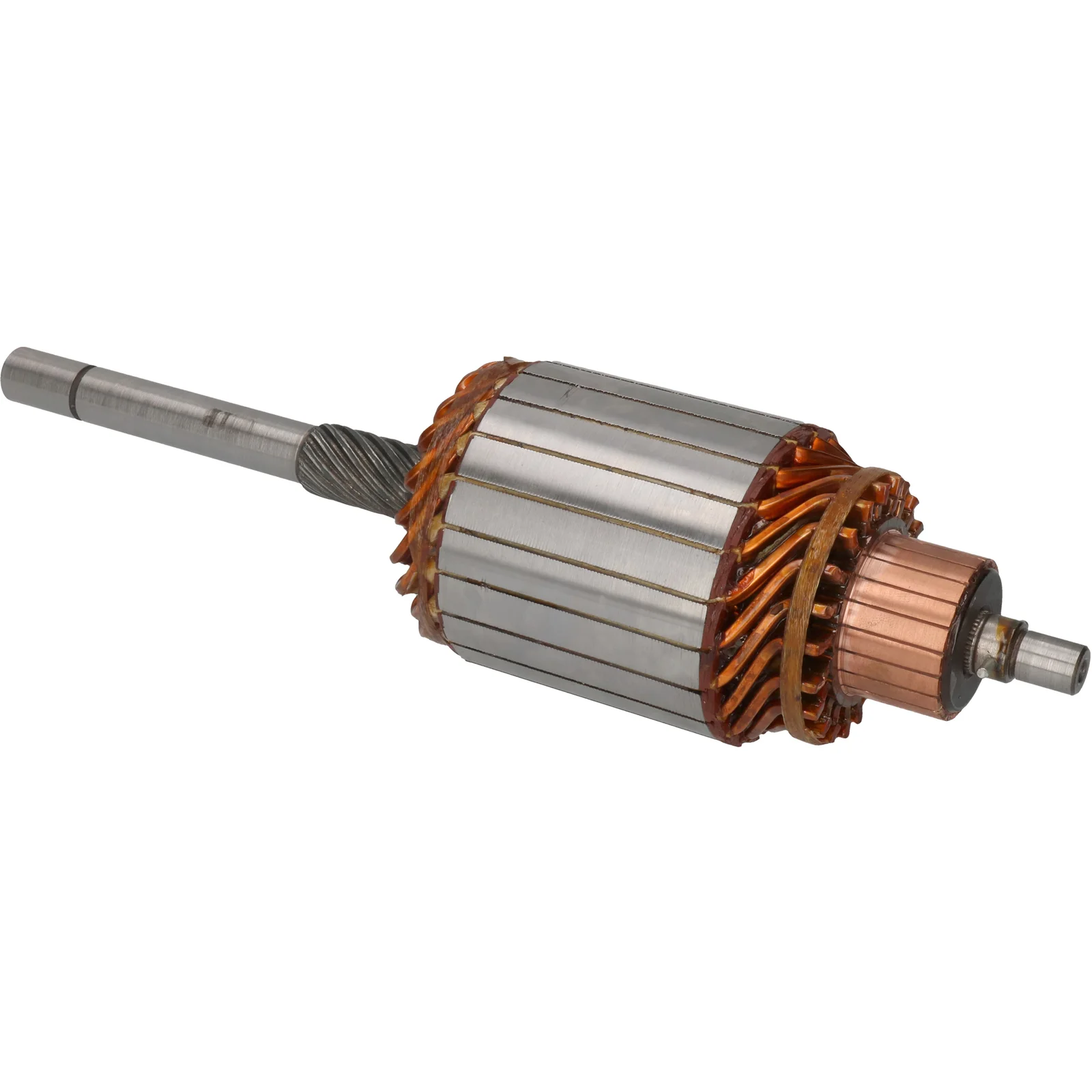

Armature / Rotor

Technical info:

Voltage: 12, kW: 2.8/2.9, Rotation: CW, Core dia.: 84.00

Description

Voltage: 12
kW: 2.8/2.9
Core diameter: 84.00
Shaft diameter/C.E.: 12.70
Shaft diameter/D.E. inside: 17.00
Shaft diameter/D.E. outside: 17.00
Shaft diameter: 28.40
Shaft length: 333.00
Number of/ splines: 12
Rotation: CW
Distance / commutator: 27.00
Commutator diameter / bar lane: 42.80
Bar distance: 3.65
Bar cross distance: 54.20
Height / bar lane: 25.00
Number of / bars: 21
Servicing: M127

Files

  • Description
    Voltage: 12
    kW: 2.8/2.9
    Core diameter: 84.00
    Shaft diameter/C.E.: 12.70
    Shaft diameter/D.E. inside: 17.00
    Shaft diameter/D.E. outside: 17.00
    Shaft diameter: 28.40
    Shaft length: 333.00
    Number of/ splines: 12
    Rotation: CW
    Distance / commutator: 27.00
    Commutator diameter / bar lane: 42.80
    Bar distance: 3.65
    Bar cross distance: 54.20
    Height / bar lane: 25.00
    Number of / bars: 21
    Servicing: M127

    Files

  • Suitable for these vehicles
