Article no.: F032132553

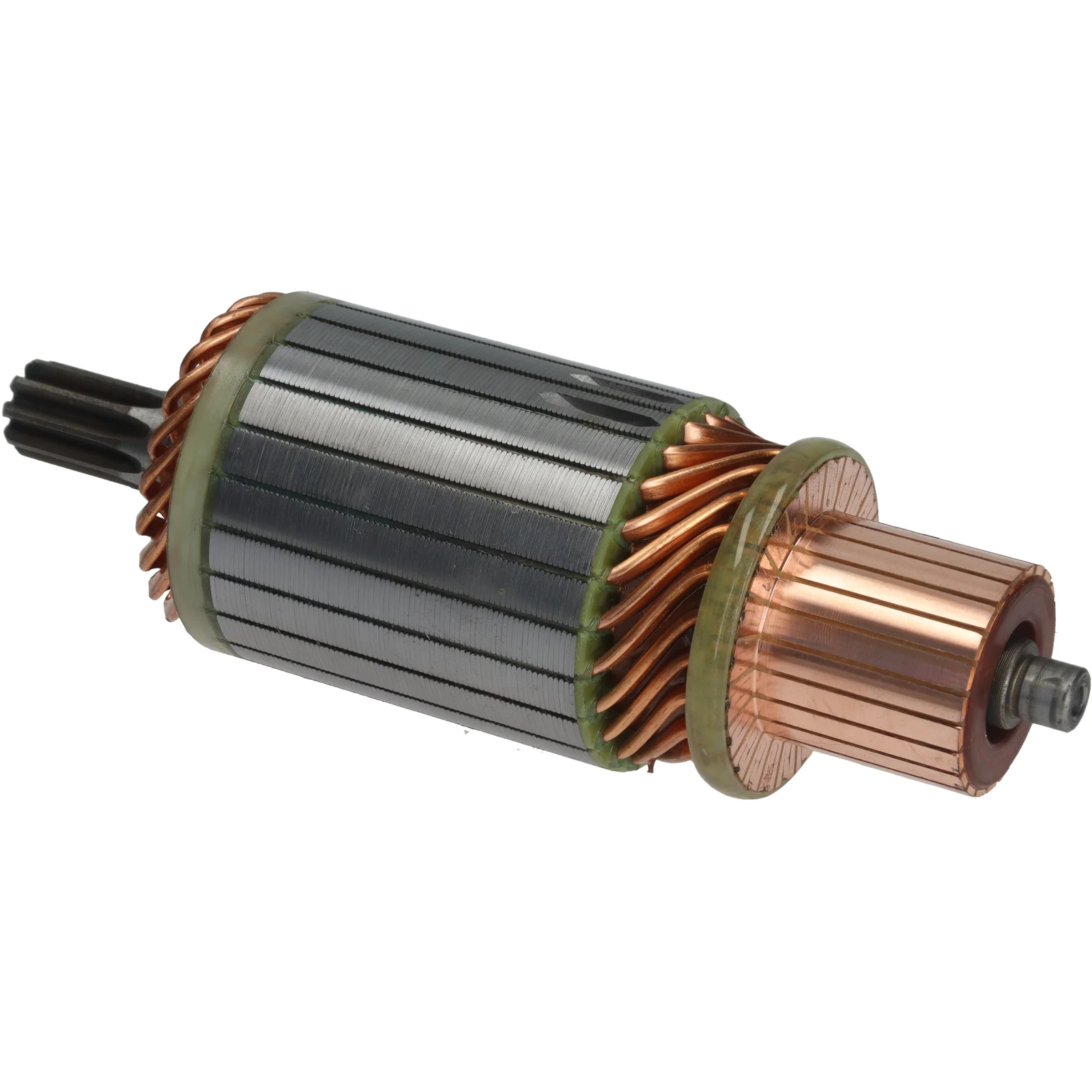

Armature / Rotor

Technical info:

Voltage: 24, kW: 4.5, No./teeth: 9, Rotation: CW/CCW

Description

Voltage: 24
kW: 4.5
Core diameter: 60.00
Shaft diameter / C.E.: 10.00
Shaft diameter / D.E. inside: 17.00
Shaft length: 187.00
Rotation: CW/CCW
Number / teeth: 9
Dist. / commutator: 10.50
Commutator diameter / bar lane: 35.50
Bar dist.: 2.40
Bar cross dist.: 35.00
Height / bar lane: 30.80
Number / bars: 23

Files

  • OEM
    F032132553, 27160-77090, 28160-77090, 028200-1590, 028200-2230

  • Normalised article numbler
    f032132553, f042040081, f042040082, f042s40081, f042s40082, sa6002, wsa1944, 618209, 0282001590, 0282002230, 2716077090, 2816077090
  • Description
    Voltage: 24
    kW: 4.5
    Core diameter: 60.00
    Shaft diameter / C.E.: 10.00
    Shaft diameter / D.E. inside: 17.00
    Shaft length: 187.00
    Rotation: CW/CCW
    Number / teeth: 9
    Dist. / commutator: 10.50
    Commutator diameter / bar lane: 35.50
    Bar dist.: 2.40
    Bar cross dist.: 35.00
    Height / bar lane: 30.80
    Number / bars: 23

    Files

  • Suitable for these vehicles

    • OEM
      F032132553, 27160-77090, 28160-77090, 028200-1590, 028200-2230

    • Normalised article numbler
      f032132553, f042040081, f042040082, f042s40081, f042s40082, sa6002, wsa1944, 618209, 0282001590, 0282002230, 2716077090, 2816077090
