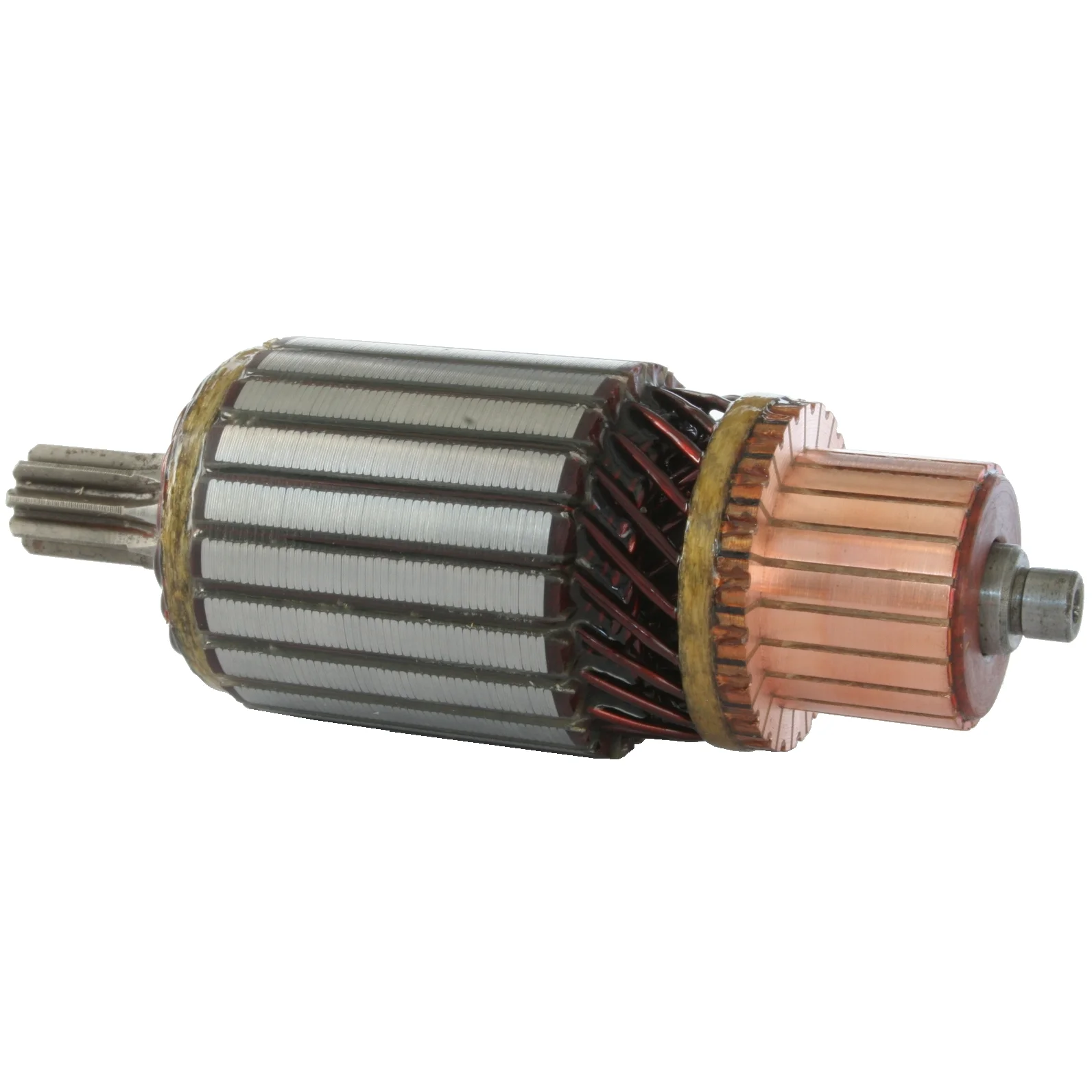

Article no.: F032132796

Armature / Rotor

Technical info:

Voltage: 12, kW: 0.9/1.0/1.2, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 0.9/1.0/1.2
Core dia.: 47.00
Shaft dia./C.E.: 8.00
Shaft dia./D.E. inside: 15.00
Shaft length: 135.00
Rotation: CW
No./teeth: 9
Dist./commutator: 8.90
Commutator dia./bar lane: 30.20
Bar dist.: 1.80
Bar cross dist.: 31.20
Height/bar lane: 21.30
No./bars: 21

Files

  • OEM
    F032132796, 5-81121031-0, 021200-2120, 28160-26070, 028200-1531, 028200-2120, 028200-4540, 31207-657-671, 49200-7212

  • Normalised article numbler
    f032132796, sa6004, wsa1938, 618202, 618206, 0212002120, 0282001531, 0282002120, 0282004540, 492007212, 2816026070, 5811210310, 31207657671
  • Description
    Voltage: 12
    kW: 0.9/1.0/1.2
    Core dia.: 47.00
    Shaft dia./C.E.: 8.00
    Shaft dia./D.E. inside: 15.00
    Shaft length: 135.00
    Rotation: CW
    No./teeth: 9
    Dist./commutator: 8.90
    Commutator dia./bar lane: 30.20
    Bar dist.: 1.80
    Bar cross dist.: 31.20
    Height/bar lane: 21.30
    No./bars: 21

    Files

  • Suitable for these vehicles

    • OEM
      F032132796, 5-81121031-0, 021200-2120, 28160-26070, 028200-1531, 028200-2120, 028200-4540, 31207-657-671, 49200-7212

    • Normalised article numbler
      f032132796, sa6004, wsa1938, 618202, 618206, 0212002120, 0282001531, 0282002120, 0282004540, 492007212, 2816026070, 5811210310, 31207657671
