Article no.: F032132814

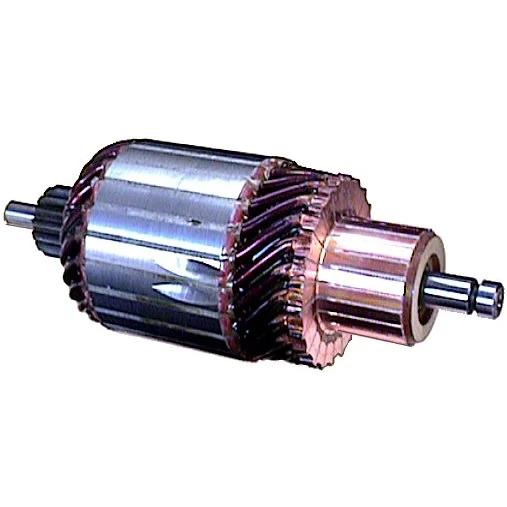

Armature / Rotor

Technical info:

Voltage: 12, kW: 1.7/1.8, No./teeth: 15, Rotation: CW/CCW

Description

Voltage: 12
kW: 1.7/1.8
Core diameter: 60.00
Shaft diameter / C.E.: 10.00
Shaft diameter / D.E. outside: 8.00
Shaft length: 161.00
Rotation: CW/CCW
Number / teeth: 15
Dist. / commutator: 18.30
Commutator diameter / bar lane: 33.00
Bar distance: 3.45
Bar cross distance: 41.20
Height / bar lane: 22.00
Number / bars: 23
Remarks: 9 V: HC-CARGO 134887.

Files

  • OEM
    F032132814, 1004011022, 1004011025, 1004011031, 1004011036, 1004011044, 1004011047, 1004011056, 1004011066, 1004011901

  • Normalised article numbler
    am2200, am22001, f032132814, f042040028, f042s40028, sa0027, sa0035, wsa5853, 619131, 1004011022, 1004011025, 1004011031, 1004011036, 1004011044, 1004011047, 1004011056, 1004011066, 1004011901
  • Description
    Voltage: 12
    kW: 1.7/1.8
    Core diameter: 60.00
    Shaft diameter / C.E.: 10.00
    Shaft diameter / D.E. outside: 8.00
    Shaft length: 161.00
    Rotation: CW/CCW
    Number / teeth: 15
    Dist. / commutator: 18.30
    Commutator diameter / bar lane: 33.00
    Bar distance: 3.45
    Bar cross distance: 41.20
    Height / bar lane: 22.00
    Number / bars: 23
    Remarks: 9 V: HC-CARGO 134887.

    Files

  • Suitable for these vehicles

    • OEM
      F032132814, 1004011022, 1004011025, 1004011031, 1004011036, 1004011044, 1004011047, 1004011056, 1004011066, 1004011901

    • Normalised article numbler
      am2200, am22001, f032132814, f042040028, f042s40028, sa0027, sa0035, wsa5853, 619131, 1004011022, 1004011025, 1004011031, 1004011036, 1004011044, 1004011047, 1004011056, 1004011066, 1004011901
