Article no.: F032132815

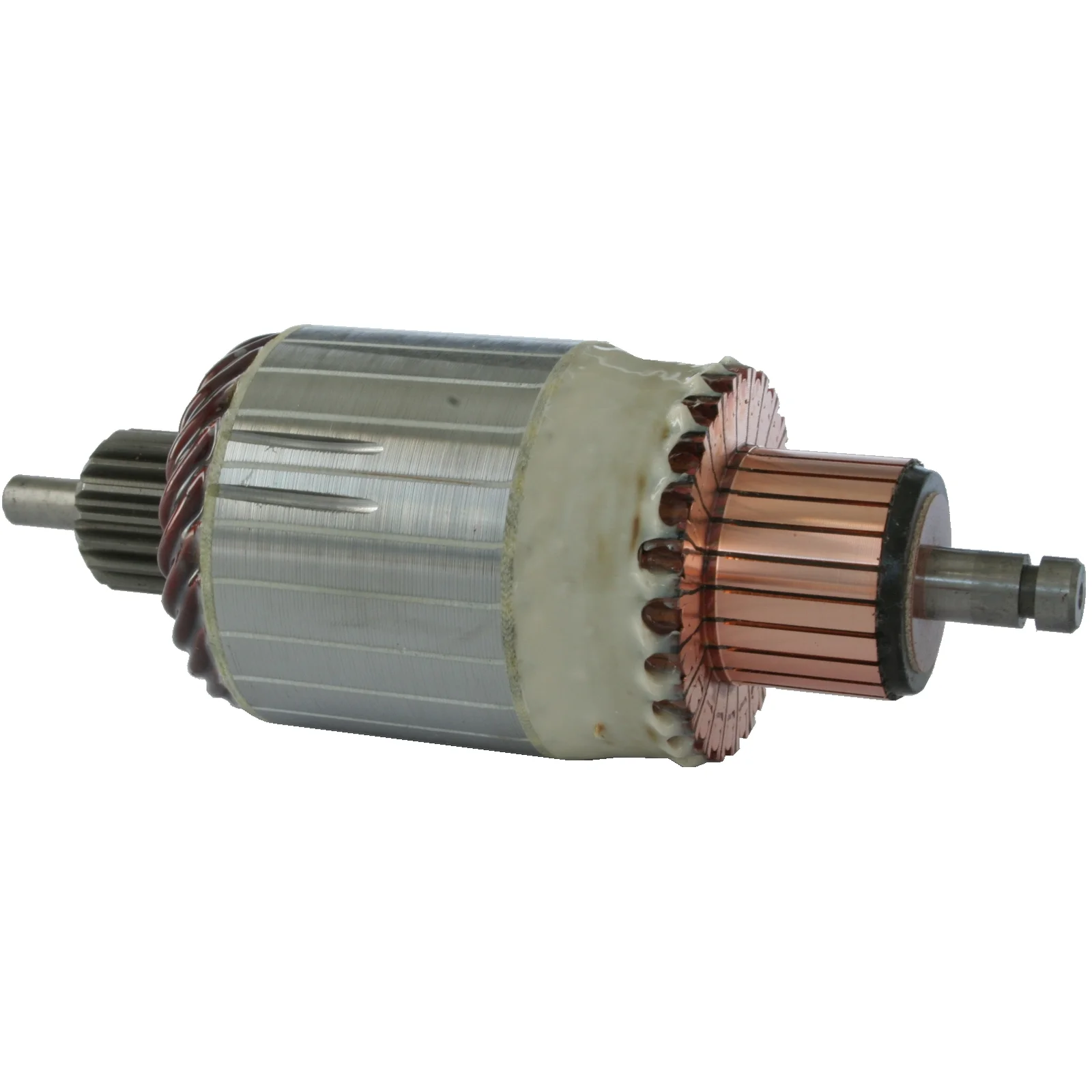

Armature / Rotor

Technical info:

Voltage: 12, kW: 1.7, No./teeth: 18, Rotation: CW/CCW

Description

Voltage: 12
kW: 1.7
Core diameter: 59.00
Shaft diameter / End cover: 10.00
Shaft diameter / Drive end outside: 8.00
Shaft length: 163.00
Rotation: CW / CCW
Number / teeth: 18
Dist./commutator: 20.00
Commutator diameter / Bar lane: 33.00
Bar distance: 3.45
Bar cross distance: 41.20
Height / bar lane: 22.00
Number / bars: 23

Files

  • OEM
    F032132815, 1004001033, 1004011030, 1004011033, 1004011037, 1004011038, 1004011048, 1004011206

  • Normalised article numbler
    am2214, f032132815, f042040030, sa0044, wsa5858, 619127, 1004001033, 1004011030, 1004011033, 1004011037, 1004011038, 1004011048, 1004011206
  • Description
    Voltage: 12
    kW: 1.7
    Core diameter: 59.00
    Shaft diameter / End cover: 10.00
    Shaft diameter / Drive end outside: 8.00
    Shaft length: 163.00
    Rotation: CW / CCW
    Number / teeth: 18
    Dist./commutator: 20.00
    Commutator diameter / Bar lane: 33.00
    Bar distance: 3.45
    Bar cross distance: 41.20
    Height / bar lane: 22.00
    Number / bars: 23

    Files

  • Suitable for these vehicles

    • OEM
      F032132815, 1004001033, 1004011030, 1004011033, 1004011037, 1004011038, 1004011048, 1004011206

    • Normalised article numbler
      am2214, f032132815, f042040030, sa0044, wsa5858, 619127, 1004001033, 1004011030, 1004011033, 1004011037, 1004011038, 1004011048, 1004011206
