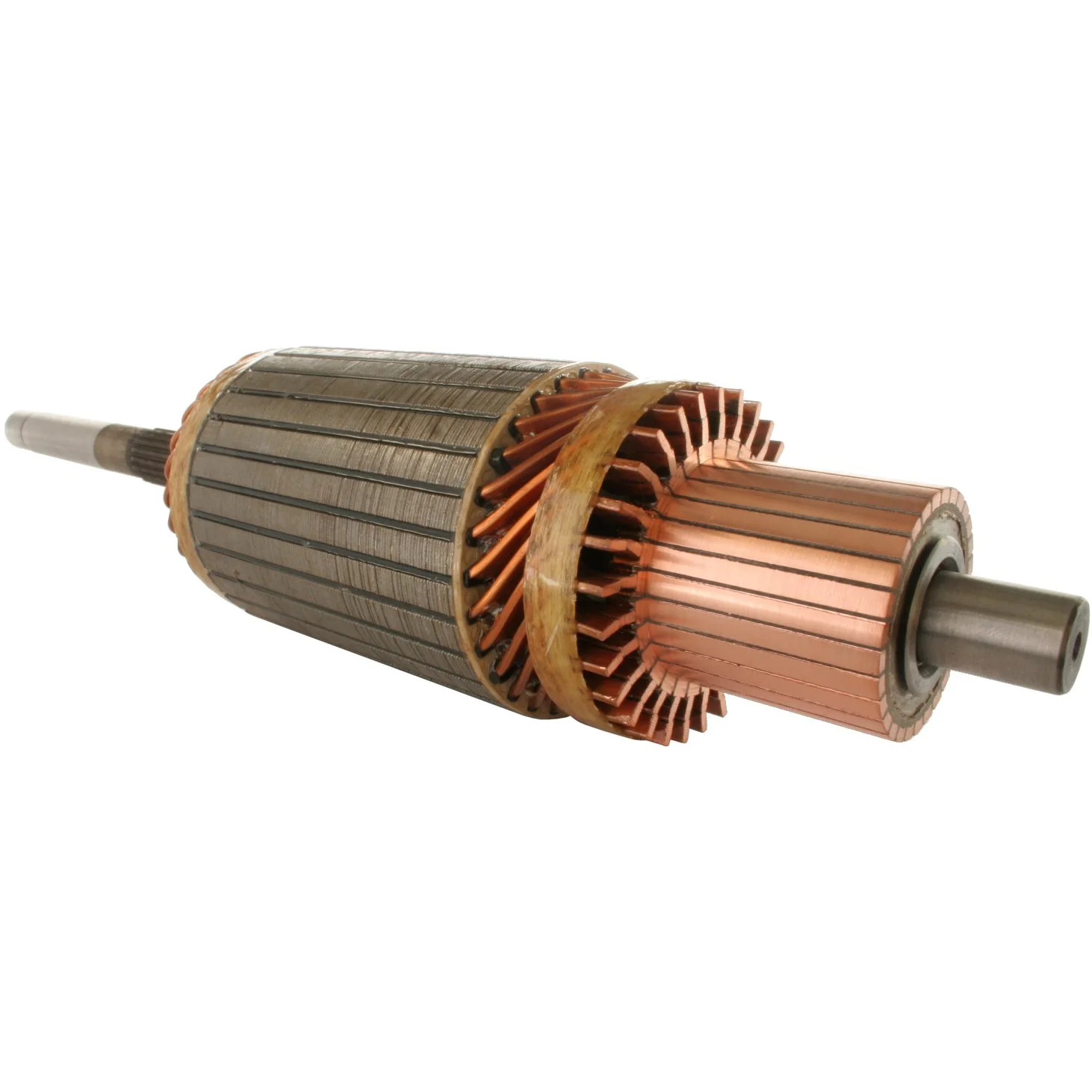

Article no.: F032132904

Armature / Rotor

Technical info:

Voltage: 24, kW: 7.5, Rotation: CW/CCW, Core diameter: 85.00

Description

Voltage: 24
kW: 7.5
Core dia.: 85.00
Shaft dia./C.E.: 18.00
Shaft dia./D.E. inside: 19.00
Shaft dia./D.E. outside: 18.00
Shaft dia.: 21.80
Shaft length: 428.50
No./splines: 19
Rotation: CW/CCW
Dist./commutator: 24.50
Commutator dia./bar lane: 50.00
Bar dist.: 2.55
Bar cross dist.: 48.10
Height/bar lane: 48.10
No./bars: 29

Files

  • OEM
    F032132904, 2004005003, 2004005004, 2004005061, 2004005906, 2004005907, 2004005918, 2007010059, 2007010061

  • Normalised article numbler
    f032132904, sa0042, wsa5890, 619120, 2004005003, 2004005004, 2004005061, 2004005906, 2004005907, 2004005918, 2007010059, 2007010061
  • Description
    Voltage: 24
    kW: 7.5
    Core dia.: 85.00
    Shaft dia./C.E.: 18.00
    Shaft dia./D.E. inside: 19.00
    Shaft dia./D.E. outside: 18.00
    Shaft dia.: 21.80
    Shaft length: 428.50
    No./splines: 19
    Rotation: CW/CCW
    Dist./commutator: 24.50
    Commutator dia./bar lane: 50.00
    Bar dist.: 2.55
    Bar cross dist.: 48.10
    Height/bar lane: 48.10
    No./bars: 29

    Files

  • Suitable for these vehicles

    • OEM
      F032132904, 2004005003, 2004005004, 2004005061, 2004005906, 2004005907, 2004005918, 2007010059, 2007010061

    • Normalised article numbler
      f032132904, sa0042, wsa5890, 619120, 2004005003, 2004005004, 2004005061, 2004005906, 2004005907, 2004005918, 2007010059, 2007010061
