Article no.: F032133084

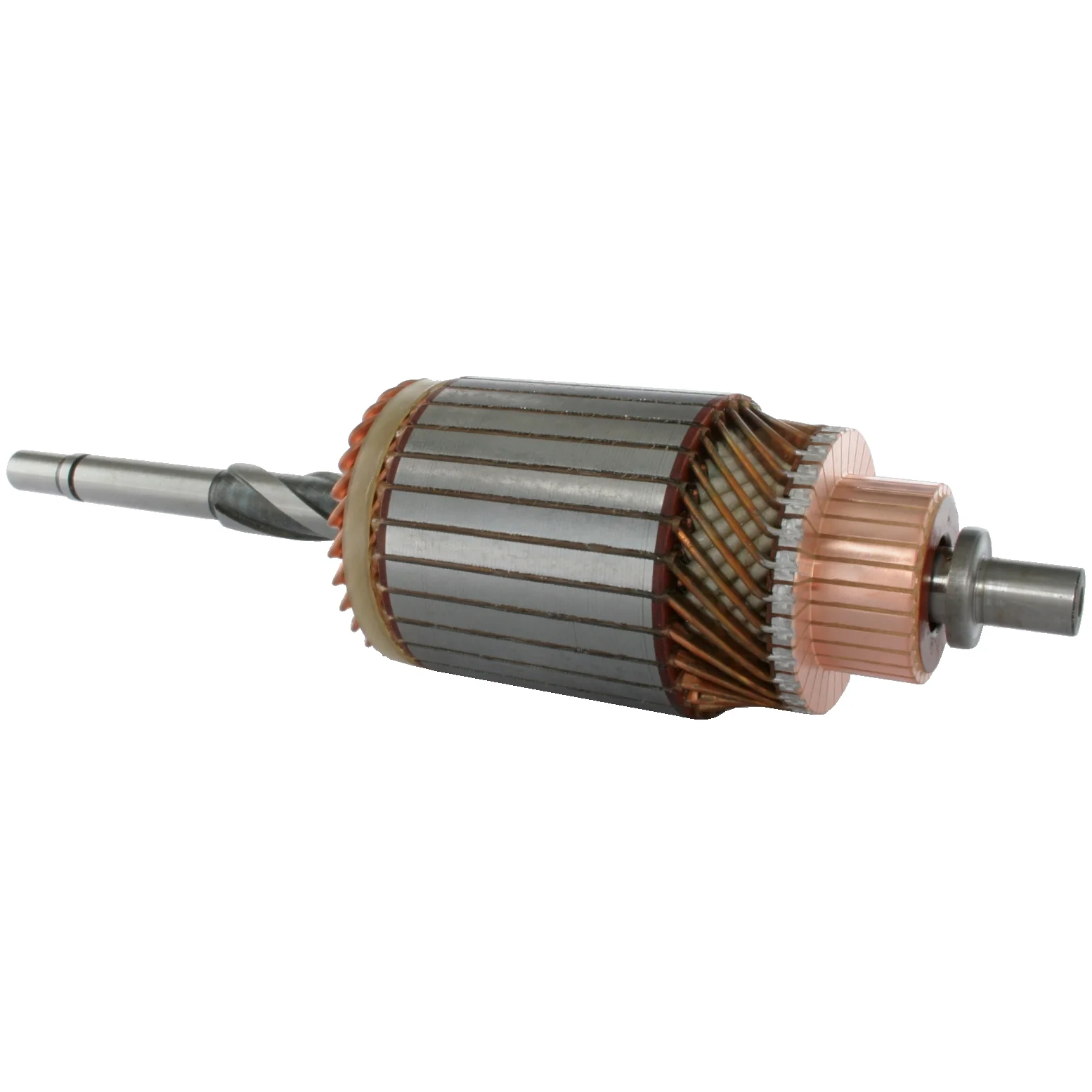

Armature / Rotor

Technical info:

Voltage: 9, kW: 1.4, Rotation: CW, Core dia.: 73.00

Description

Voltage: 9
kW: 1.4
Core diameter: 73.00
Shaft diameter / C.E.: 14.00
Shaft diameter / D.E. inside: 14.15
Shaft diameter / D.E. outside: 12.50
Shaft diameter: 18.90
Shaft length: 300.00
Number / splines: 3
Rotation: CW
Dist. / commutator: 27.40
Commutator diameter / bar lane: 42.20
Bar distance: 2.15
Bar cross distance: 44.60
Height / bar lane: 20.00
Number / bars: 29
Remarks: 12 V: HC-CARGO 130109.
