Article no.: F032133086

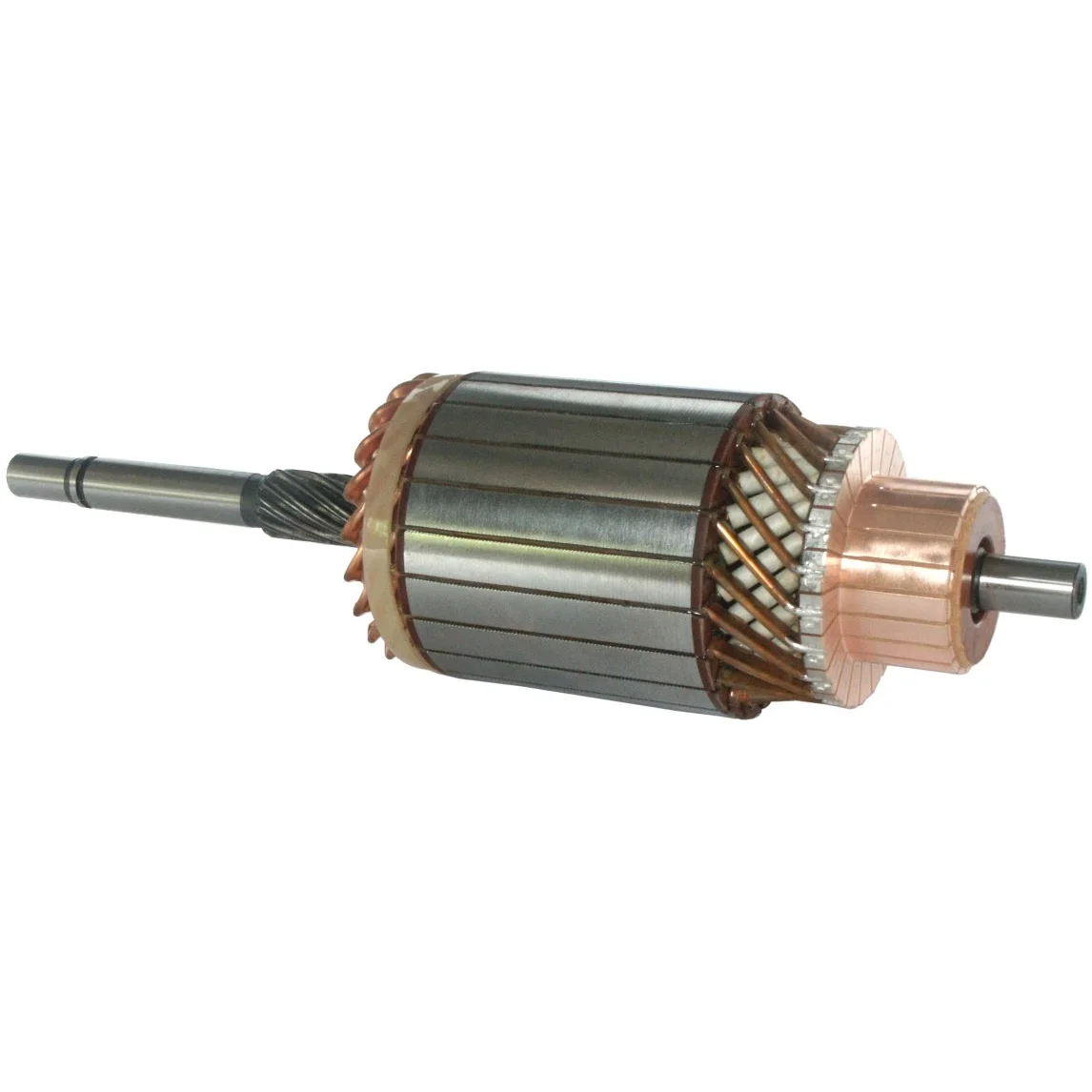

Armature / Rotor

Technical info:

Voltage: 9, kW: 2.4, Rotation: CW, Core diameter: 75.00

Description

Voltage: 9
kW: 2.4
Core diameter: 75.00
Shaft diameter / C.E.: 12.50
Shaft diameter / D.E. inside: 14.15
Shaft diameter / D.E. outside: 12.50
Shaft diameter: 18.85
Shaft length: 288.00
Number / splines: 10
Rotation: CW
Dis. / commutator: 21.20
Commutator diameter / bar lane: 42.20
Bar distance: 2.70
Bar cross distance: 43.60
Height / bar lane: 24.10
Number / bars: 21
Remarks: 12 V: HC-CARGO 130114.
