Article no.: F032133087

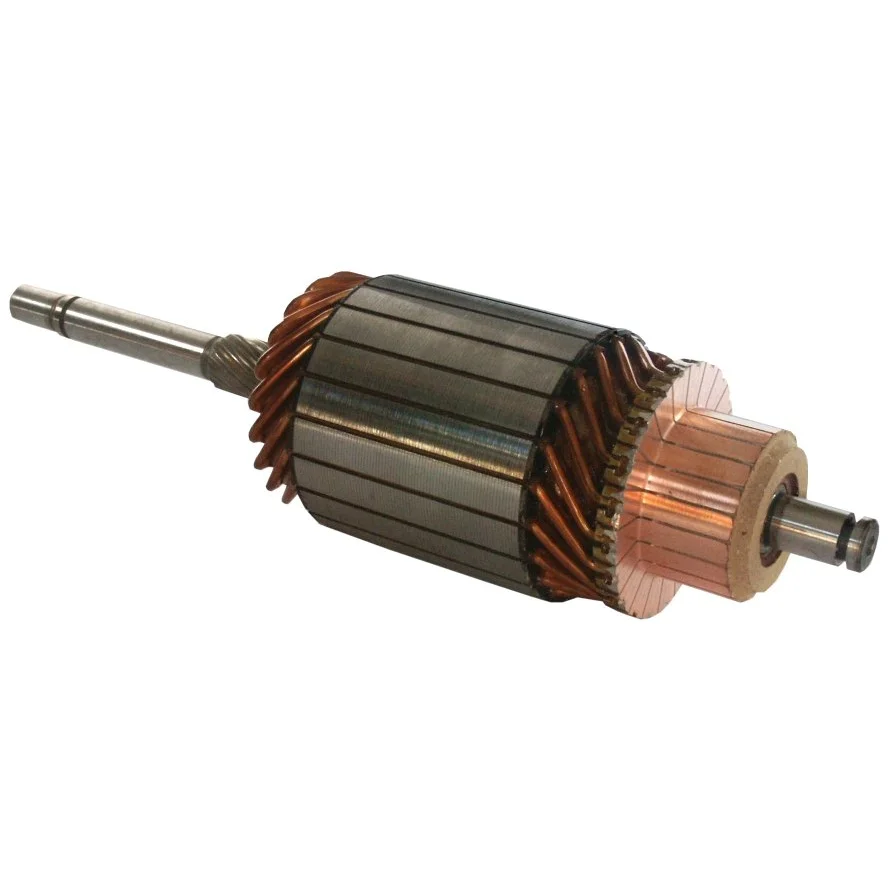

Armature / Rotor

Technical info:

Voltage: 9, kW: 2.4, Rotation: CW, Core diameter: 75.00

Description

Voltage: 9
kW: 2.4
Core diameter: 75.00
Shaft diameter/C.E.: 14.00
Shaft diameter/D.E. inside: 14.20
Shaft diameter/D.E. outside: 12.50
Shaft diameter: 18.90
Shaft length: 290.20
Number of splines: 10
Rotation: CW
Distance/commutator: 23.50
Commutator diameter/bar lane: 45.20
Bar distance: 3.60
Bar cross distance: 49.70
Height/bar lane: 21.40
Number of bars: 21
Remarks: 12 V: HC-CARGO 130115.

Files

  • Description
    Voltage: 9
    kW: 2.4
    Core diameter: 75.00
    Shaft diameter/C.E.: 14.00
    Shaft diameter/D.E. inside: 14.20
    Shaft diameter/D.E. outside: 12.50
    Shaft diameter: 18.90
    Shaft length: 290.20
    Number of splines: 10
    Rotation: CW
    Distance/commutator: 23.50
    Commutator diameter/bar lane: 45.20
    Bar distance: 3.60
    Bar cross distance: 49.70
    Height/bar lane: 21.40
    Number of bars: 21
    Remarks: 12 V: HC-CARGO 130115.

    Files
