Article no.: F032133090

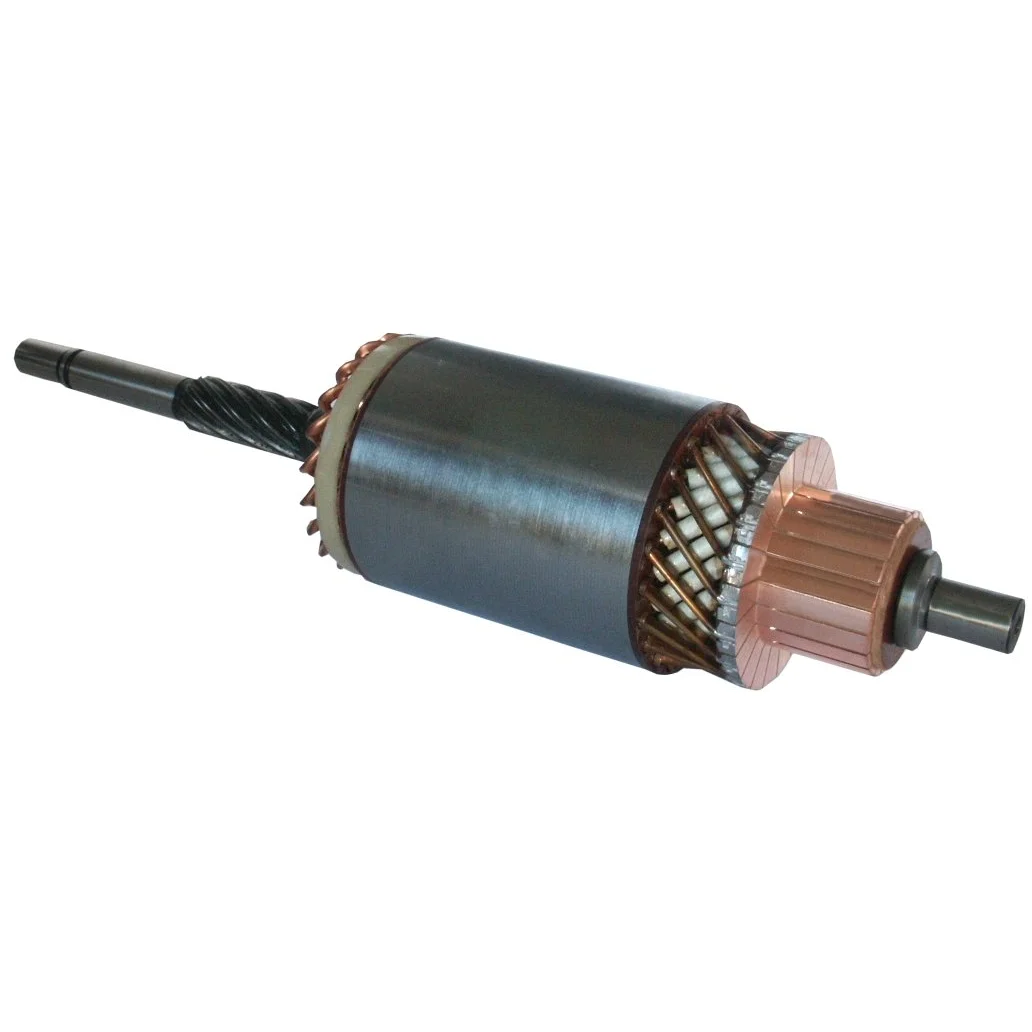

Armature / Rotor

Technical info:

Voltage: 9, kW: 3.2, Rotation: CW, Core diameter: 73.00

Description

Voltage: 9
kW: 3.2
Core diameter: 73.00
Shaft diameter / C.E.: 14.00
Shaft diameter / D.E. inside: 14.15
Shaft diameter / D.E. outside: 12.50
Shaft diameter: 18.85
Shaft length: 332.00
Number / splines: 10
Rotation: CW
Distance / commutator: 27.40
Commutator diameter / bar lane: 42.10
Height / bar lane: 29.00
Number / bars: 21
Remarks: 12 V: HC-CARGO 131130.
