Article no.: F032133098

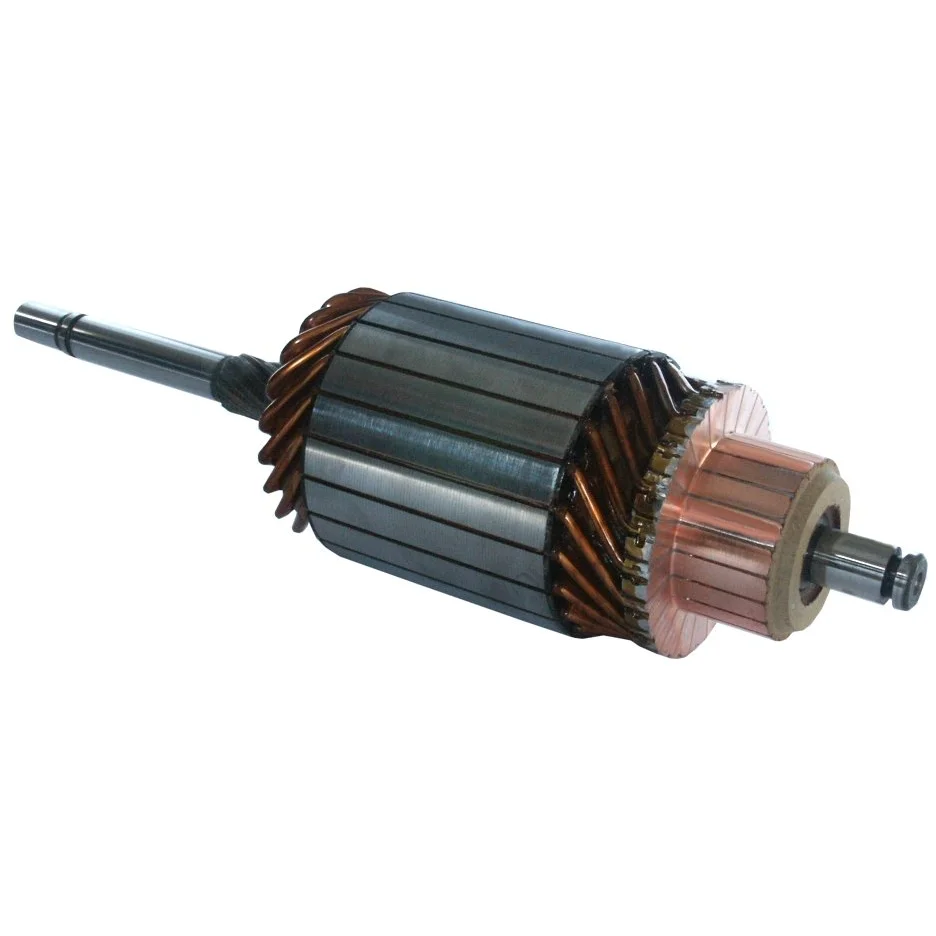

Armature / Rotor

Technical info:

Voltage: 9, kW: 2.0/2.4/2.7, Rotation: CW, Core diameter: 75.00

Description

Voltage: 9
kW: 2.0/2.4/2.7
Core diameter: 75.00
Shaft diameter/C.E.: 14.00
Shaft diameter/D.E. inside: 14.15
Shaft diameter/D.E. outside: 12.50
Shaft diameter: 18.90
Shaft length: 290.50
Number/splines: 10
Rotation: CW
Dist./commutator: 23.20
Commutator diameter/bar lane: 45.20
Bar distance: 2.80
Bar cross distance: 50.00
Height/bar lane: 21.40
Number/bars: 21
Remarks: 12 V: HC-CARGO 132158.
