Article no.: F032133368

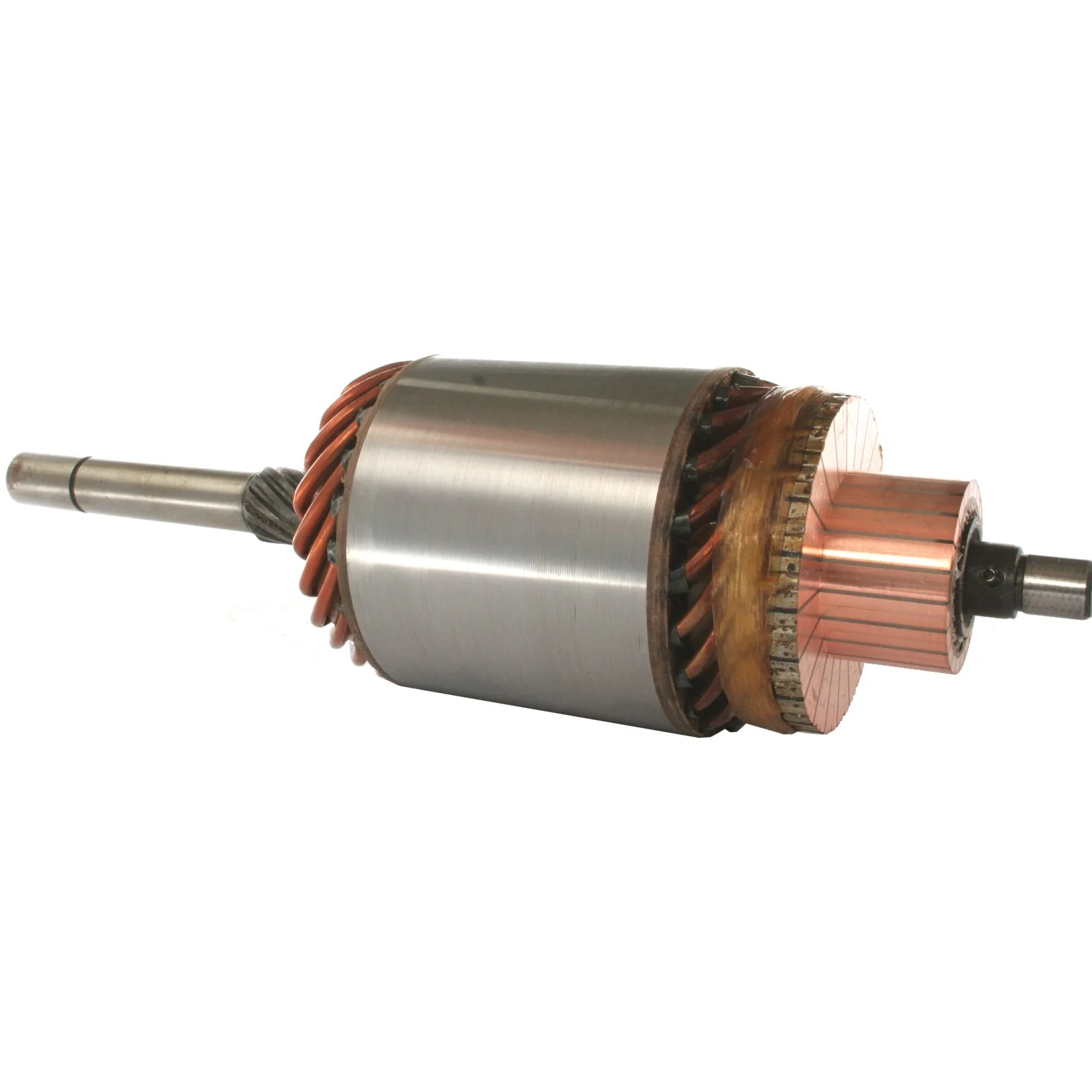

Armature / Rotor

Technical info:

Voltage: 12, kW: 2.8, Rotation: CW, Core diameter: 84.00

Description

Voltage: 12
kW: 2.8
Core diameter: 84.00
Shaft diameter / C.E.: 12.70
Shaft diameter / D.E. inside: 17.00
Shaft diameter / D.E. outside: 17.00
Shaft diameter: 28.40
Shaft length: 302.40
Number / splines: 12
Rotation: CW
Distance / commutator: 25.10
Commutator diameter / bar lane: 42.80
Bar distance: 3.65
Bar cross distance: 54.20
Height / bar lane: 25.00
Number / bars: 21
Servicing: M127
Remarks: Can only be used w / drive: HC-CARGO 130452.

Files

  • OEM
    F032133368, SAR0016, tjb111, tjb113, tjb114, 26253757, 54268382, 54292376, 054292376010

  • Normalised article numbler
    f032133368, sa4026s, sar0016, tjb111, tjb113, tjb114, wsa5515, 619205, 26253757, 54268382, 54292376, 054292376010
  • Description
    Voltage: 12
    kW: 2.8
    Core diameter: 84.00
    Shaft diameter / C.E.: 12.70
    Shaft diameter / D.E. inside: 17.00
    Shaft diameter / D.E. outside: 17.00
    Shaft diameter: 28.40
    Shaft length: 302.40
    Number / splines: 12
    Rotation: CW
    Distance / commutator: 25.10
    Commutator diameter / bar lane: 42.80
    Bar distance: 3.65
    Bar cross distance: 54.20
    Height / bar lane: 25.00
    Number / bars: 21
    Servicing: M127
    Remarks: Can only be used w / drive: HC-CARGO 130452.

    Files

  • Suitable for these vehicles

    • OEM
      F032133368, SAR0016, tjb111, tjb113, tjb114, 26253757, 54268382, 54292376, 054292376010

    • Normalised article numbler
      f032133368, sa4026s, sar0016, tjb111, tjb113, tjb114, wsa5515, 619205, 26253757, 54268382, 54292376, 054292376010
