Article no.: F032133515

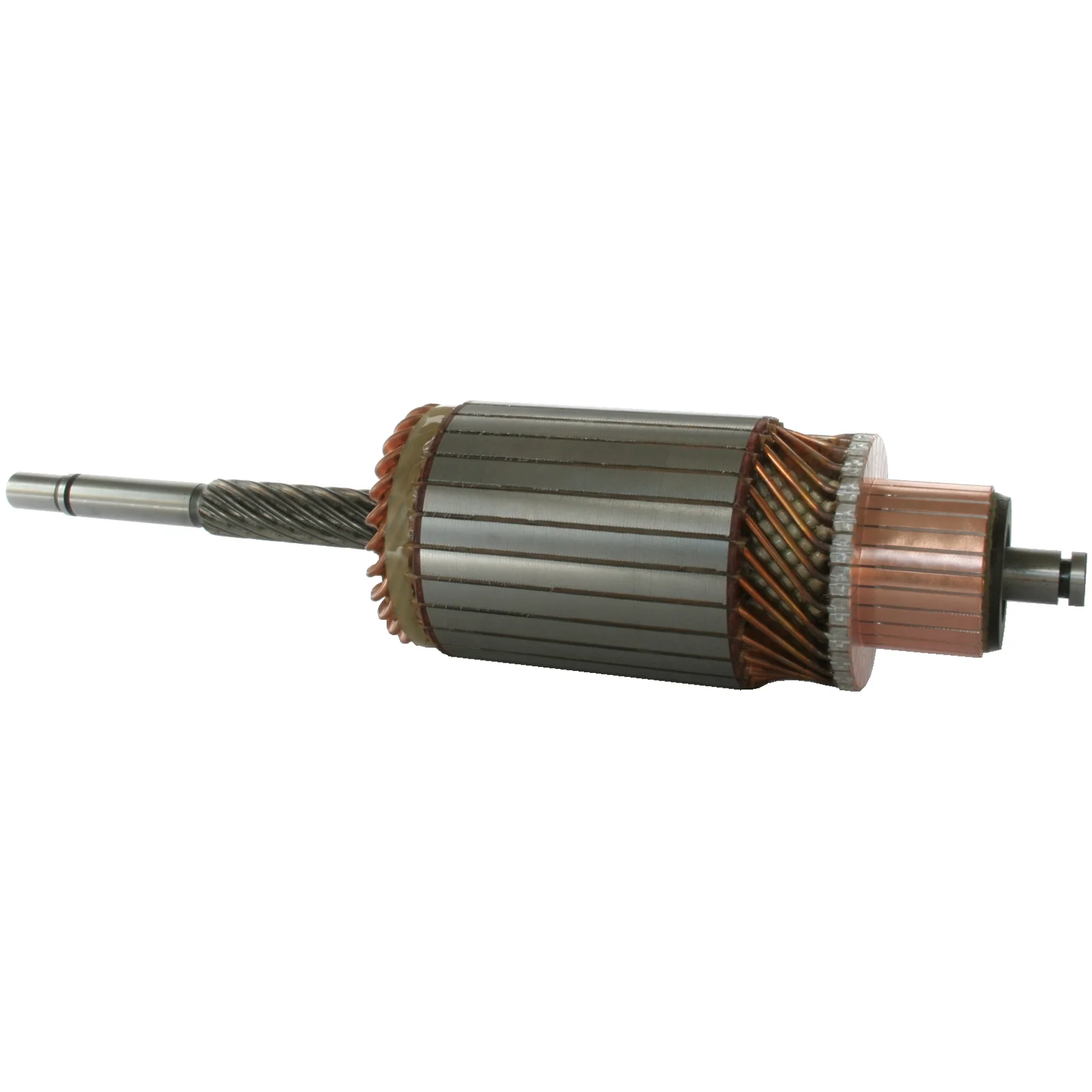

Armature / Rotor

Technical info:

Voltage: 9, kW: 3.0, Rotation: CW, Core diameter: 75.00

Description

Voltage: 9
kW: 3.0
Core diameter: 75.00
Shaft diameter/Centering End: 14.00
Shaft diameter/Drive End inside: 14.15
Shaft diameter/Drive End outside: 12.50
Shaft diameter: 18.85
Shaft length: 333.00
Number of splines: 10
Rotation: clockwise
Distance/commutator: 20.00
Commutator diameter/bar lane: 45.10
Bar distance: 2.30
Bar cross distance: 46.20
Height/bar lane: 30.30
Number of bars: 27
Remarks: 12 V: HC-CARGO 130319.
