Article no.: F032133845

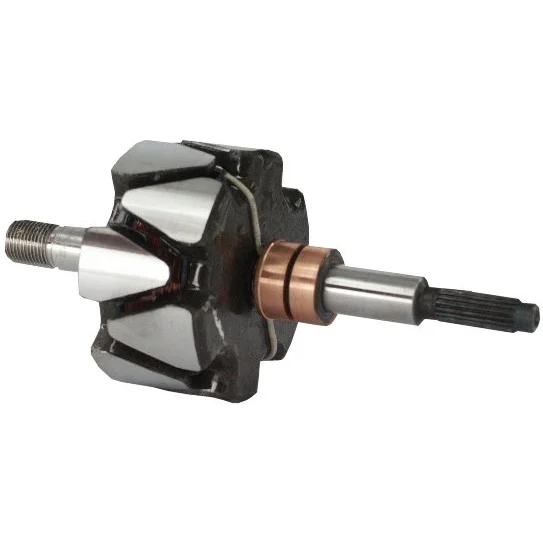

Armature / Rotor

Technical info:

Voltage: 14, Amps: 55, Rotation: CW, OD mm: 89.50

Description

Voltage: 14
Amp: 55
OD mm: 89.50
Height mm: 50.00
Radiator fan: w/o
Rotation: CW
Total length mm: 202.00
Shaft dia.: 17.00
Splines: 18
Thread size: 9/16" UNF
Thread length mm: 22.50
Windings: 400
Servicing: A127
Remarks: Shaft: HC-CARGO 135244. Nut: HC-CARGO 135049.
