Article no.: F032133850

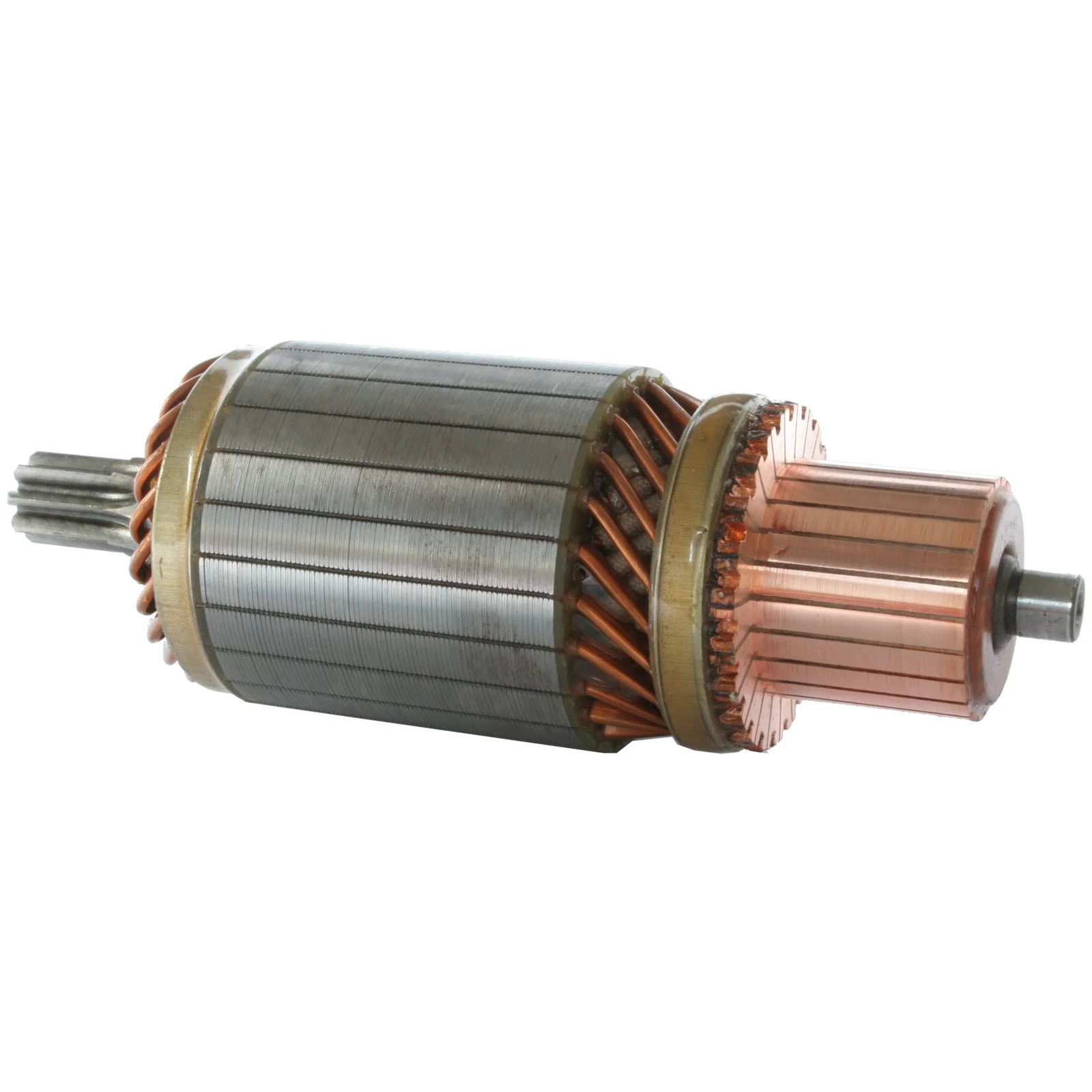

Armature / Rotor

Technical info:

Voltage: 12, kW: N/A, No./teeth: 8, Rotation: CW/CCW

Description

Voltage: 12
kW: N/A
Core diameter: 60.10
Shaft diameter / C.E.: 10.00
Shaft diameter / D.E. inside: 17.00
Shaft length: 177.70
Rotation: CW/CCW
Number / teeth: 8
Distance / commutator: 10.70
Commutator diameter / bar lane: 36.50
Bar distance: 2.10
Bar cross distance: 41.00
Number / bars: 23
Servicing: 28MT

Files

  • OEM
    D4161, F032133850, 10456466

  • Normalised article numbler
    am7051, d4161, f032133850, f042040089, f042040090, f042s40089, f042s40090, sa1009, wsa1545, 618400, 10456466
  • Description
    Voltage: 12
    kW: N/A
    Core diameter: 60.10
    Shaft diameter / C.E.: 10.00
    Shaft diameter / D.E. inside: 17.00
    Shaft length: 177.70
    Rotation: CW/CCW
    Number / teeth: 8
    Distance / commutator: 10.70
    Commutator diameter / bar lane: 36.50
    Bar distance: 2.10
    Bar cross distance: 41.00
    Number / bars: 23
    Servicing: 28MT

    Files

  • Suitable for these vehicles

    • OEM
      D4161, F032133850, 10456466

    • Normalised article numbler
      am7051, d4161, f032133850, f042040089, f042040090, f042s40089, f042s40090, sa1009, wsa1545, 618400, 10456466
