Article no.: F032133955

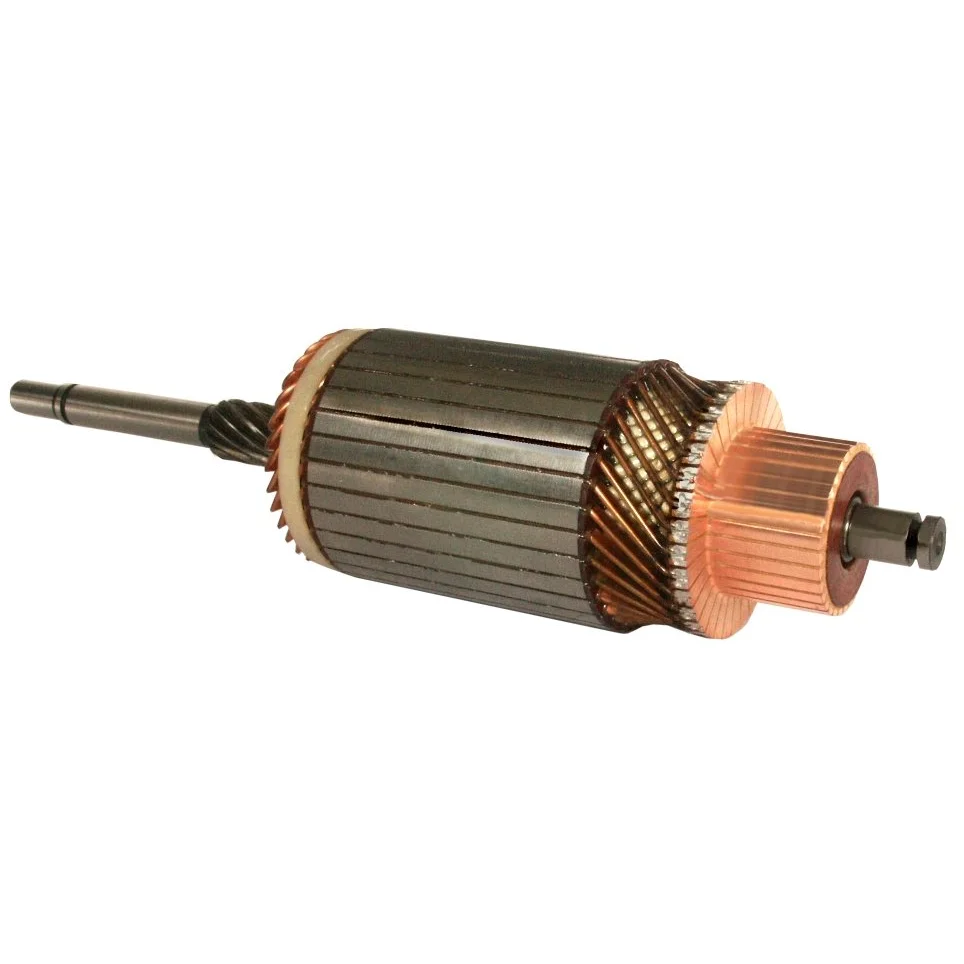

Armature / Rotor

Technical info:

Voltage: 12, kW: 3.5, Rotation: CW, Core dia.: 75.00

Description

Voltage: 12
kW: 3.5
Core diameter: 75.00
Shaft diameter/C.E.: 14.00
Shaft diameter/D.E. inside: 14.10
Shaft diameter/D.E. outside: 12.50
Shaft diameter: 19.90
Shaft length: 317.50
Number of splines: 12
Rotation: CW
Armature/commutator: 21.80
Commutator diameter/bar lane: 46.10
Bar distance: 2.00
Bar cross distance: 46.80
Height/bar lane: 29.80
Number of bars: 33

Files

  • Description
    Voltage: 12
    kW: 3.5
    Core diameter: 75.00
    Shaft diameter/C.E.: 14.00
    Shaft diameter/D.E. inside: 14.10
    Shaft diameter/D.E. outside: 12.50
    Shaft diameter: 19.90
    Shaft length: 317.50
    Number of splines: 12
    Rotation: CW
    Armature/commutator: 21.80
    Commutator diameter/bar lane: 46.10
    Bar distance: 2.00
    Bar cross distance: 46.80
    Height/bar lane: 29.80
    Number of bars: 33

    Files

  • Suitable for these vehicles
