Article no.: F032134285

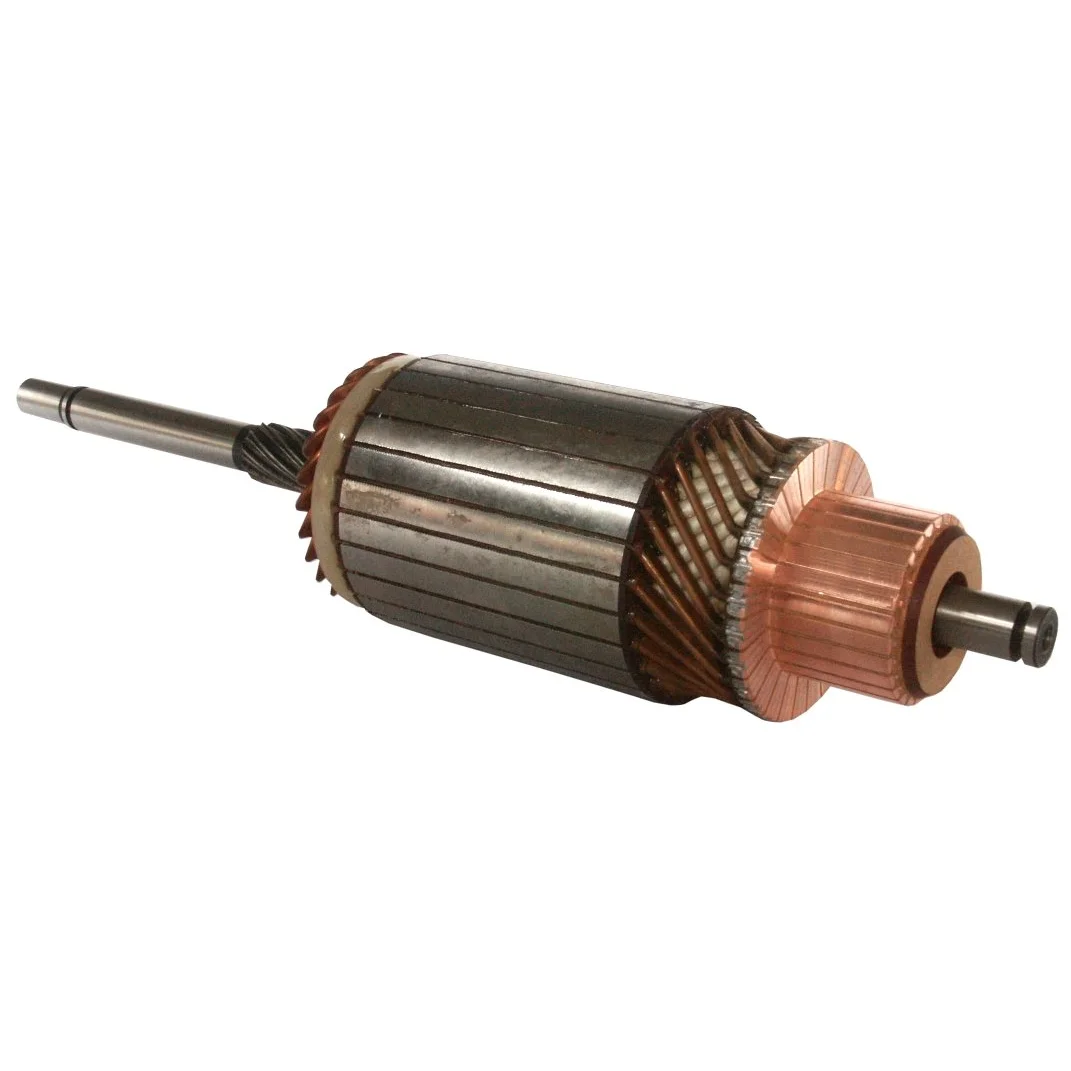

Armature / Rotor

Technical info:

Voltage: 9, kW: 3.0, Rotation: CW, Core diameter: 75.00

Description

Voltage: 9
kW: 3.0
Core diameter: 75.00
Shaft diameter/C.E.: 14.00
Shaft diameter/D.E. inside: 14.15
Shaft diameter/D.E. outside: 12.50
Shaft diameter: 18.85
Shaft length: 337.00
Number of/pulleys: 10
Rotation: clockwise
Distance/armature: 22.80
Armature diameter/bar lane: 45.20
Bar distance: 3.50
Bar cross distance: 45.90
Height/bar lane: 30.00
Number of/bars: 21
Remarks: 12 V: HC-CARGO 131075.

Files

  • Description
    Voltage: 9
    kW: 3.0
    Core diameter: 75.00
    Shaft diameter/C.E.: 14.00
    Shaft diameter/D.E. inside: 14.15
    Shaft diameter/D.E. outside: 12.50
    Shaft diameter: 18.85
    Shaft length: 337.00
    Number of/pulleys: 10
    Rotation: clockwise
    Distance/armature: 22.80
    Armature diameter/bar lane: 45.20
    Bar distance: 3.50
    Bar cross distance: 45.90
    Height/bar lane: 30.00
    Number of/bars: 21
    Remarks: 12 V: HC-CARGO 131075.

    Files

  • Suitable for these vehicles
