Article no.: F032134736

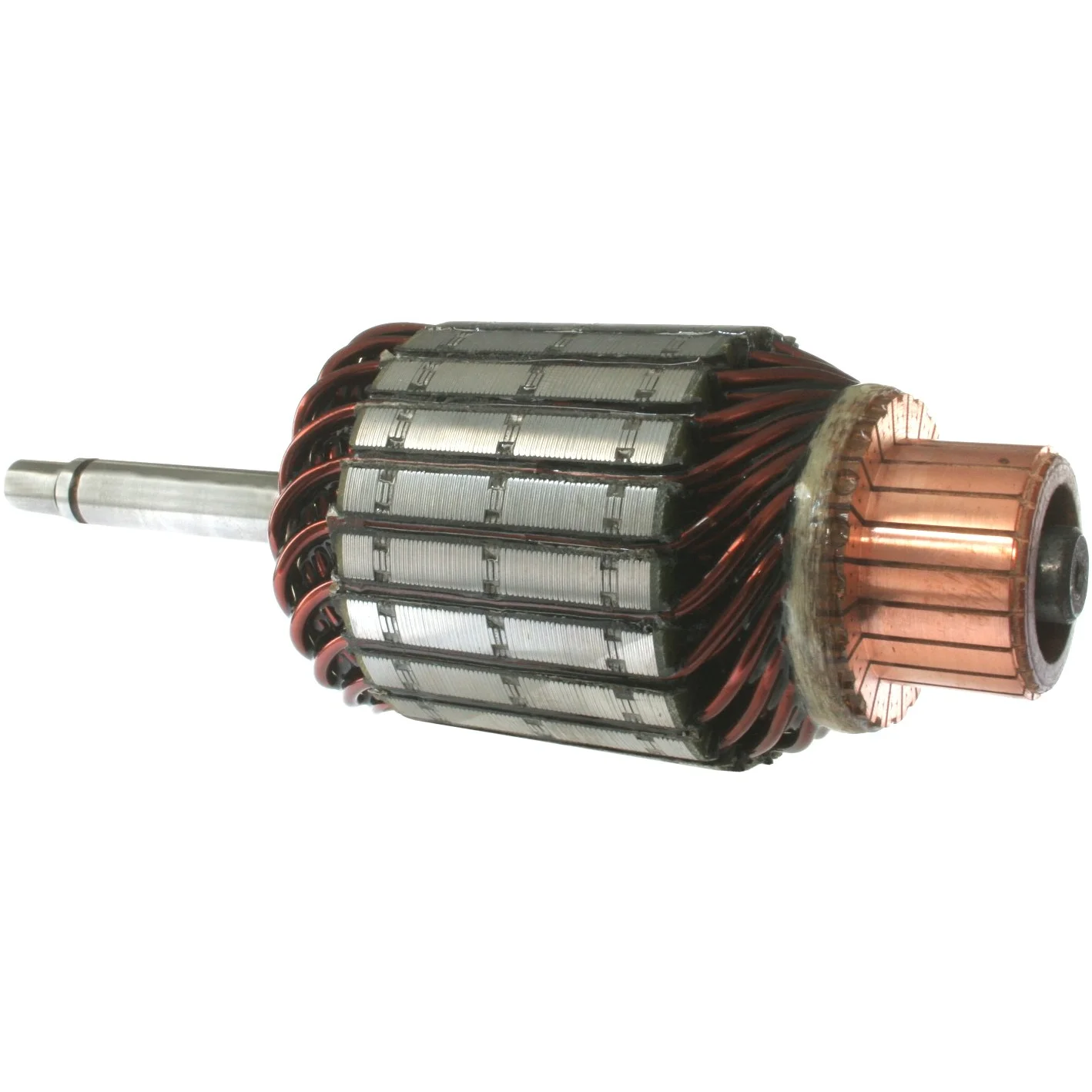

Armature / Rotor

Technical info:

Voltage: 12, kW: 0.8, Rotation: CW, Core diameter: 60.00

Description

Voltage: 12
kW: 0.8
Core dia.: 60.00
Shaft dia./C.E.: 12.00
Shaft dia./D.E. inside: 12.00
Shaft dia./D.E. outside: 10.00
Shaft length: 183.10
No./splines: 8
Rotation: CW
Dist./commutator: 3.00
Commutator dia./bar lane: 32.60
Bar dist.: 2.30
Bar cross dist.: 32.20
Height/bar lane: 18.50
No./bars: 21

Files

  • OEM
    e356-18-x60, F032134736, f8b1-18-x60, lth107, m106t05770, m106t05771, m106t07472, m106t07771, m106t50271, m106t52571, m106x50271, m106x50871, m106x52571, m106x52771, m106x52871, md607924, md618443, SAAR6000, 2EM0689H, 23310-42l10, 36150-11150

  • Normalised article numbler
    e35618x60, f032134736, f8b118x60, lth107, m106t05770, m106t05771, m106t07472, m106t07771, m106t50271, m106t52571, m106x50271, m106x50871, m106x52571, m106x52771, m106x52871, md607924, md618443, sa5009, saar6000, wsa19903, 2em0689h, 2331042l10, 3615011150
  • Description
    Voltage: 12
    kW: 0.8
    Core dia.: 60.00
    Shaft dia./C.E.: 12.00
    Shaft dia./D.E. inside: 12.00
    Shaft dia./D.E. outside: 10.00
    Shaft length: 183.10
    No./splines: 8
    Rotation: CW
    Dist./commutator: 3.00
    Commutator dia./bar lane: 32.60
    Bar dist.: 2.30
    Bar cross dist.: 32.20
    Height/bar lane: 18.50
    No./bars: 21

    Files

  • Suitable for these vehicles

    • OEM
      e356-18-x60, F032134736, f8b1-18-x60, lth107, m106t05770, m106t05771, m106t07472, m106t07771, m106t50271, m106t52571, m106x50271, m106x50871, m106x52571, m106x52771, m106x52871, md607924, md618443, SAAR6000, 2EM0689H, 23310-42l10, 36150-11150

    • Normalised article numbler
      e35618x60, f032134736, f8b118x60, lth107, m106t05770, m106t05771, m106t07472, m106t07771, m106t50271, m106t52571, m106x50271, m106x50871, m106x52571, m106x52771, m106x52871, md607924, md618443, sa5009, saar6000, wsa19903, 2em0689h, 2331042l10, 3615011150
